ANT-1771 Mini UAV, HD-SDI plus Composite, Low Latency H.264 HD Video Encoder or Decoder
Key Features
- 4 x Composite Streams or 1 x 1080p30 + 2 x D1 or 2 x 1080p15 or 2 x 720p30 or 2 x D1
- H.264 Micro Sized Video Encoder or Decoder with multiple simultaneous inputs can per streamed
- Low Latency 100ms with Neptune Player application
- Unicast, Multicast , UDP, MPEG-TS and RTSP Streams Supported
Product Overview

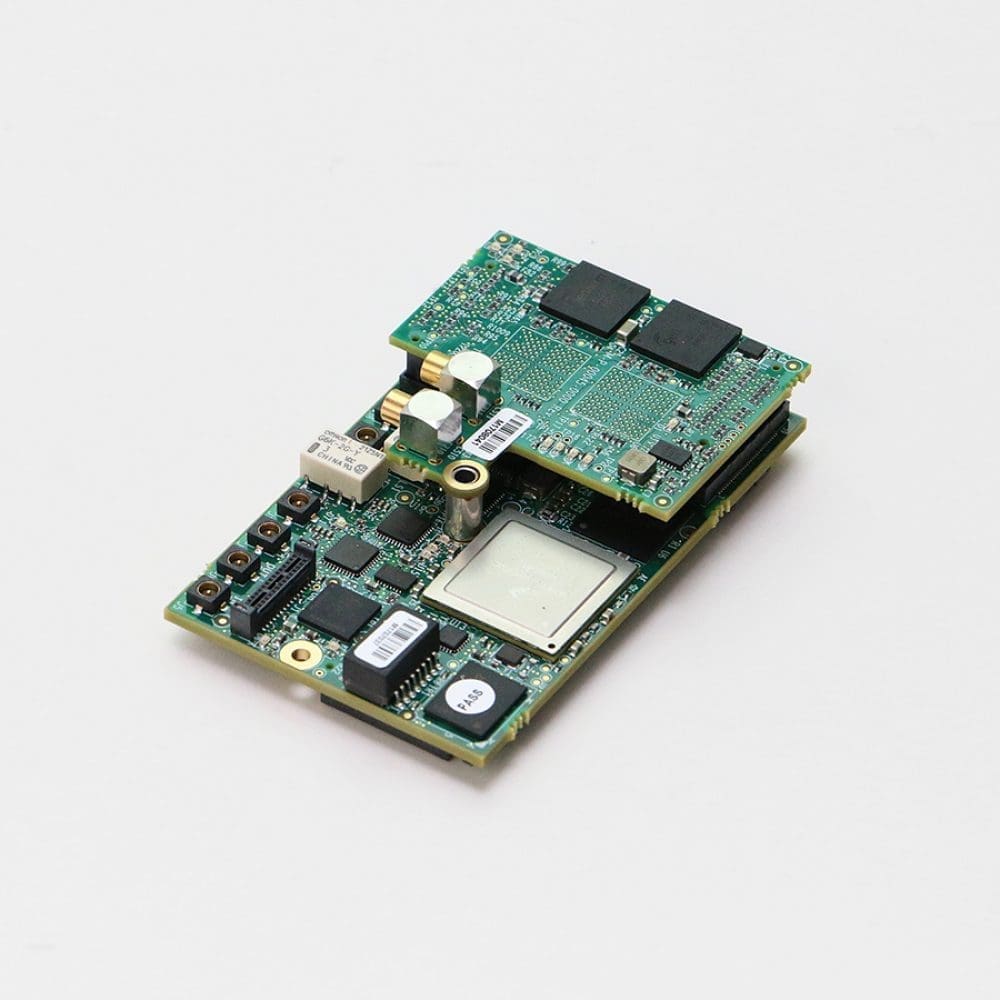

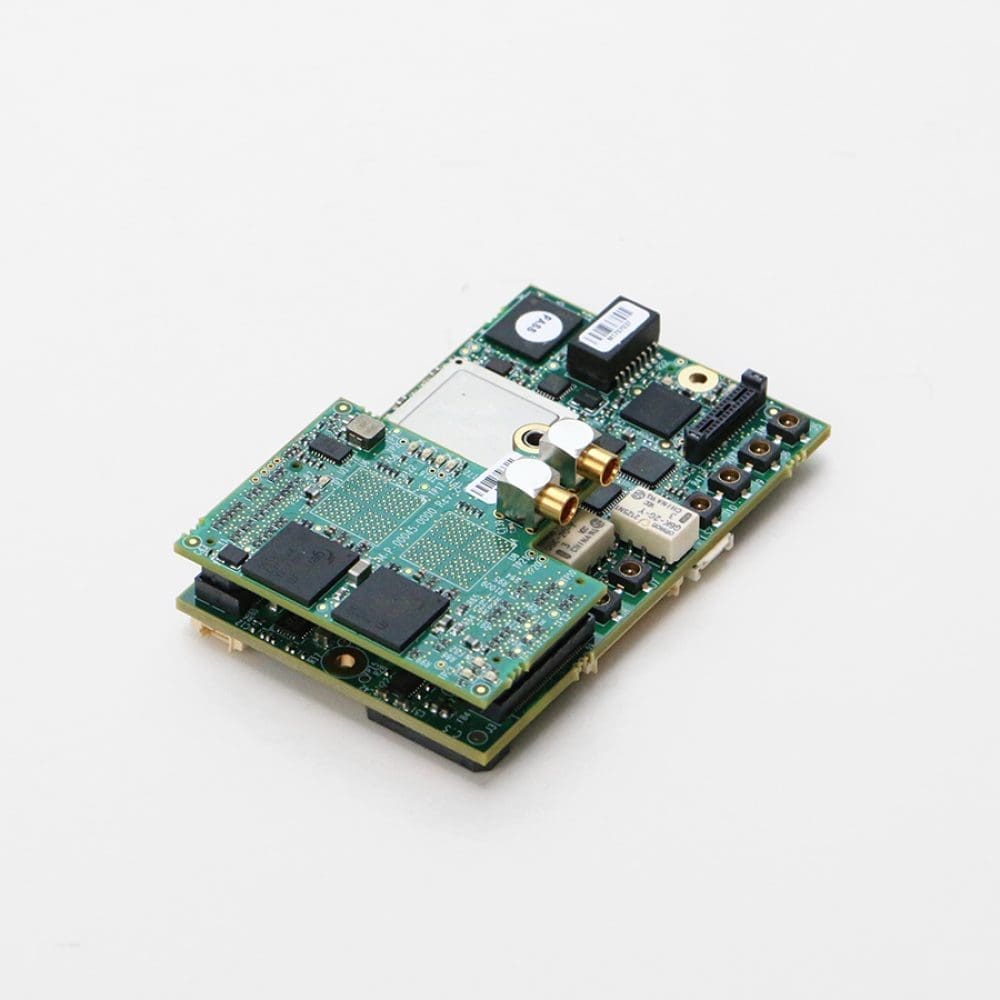

ANT-1771 Mini UAV, HD-SDI & Composite, Low Latency H.264 HD Video Encoder or Decoder, capable of 4 x Composite Streams or 1 x 1080p30 + 2 x D1 or 2 x 1080p15 or 2 x 720p30 or 2 x D1 using an IP LAN ethernet connection.
Supporting dual channel HD-SDI and quad composite video inputs the ANT-1771 can stream in both RTSP and MPEG TS formats over an Ethernet connection to the Drones / unmanned vehicle Radio link. Using a low latency player/ decoder video latency of approx 100mS is achieved in this small low weight module. The ANT-1771 can be configured to be an Encoder or a Decoder allowing for hardware to hardware low latency links. The UAV Mini also supports video plus audio streaming and multi channel Video support.
The input connections are 4 x Composite and 2 x HD-SDI and can vary in the combination of either 4 x Composite Streams or 1 x 1080p30 + 2 x D1 or 2 x 1080p15 or 2 x 720p30 or 2 x D1
The outputs connections are 4 x Composite and 2 x HD-SDI are capable of : 1x D1 / 2 x 720p60 / 2 x 1080p30 / 1 x 1080p60.
There is edge storage via SD Card / NAND Flash 2GB + USB OTG
Multiple streaming formats are supported such as Unicast, Multicast Broadcast, UDP, RTP and RTSP.
The ANT-1771 is powered by 5-30v or 3.3v DC and power consumption of 3w typical.
44.1 and 48KHz audio is supported with embedded audio HDMI supported.
RS232 serial 2 way control with alarm and sensor GPIO
Size: 80 x 50 x 23 mm
Weight: 65g
Operating temperature range is – 40c to +85 c.
- 1920 x 1080P30 Max Resolution plus 576i simultaneously
- Mini Size & Weight
- H.264 Encoder or Decoder
- 2 x HD-SDI & 4 x Composite Inputs
- On board recording and two way RS232
- Low latency player supplied
System | Mode | Encoder or Decoder |
System | Standards | RTSP, MPEG-TS |
System | Latency | <150mS (system dependant) |
Video | Compression | H.264 |
Video | Profile | Baseline |
Video | Frame Rate | 1-60fps |
Video | Bit Rate | 100kbs – 20mbps |
Video | Mode | GOP |
Video | Bit Rate Control | CBR, VBR |
Video | Min Resolution | 720 x 480 |
Video | Max Resolution | 1920 x 1080P30 |
Video | Number of Streams | 4 x Primary H.264 |
Video | Inputs | 2 x HD-DSI & 4 x Composite |
Video | Input Combinations | 1 x 1080p30 + 2 x D1 / 2 x 1080p15 / 2 x 720p30 / 2 x D1 |
Video | Outputs | 2 x HD-SDI & 4 x Composite |
Video | Output Combinations | 2x D1 / 2 x 720p60 / 2 x 1080p30 / 1 x 1080p60 |
Video | On Screen Display | English |
Audio | Mode | Simplex Stereo |
Audio | Compression | |
Audio | Sample Rate | |
Audio | Bit Rate | |
Audio | Streaming | |
Audio | Inputs | Microphone |
Audio | Outputs | Speaker |
Network | Interface | 10-100 Ethernet RJ45 |
Network | Protocols | IPv4, TCP, UDP, IGMP(Multicast),HTTP,RTSP,DNS |
Network | Security | N/A |
Network | Configuration | SDK, WEB |
Data | Type | Serial 2 Way |
Data | Interface | RS232 |
Data | Protocol | Clear |
Data | Alarm | GPIO |
Data | Sensor | GPIO |
Event | Sources | N/A |
Event | Actions | N/A |
Power | Supply | 3.3v (5-30v DC Option) |
Power | Adapter input volts | N/A |
Power | Adapter Output Voltage | N/A |
Power | Consumption | 5.4w |
Recording | Edge Storage | SD Card / NAND Flash 2GB |
Temperature | Operating Range | – 40c to +85 c |
Physical | Dimensions | 80 x 50 x 23 mm |
Physical | Weight | 65g |
Physical | Housing | PCB Only |
General | Certifications | RoHS |
General | Software | Neptune Player & IP Finder |
General | Warranty | 12 Months |
General | Remote | N/A |
General | Reset | Web or IP Finder |
Control & Set Up | Set Up | Web Interface API Document |
Control | API | |
Upgrade | Firmware Upgrade | |

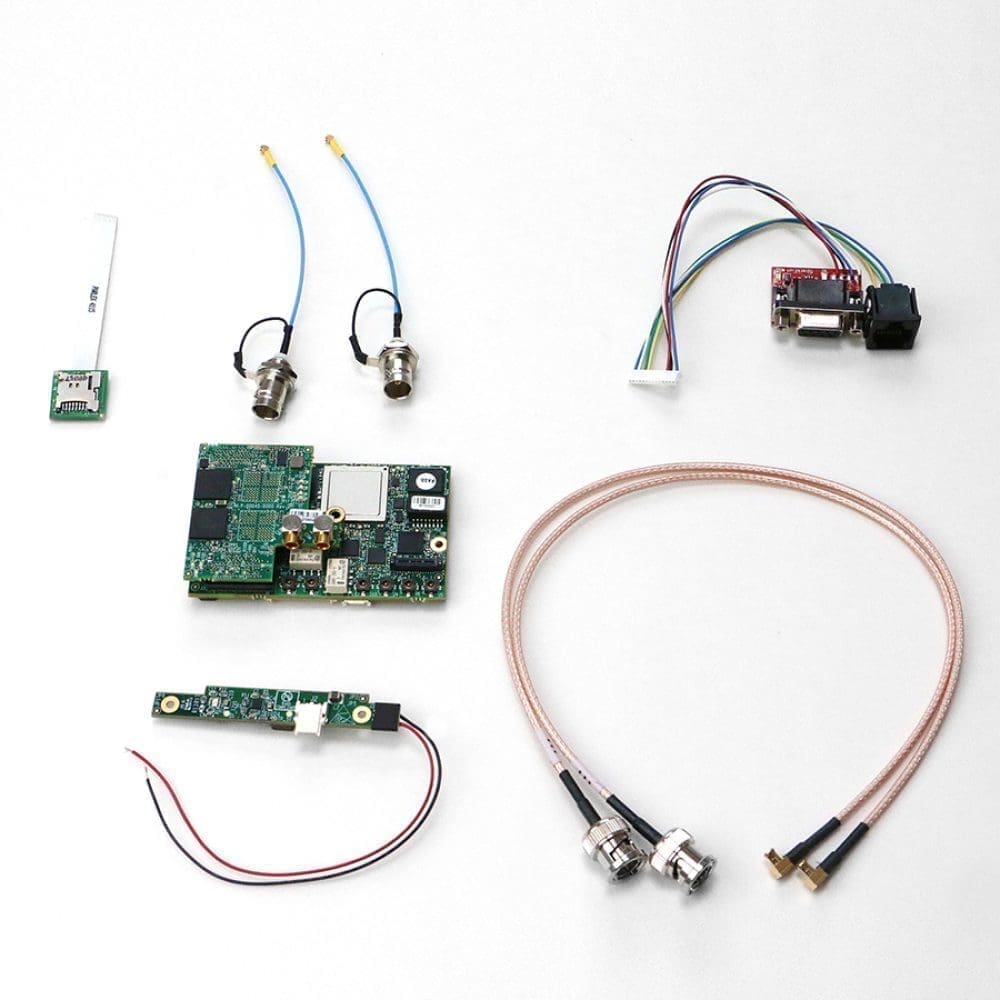

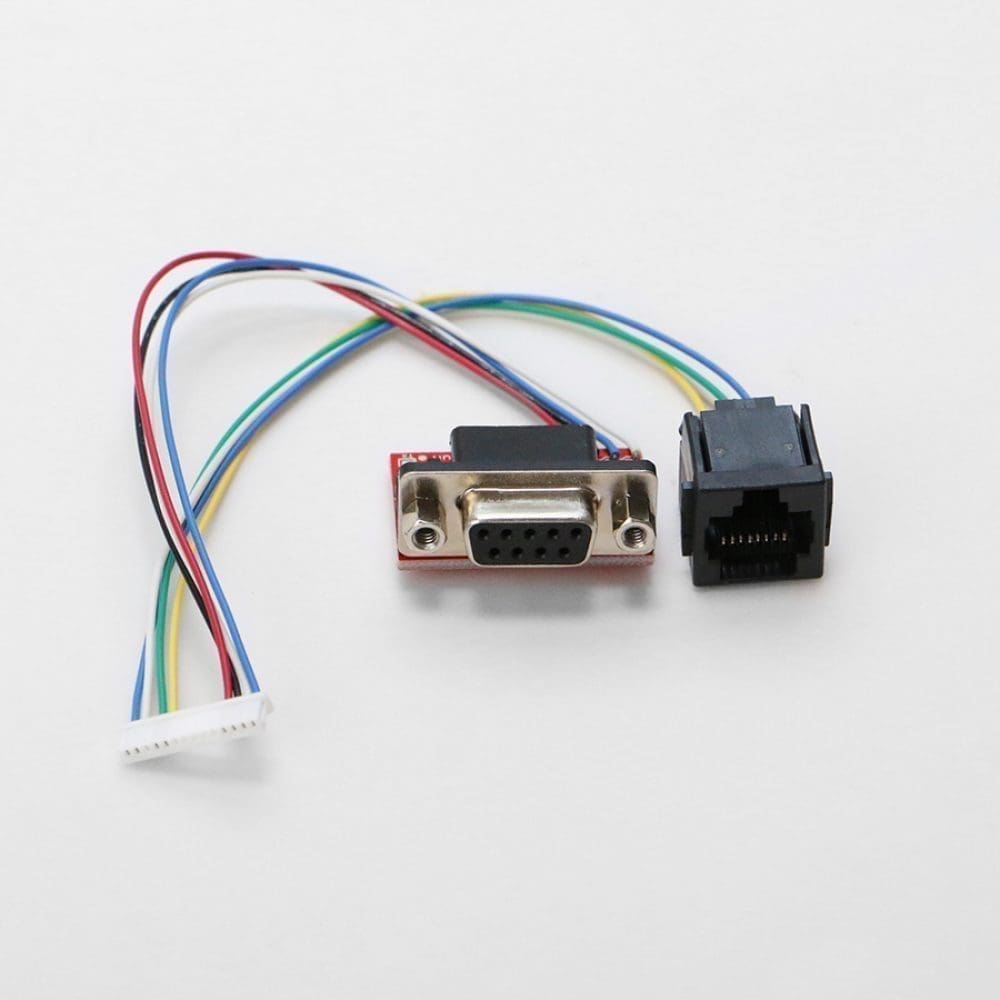

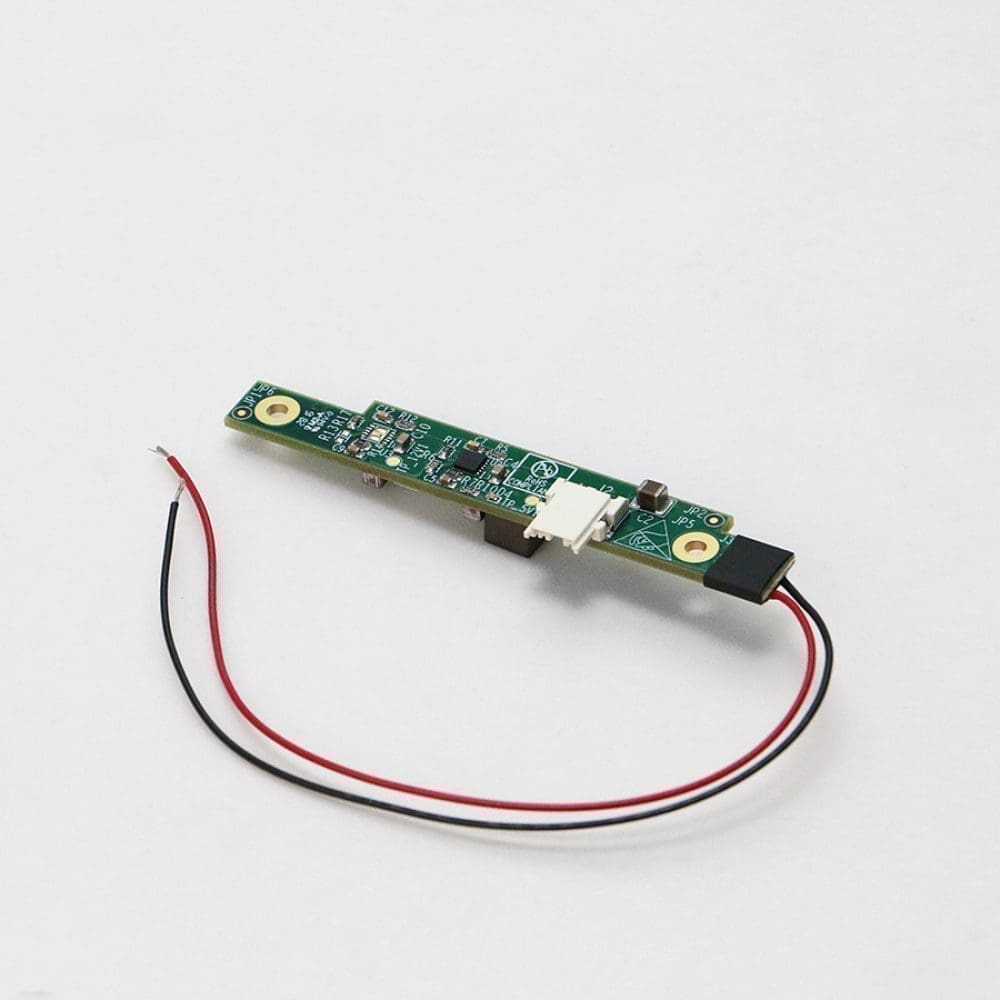

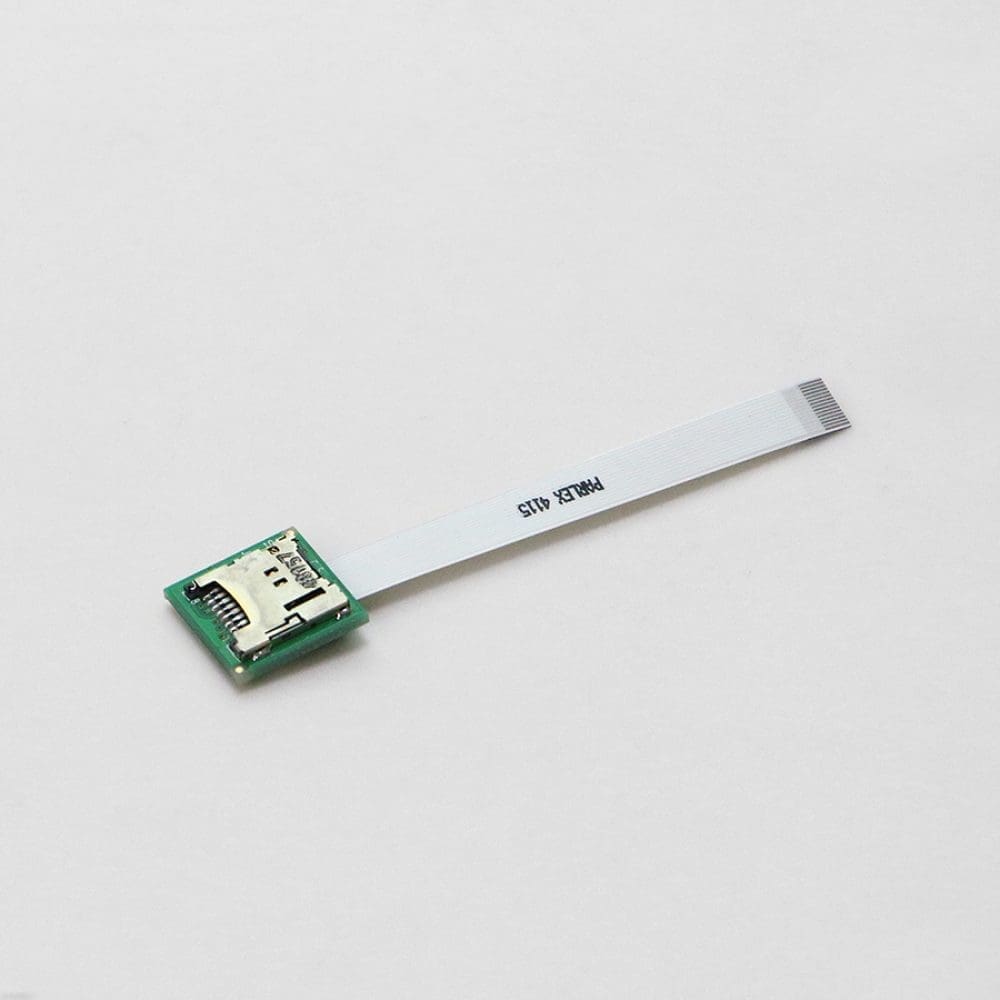

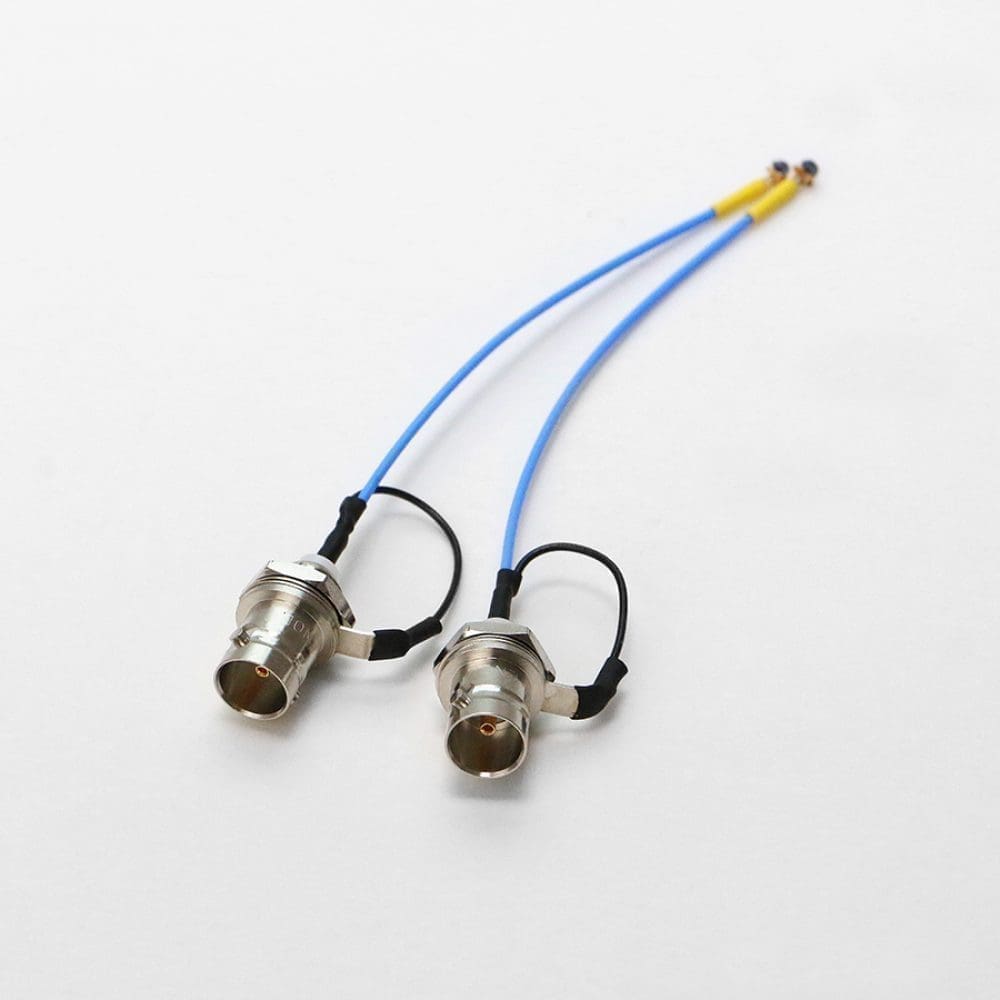

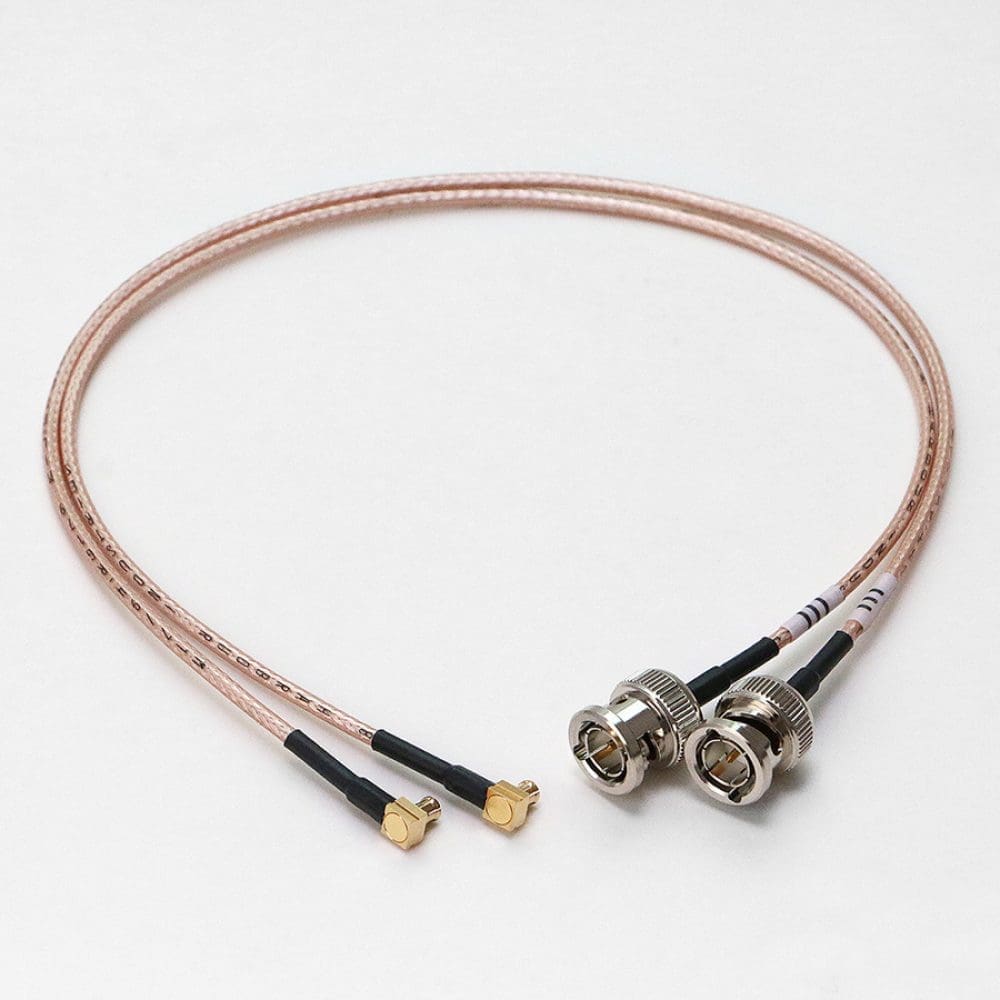

In the Box | Contents | PCB & Optional Leads |
Power Cable/adapter | N/A |
A few of the applications are:
- Encoding video in UAV / Robotic
- Unmanned vehicles / submarine
- Situational awareness
This product is not limited to the markets and applications described.
.
