ANT-1772 Micro UAV, HD-SDI & Composite, Low Latency H.264 HD Video Encoder or Decoder
Key Features
- 2 x Composite Streams or 1 x 1080p30 stream + 1 x Composite or 1 x 1080i50or60 stream + 1 x Composite
- H.264 Micro Sized Video Encoder or Decoder
- Low Latency 100ms with Neptune player application provided
- Unicast, Multicast Broadcast, UDP, RTP and RTSP Streams Supported

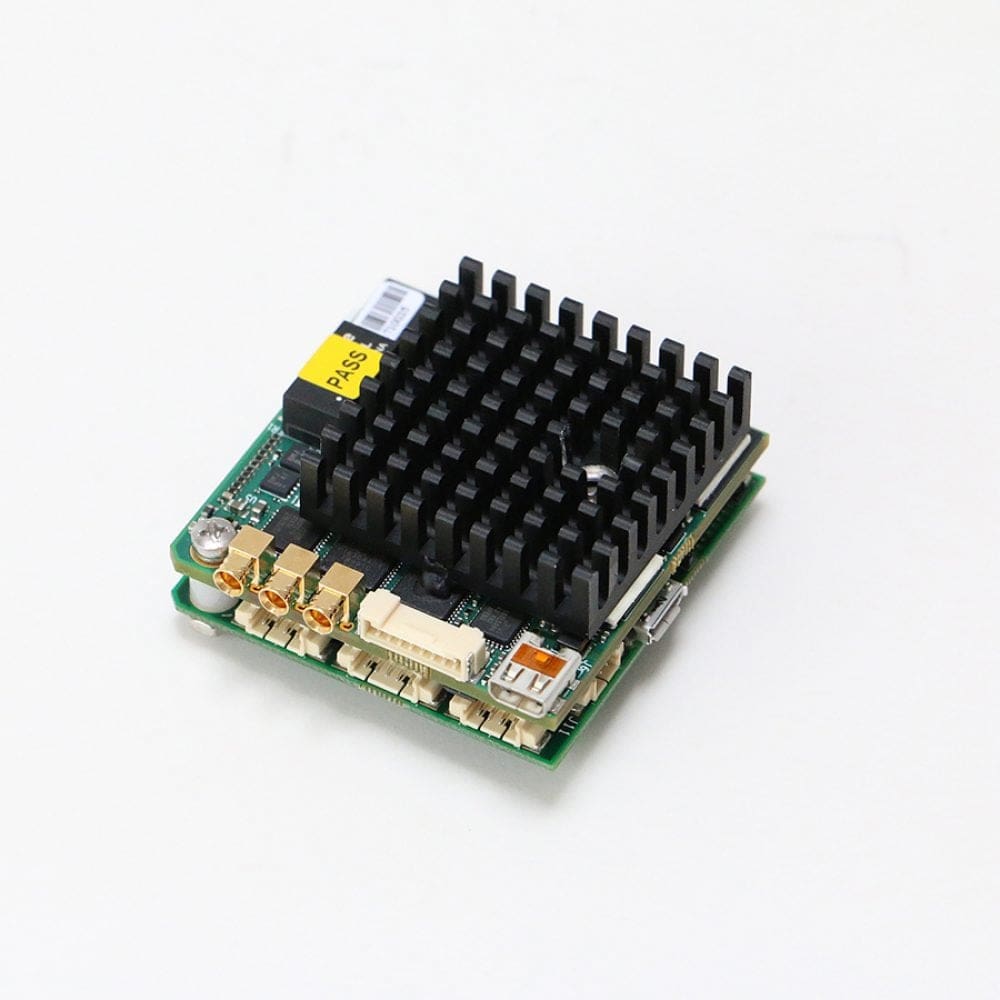

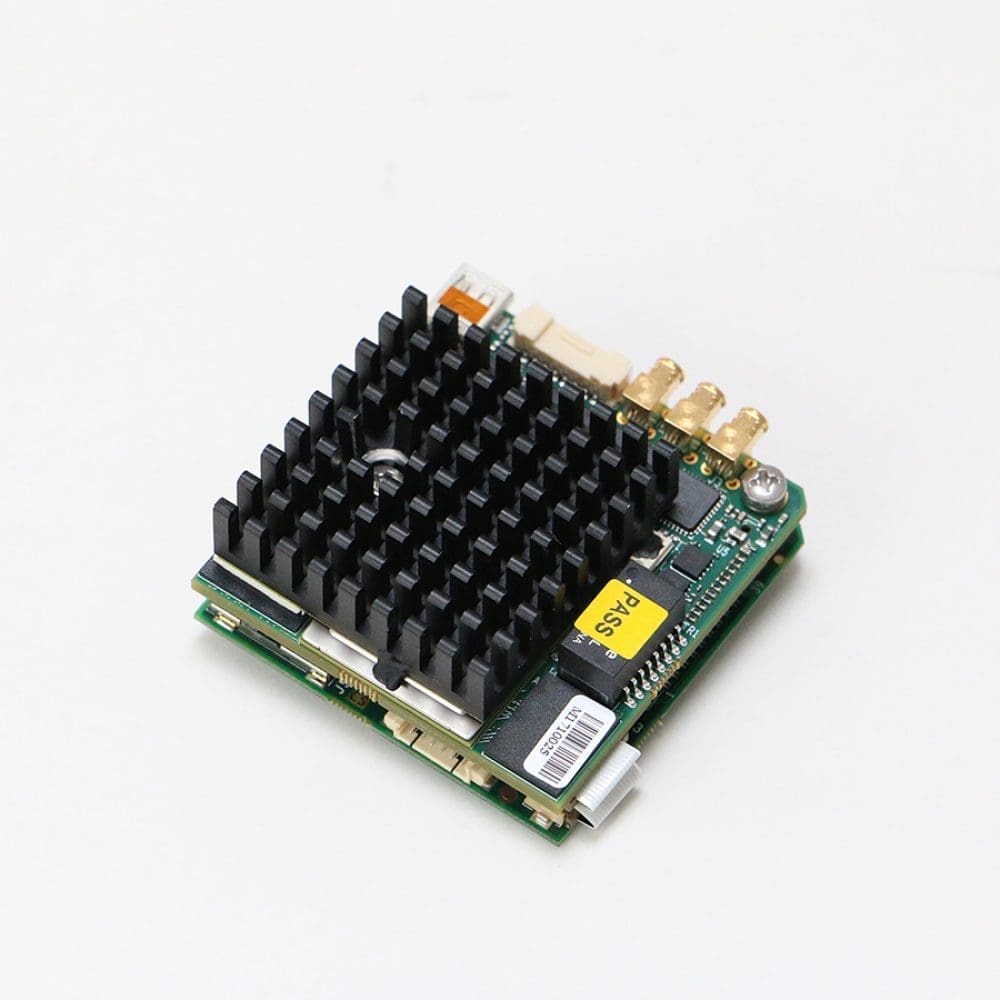

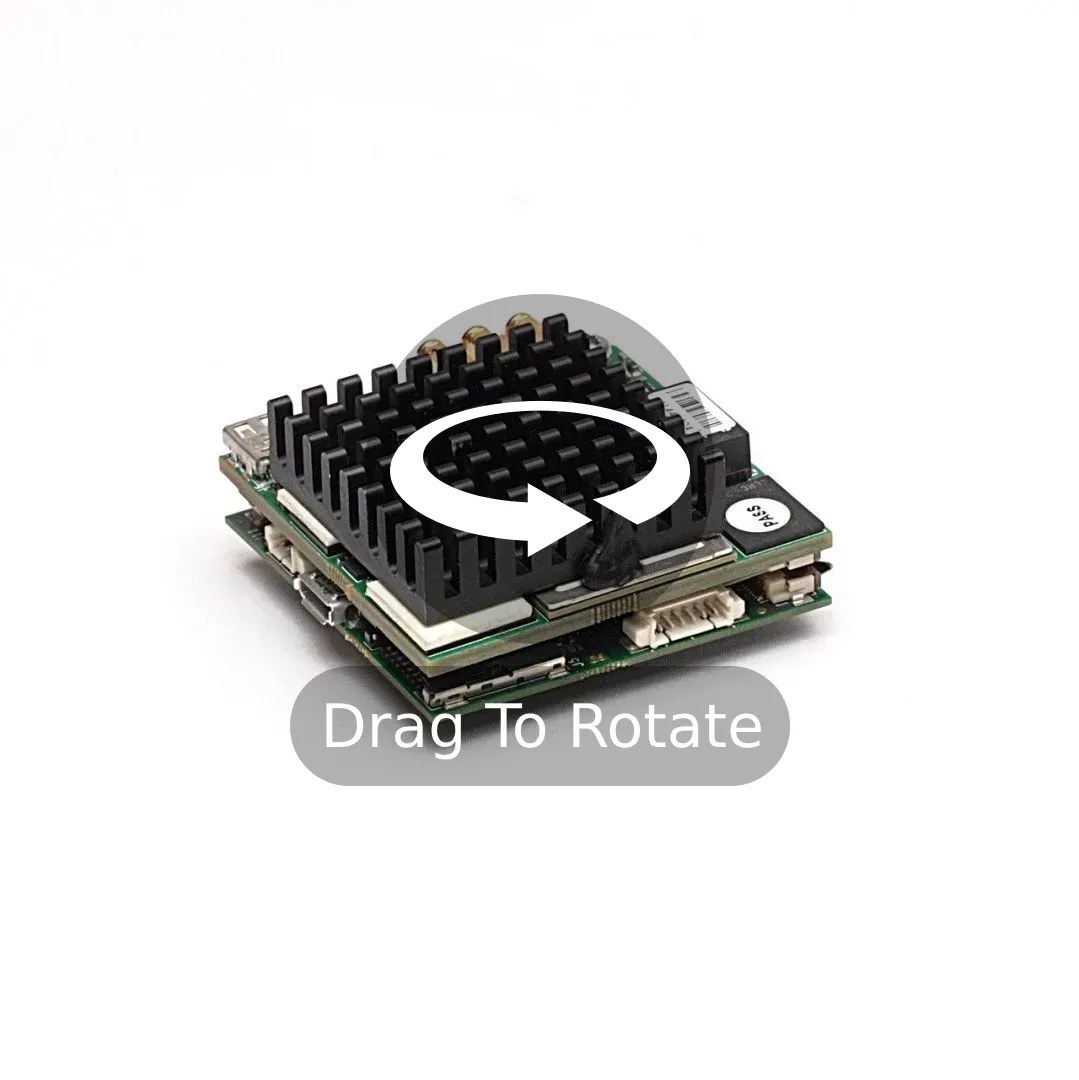

ANT-1772 Micro UAV, HD-SDI & Composite, Low Latency H.264 HD Video Encoder or Decoder, capable of 2 x Composite Streams or 1 x 1080p30 stream + 1 x Composite or 1 x 1080i50or60 stream + 1 x Composite using an IP LAN ethernet connection.Supporting single channel HD-SDI and dual composite video inputs the ANT-1772 can stream in both RTSP and MPEG TS formats over an Ethernet connection to the Drones / unmanned vehicle Radio link. Using a low latency player/ decoder video latency of 100mS is achieved in this small low weight module. The ANT-1772 can be configured to be an Encoder or a Decoder allowing for hardware to hardware low latency links. The UAV Micro also supports video plus audio streaming and multi channel Video support.The inputs can vary in the combination of: either 2 x Composite Streams or 1 x 1080p30 stream + 1 x Composite or 1 x 1080i50or60stream+1x Composite.The outputs are capable of :1 x D1 or 1 x 1080P30 or 1x1080P30+ 1 x SD.There is edge storage via SD Card / NAND Flash 2GB + USB OTG
Multiple streaming formats are supported such as Unicast, Multicast Broadcast, UDP, RTP and RTSP.The ANT-1772 is powered by 5-30v 3.3v DC and power consumption of 3w typical. 44.1 and 48KHz audio is supported with embedded audio HDMI supported.RS232 serial 2 way control with alarm and sensor GPIO Size: 45 x 45 x 10mm
Weight: 37g
Operating temperature range is – 40c to +85 c.
- 1920 x 1080P30 Max Resolution plus Composite
- Serial RS232 bi directional
- H.264 Encoder or Decoder
- HD-SDI & 2 x Composite Inputs
- On board recording via Micro SD card option
- Simplex Stereo Audio
System | Mode | Encoder or Decoder |
System | Standards | RTSP, MPEG-TS |
System | Latency | <150mS (system dependant) |
Video | Compression | H.264 |
Video | Profile | Baseline |
Video | Frame Rate | 1-60fps |
Video | Bit Rate | 100kbs – 10mbps |
Video | Mode | GOP |
Video | Bit Rate Control | CBR, VBR |
Video | Min Resolution | 720 x 480 |
Video | Max Resolution | 1920 x 1080P30 |
Video | Number of Streams | 4 x Primary H.264 |
Video | Inputs | 1 x HD-DSI & 2 x Composite |
Video | Input Combinations | 1 x 1080p30+ 1 x D1 / 1 x 1080i50or60 + 1 x D1 / 2 x D1 |
Video | Outputs | 1 x HDMI , 1 x HD-SDI , 1 x Composite |
Video | Output Combinations | 1 x D1 / 1 x 1080P30 / 1 x 1080P30 + 1 xSD |
Video | On Screen Display | English |
Audio | Mode | Simplex Stereo |
Audio | Compression | |
Audio | Sample Rate | |
Audio | Bit Rate | |
Audio | Streaming | |
Audio | Inputs | Microphone |
Audio | Outputs | Speaker |
Network | Interface | 10-100 Ethernet RJ45 |
Network | Protocols | IPv4, TCP, UDP, IGMP(Multicast),HTTP,RTSP,DNS |
Network | Security | N/A |
Network | Configuration | SDK, WEB |
Data | Type | Serial 2 Way |
Data | Interface | RS232 |
Data | Protocol | Clear |
Data | Alarm | GPIO |
Data | Sensor | GPIO |
Event | Sources | N/A |
Event | Actions | N/A |
Power | Supply | 5-30v DC Option (3.3v) |
Power | Adapter input volts | N/A |
Power | Adapter Output Voltage | N/A |
Power | Consumption | 3w |
Recording | Edge Storage | SD Card / NAND Flash 2GB + USB OTG |
Temperature | Operating Range | – 40c to +85 c |
Physical | Dimensions | 45 x 45 x 10mm |
Physical | Weight | 37g |
Physical | Housing | PCB Only |
General | Certifications | RoHS |
General | Software | Neptune Player & IP Finder |
General | Warranty | 12 Months |
General | Remote | N/A |
General | Reset | Web or IP Finder |
Control & Set Up | Set Up | Web Interface API Document |
Control | API | |
Upgrade | Firmware Upgrade | |

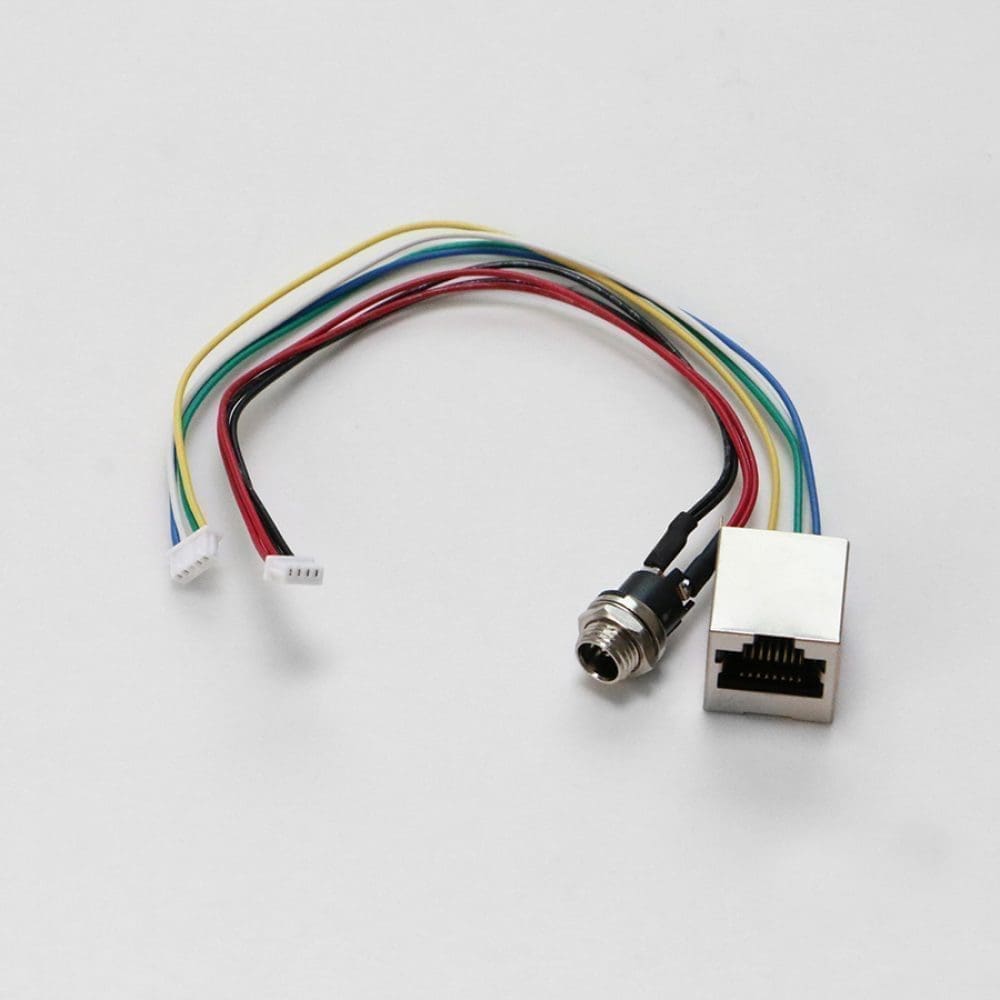

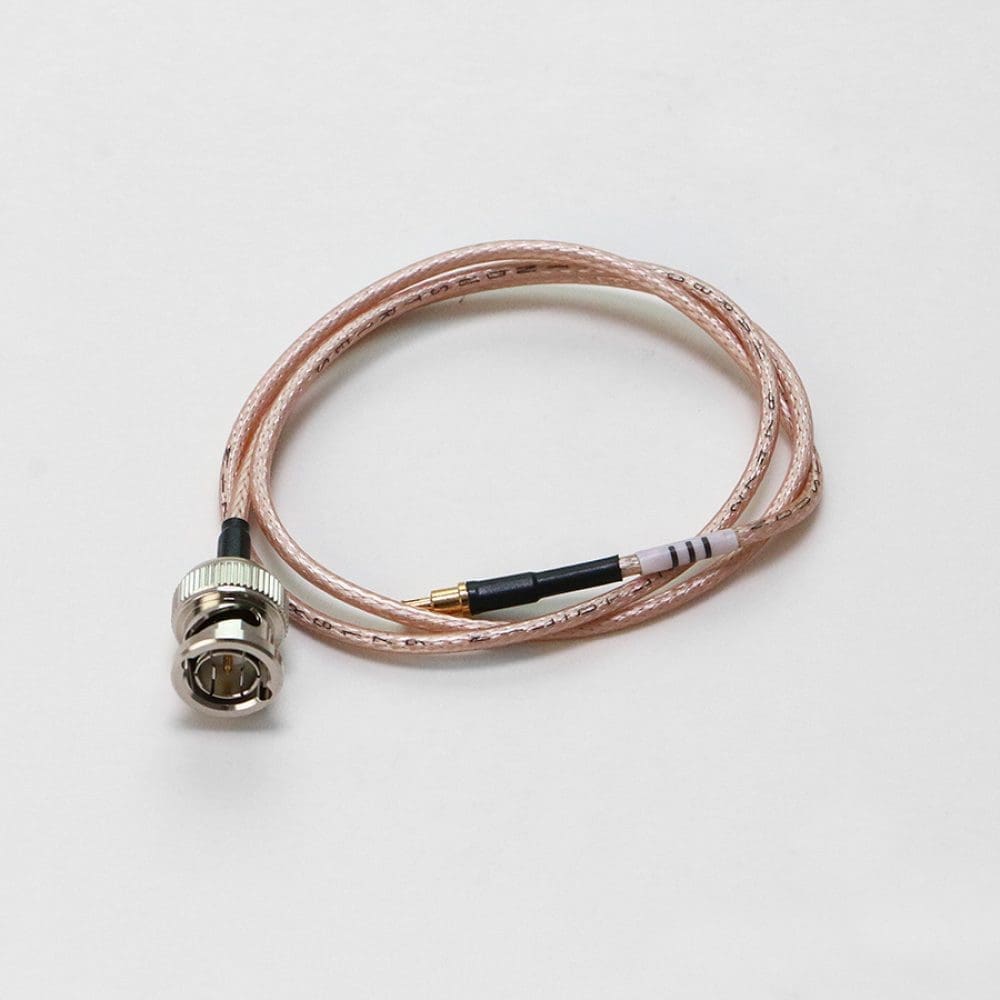

In the Box | Contents | PCB & Optional Leads |
Power Cable/adapter | N/A |
A few of the applications are:
- Encoding video in UAV / Robotic
- Unmanned vehicles / submarine
This product is not limited to the markets and applications described.
