ANT-1773 Nano UAV, HD-SDI HDMI & Composite , Low Latency H.264 HD Video Encoder or Decoder
Key Features
- Inputs 1 x HD-DSI or 1 x HDMI or Quad Composite + 1 x Composite
- 1 x 1080i50/60 + 1 x D1 or 1 x 1080p30+ 1 x D1 or 4x Composite
- H.264 Nano Sized Video Encoder or Decoder
- Low Latency 100ms With
- Unicast, Multicast Broadcast, UDP, RTP and RTSP Streams Supported
Product Overview

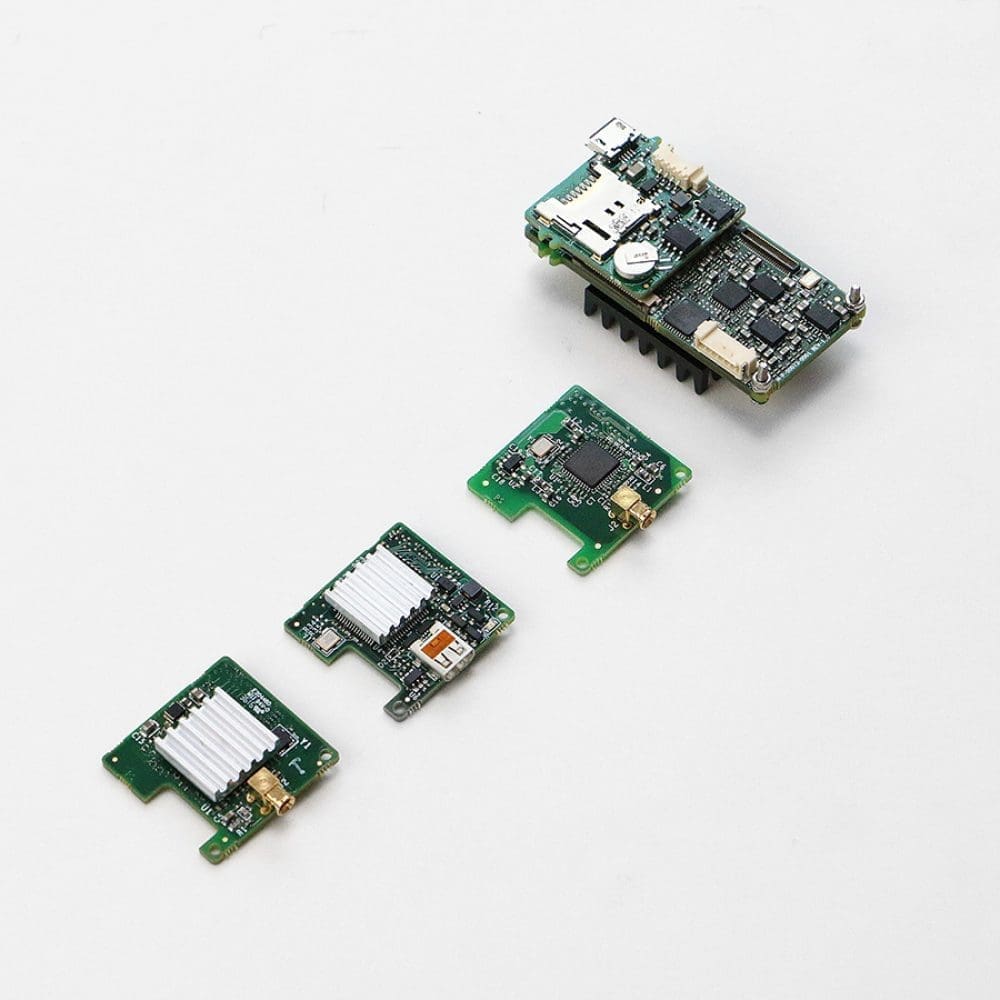

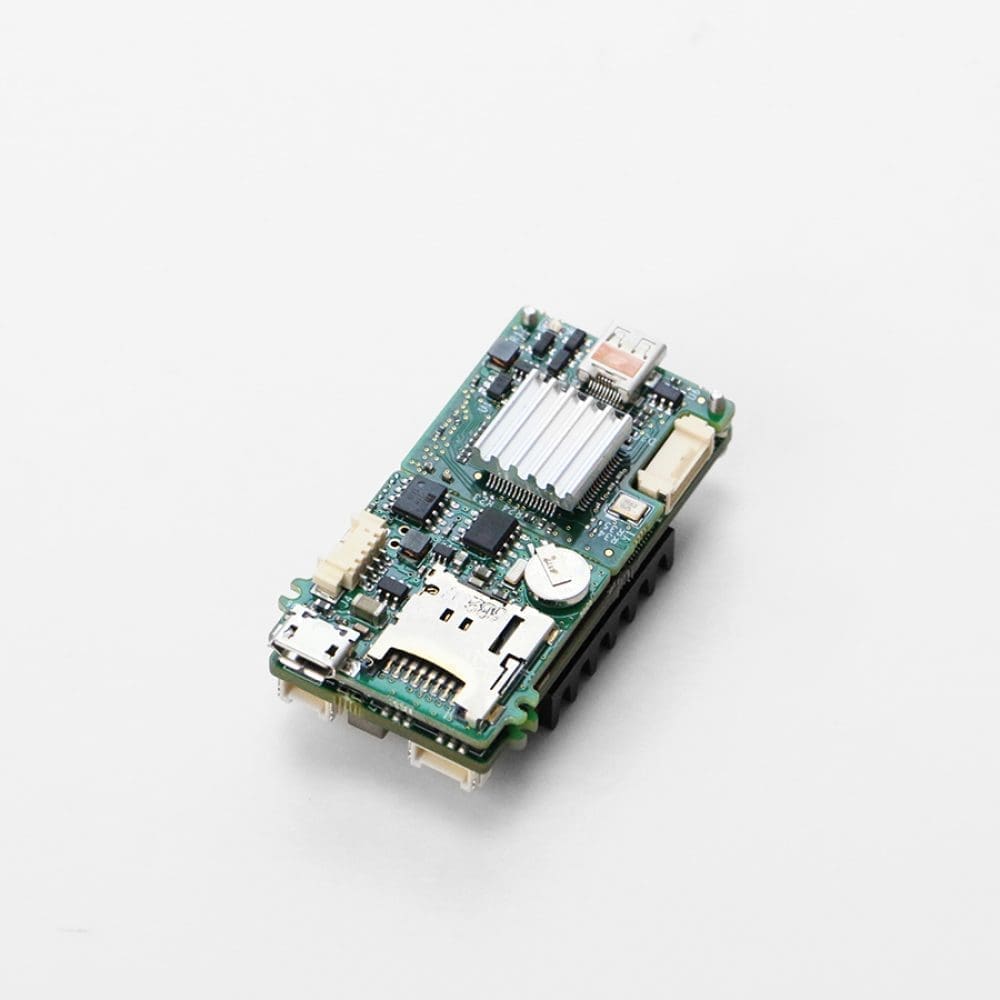

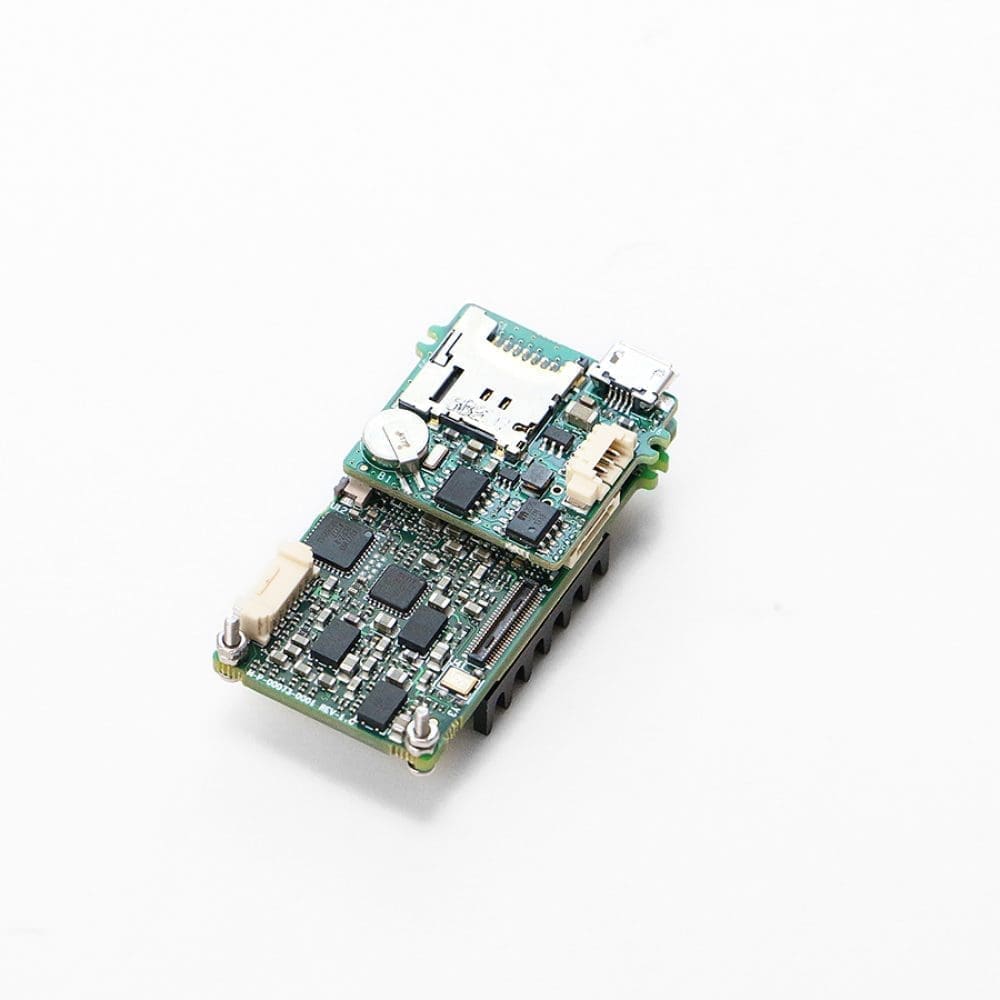

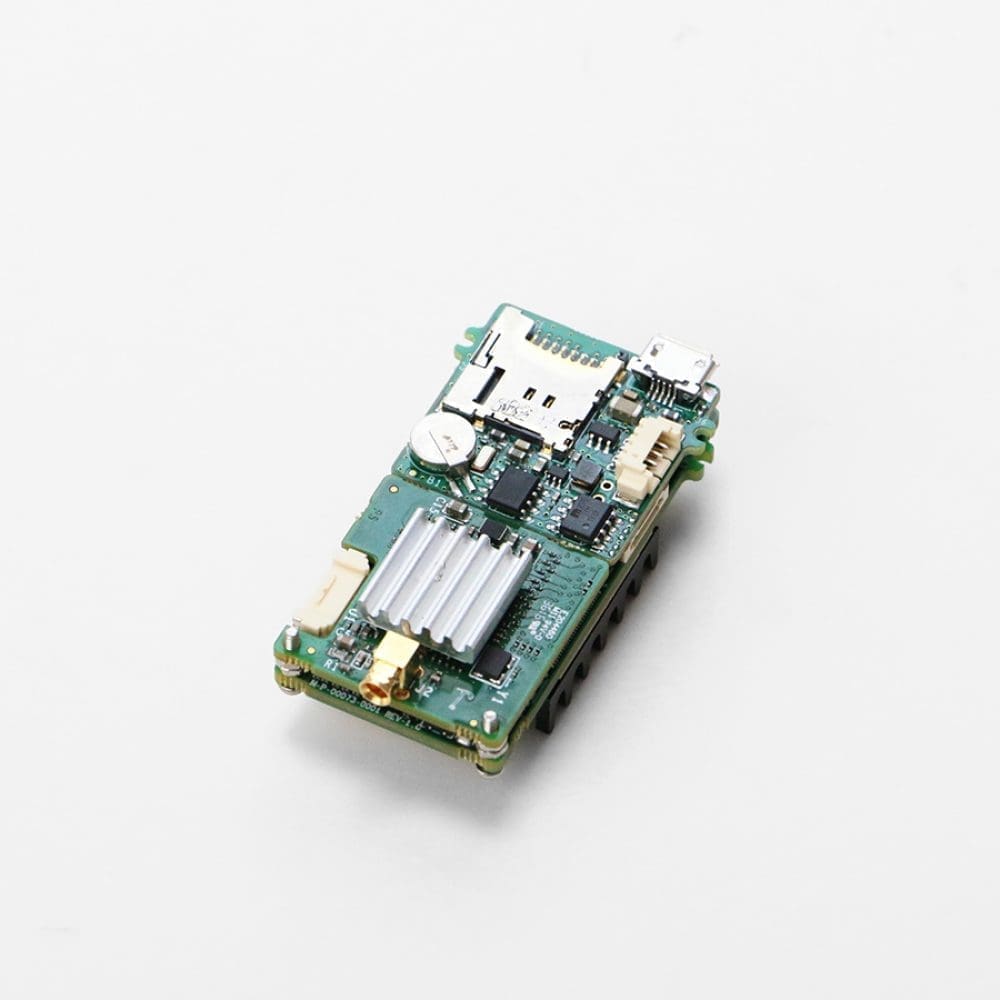

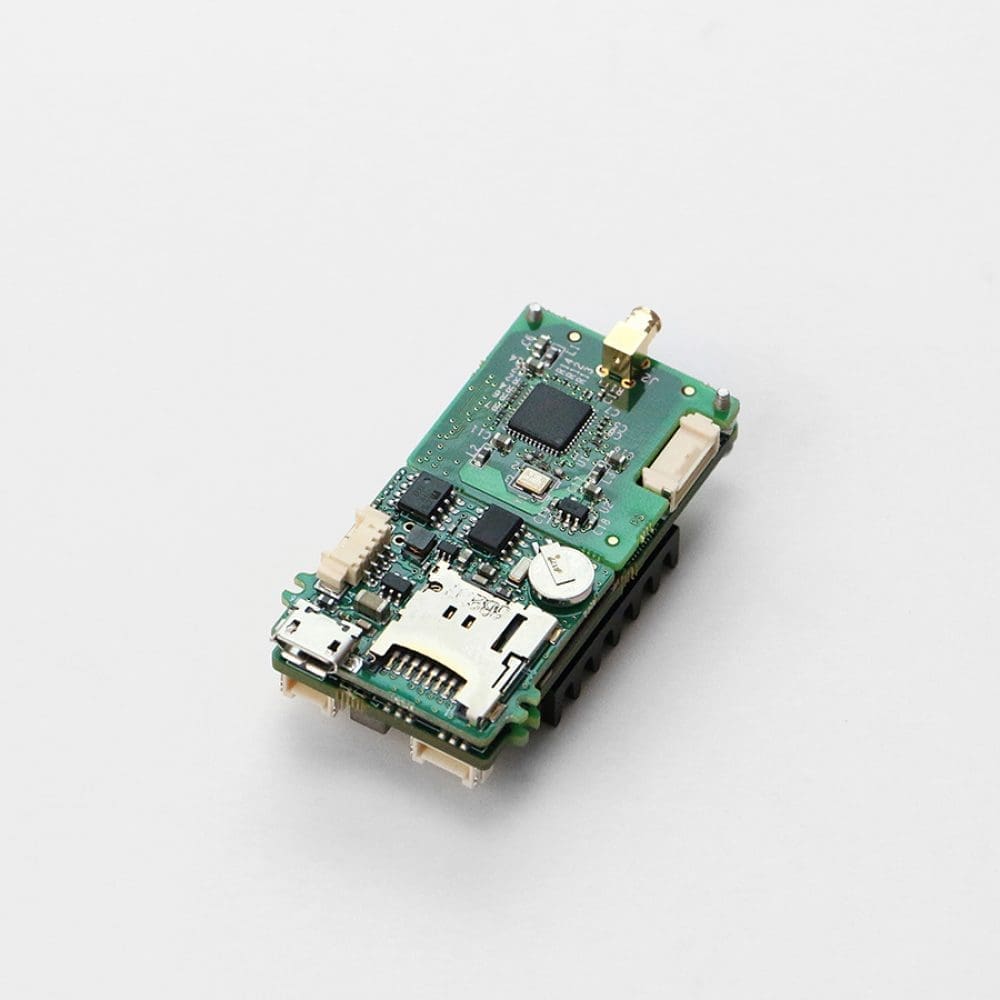

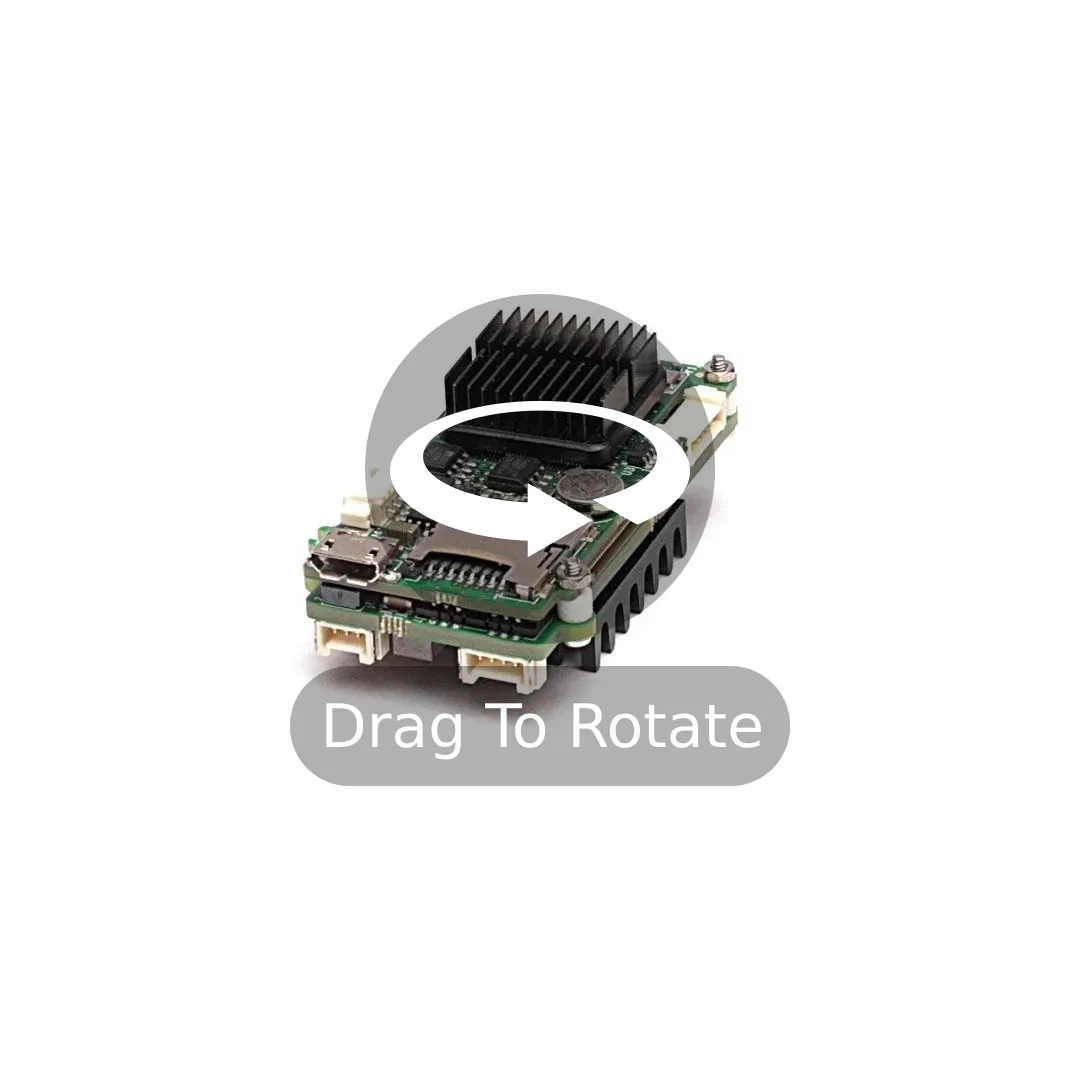

ANT-1773 Nano UAV, HD-SDI (or HDMI or Quad Composite) plus Composite, Low Latency H.264 HD Video Encoder or Decoder, capable of 1 x HD-DSI or 1 x HDMI + 1 x Composite (available in 1 x 1080i50/60 + 1 x D1 or 1 x 1080p30+ 1 x D1) using an IP LAN ethernet connection. This module could possibly be the worlds smallest video encoder of its type and specification. New Quad composite video option board available.
Streaming in both RTSP and MPEG TS formats over an Ethernet connection to the Drones / unmanned vehicle Radio link. Using a low latency player/ decoder video latency of 100mS is achieved in this small low weight module. The ANT-1773 can be configured to be an Encoder or a Decoder allowing for hardware to hardware low latency links. Add on modules allow SD carts and USB OTG recording. The UAV Nano also supports video plus audio streaming and multi channel Video support.
Inputs connections are: 1 x HD-DSI or 1 x HDMI + 1 x Composite (available in 1 x 1080i50/60 + 1 x D1 or 1 x 1080p30+ 1 x D1) Also quad Composite + Composite The output is 1 x Composite (D1).

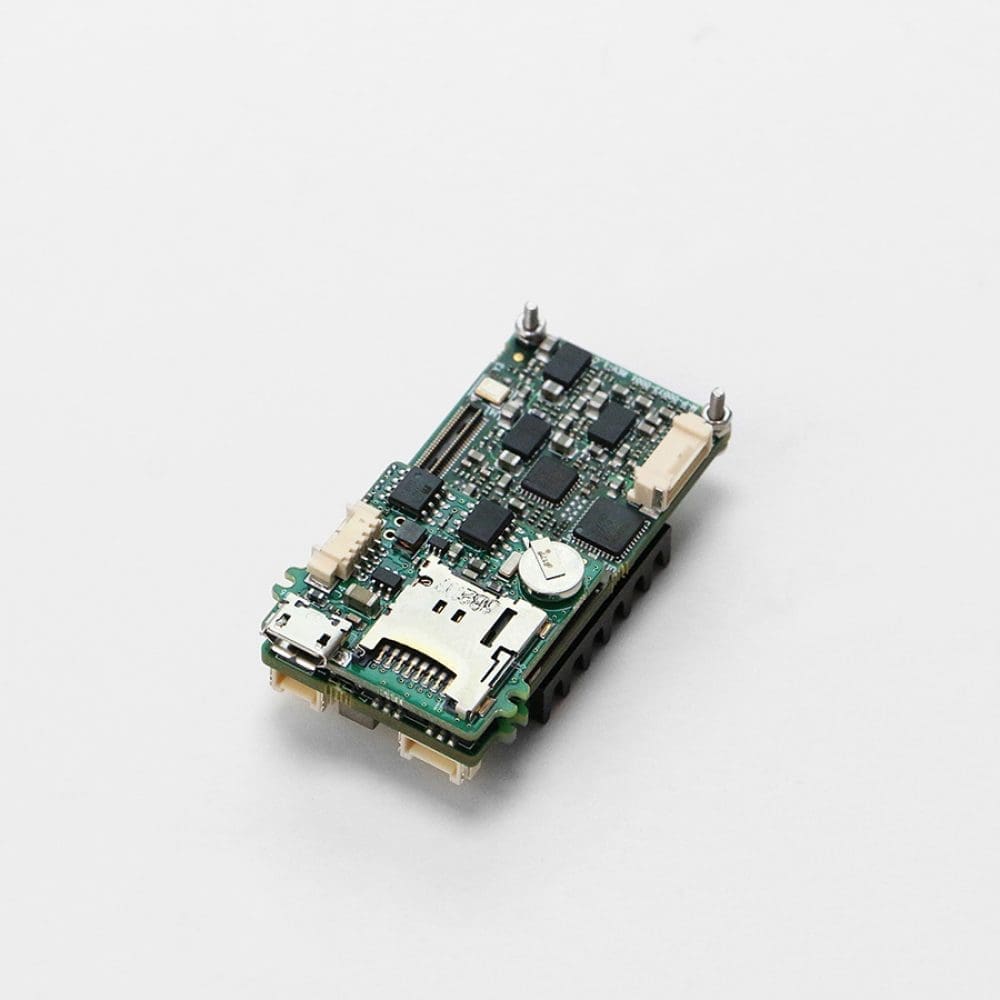

There is edge storage via SD Card / NAND Flash 1GB + USB OTG.
Multiple streaming formats are supported such as Unicast, Multicast MOPEG TS and RTSP.
The ANT-1773 is powered by 4.5-16v DC and power consumption of 3.48w typical.
44.1 and 48KHz audio is supported with embedded audio HDMI supported.
RS232 serial 2 way control with alarm and sensor GPIO
Size: 26 x 51 x 15 mm.
Weight: 22g.
Operating temperature range is – 40c to +85 c.
- 1920 x 1080P30 Max Resolution
- HDSDI HDMI or Quad video options
- H.264 Encoder or Decoder
- SD card and USB recording
- Two way RS232
- Simplex Stereo Audio
System | Mode | Encoder or Decoder |
System | Standards | RTSP, MPEG-TS |
System | Latency | <150mS (system dependant) |
Video | Compression | H.264 |
Video | Profile | Baseline |
Video | Frame Rate | 1-60fps |
Video | Bit Rate | 100kbs – 10mbps |
Video | Mode | GOP |
Video | Bit Rate Control | CBR, VBR |
Video | Min Resolution | 720 x 480 |
Video | Max Resolution | 1920 x 1080P30 |
Video | Number of Streams | 4 x Primary H.264 |
Video | Inputs | 1 x HD-DSI or 1 x HDMI + 1 x Composite |
Video | Input Combinations | 1 x 1080i50/60 + 1 x D1 / 1 x 1080p30+ 1 x D1 |
Video | Outputs | 1 x Composite |
Video | Output Combinations | 1 x D1 |
Video | On Screen Display | English |
Audio | Mode | Simplex Stereo |
Audio | Compression | |
Audio | Sample Rate | |
Audio | Bit Rate | |
Audio | Streaming | |
Audio | Inputs | Microphone |
Audio | Outputs | |
Network | Interface | 10-100 Ethernet RJ45 |
Network | Protocols | IPv4, TCP, UDP, IGMP(Multicast),HTTP,RTSP,DNS |
Network | Security | N/A |
Network | Configuration | SDK, WEB |
Data | Type | Serial 2 Way |
Data | Interface | RS232 |
Data | Protocol | Clear |
Data | Alarm | GPIO |
Data | Sensor | GPIO |
Event | Sources | N/A |
Event | Actions | N/A |
Power | Supply | 4.5-16v DC |
Power | Adapter input volts | N/A |
Power | Adapter Output Voltage | N/A |
Power | Consumption | 3.48w |
Recording | Edge Storage | SD Card / NAND Flash 1GB + USB OTG |
Temperature | Operating Range | – 40c to +85 c |
Physical | Dimensions | 26 x 51 x 15 mm |
Physical | Weight | 22g |

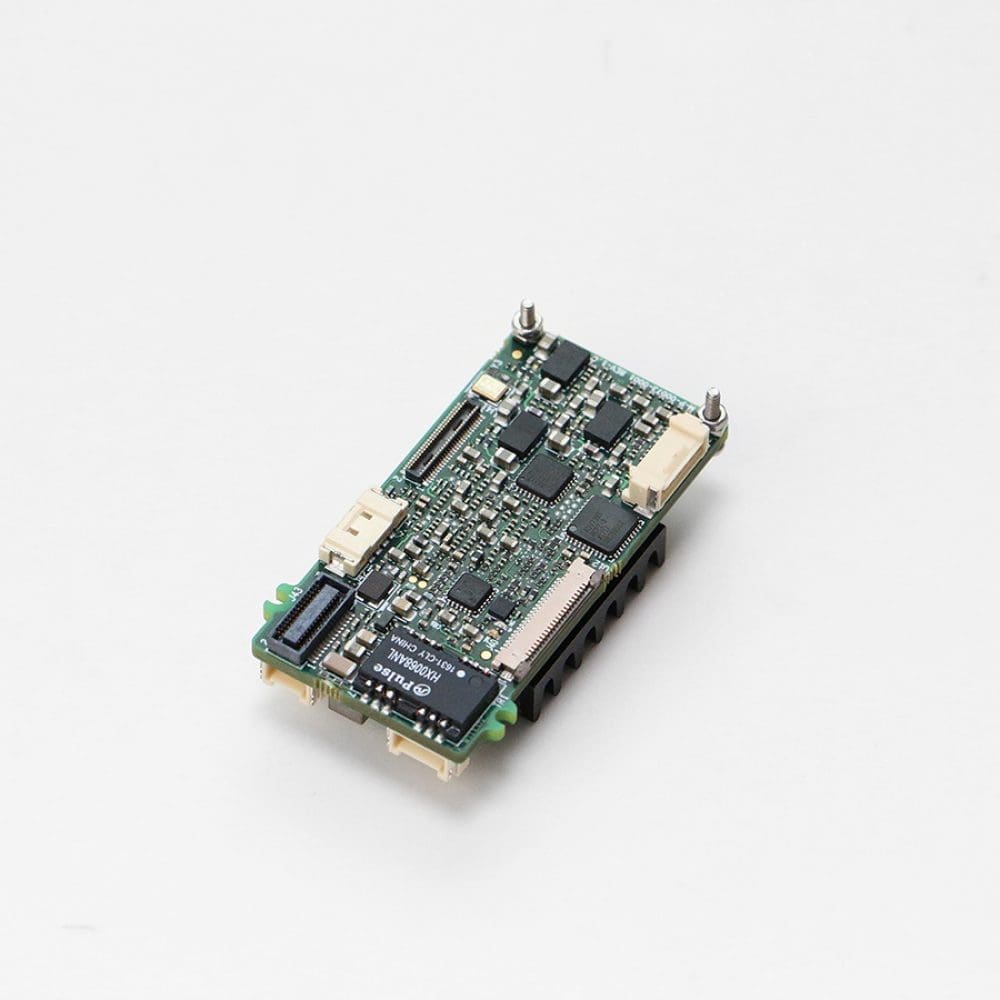

Physical | Housing | PCB Only |
General | Certifications | RoHS |
General | Software | Neptune Player & IP Finder |
General | Warranty | 12 Months |
General | Remote | N/A |
General | Reset | Web or IP Finder |
Control & Set Up | Set Up | Web Interface API Document |
Control | API | |
Upgrade | Firmware Upgrade | |

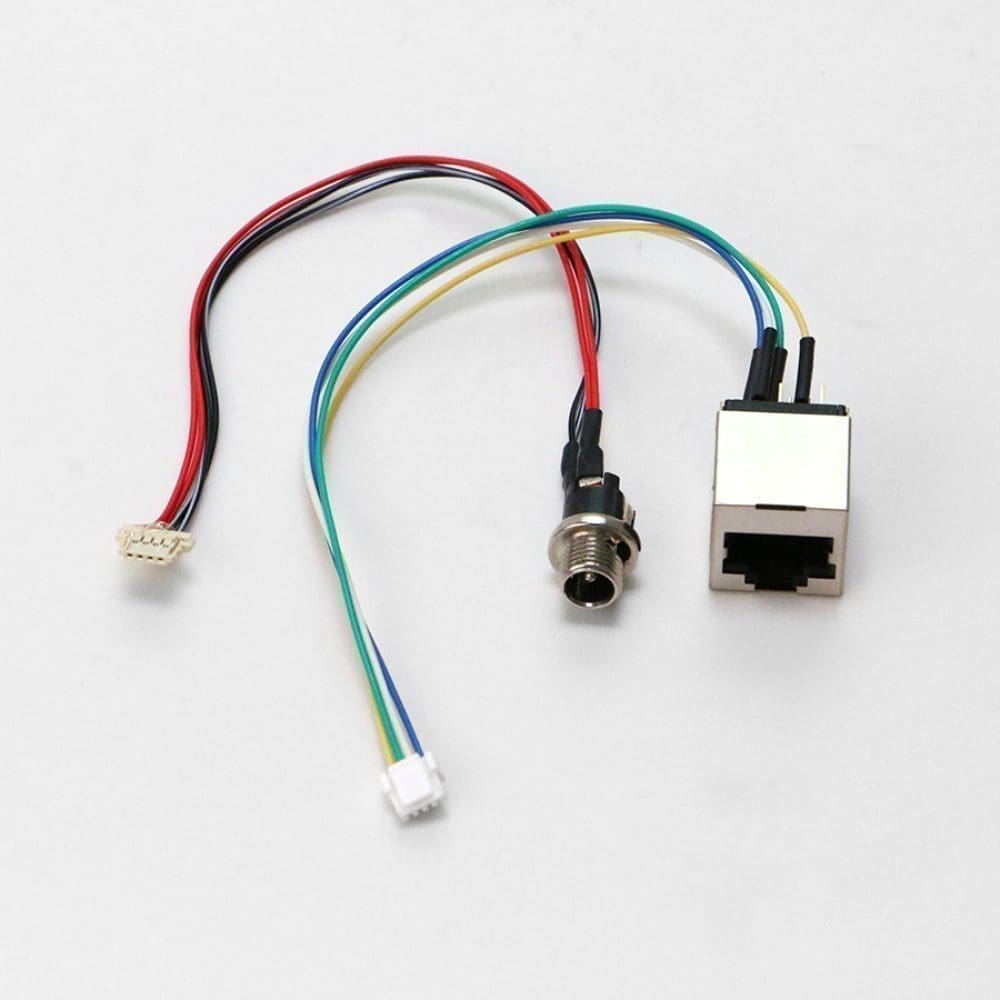

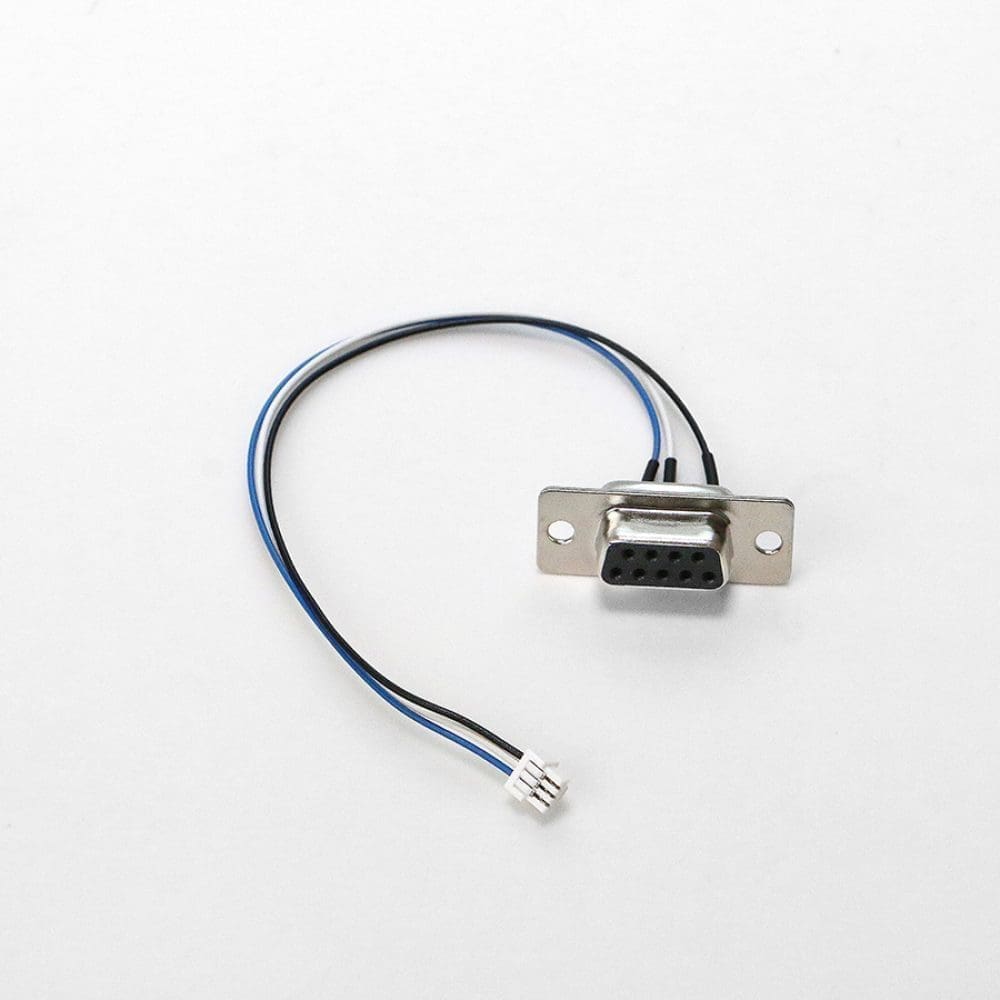

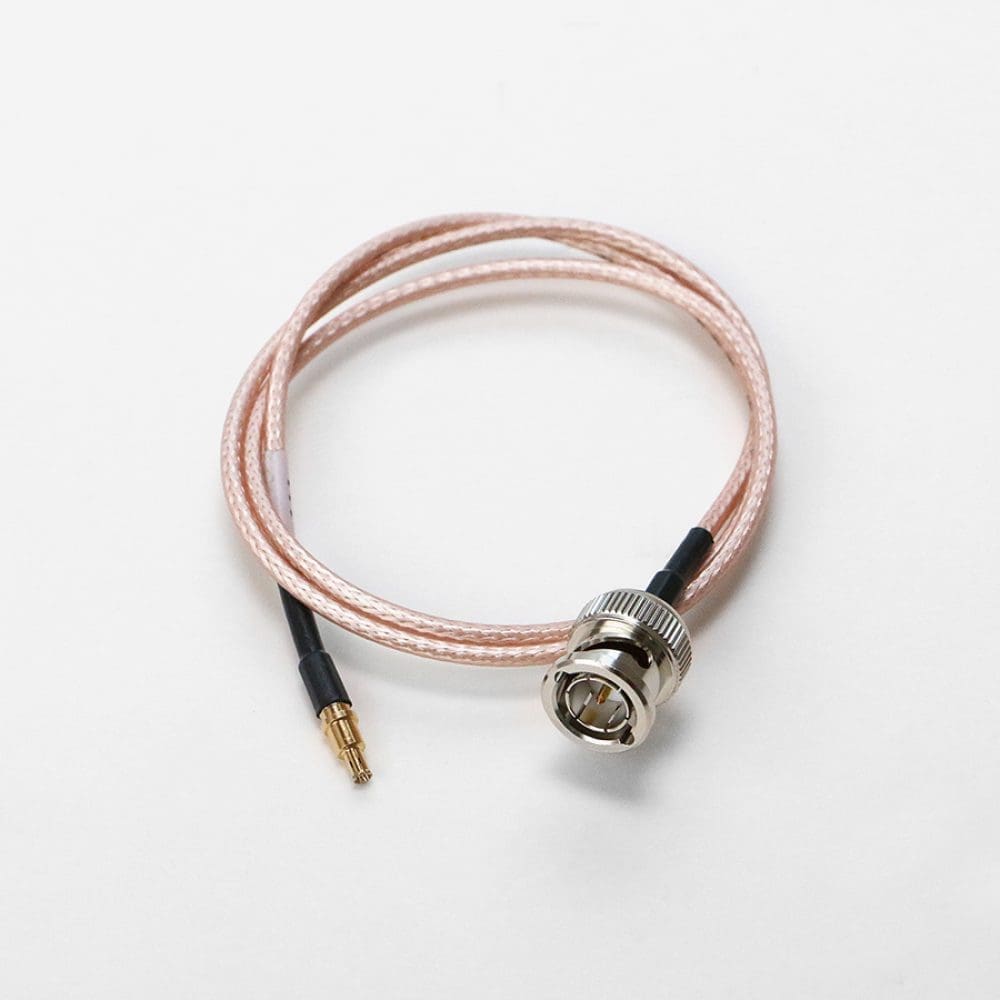

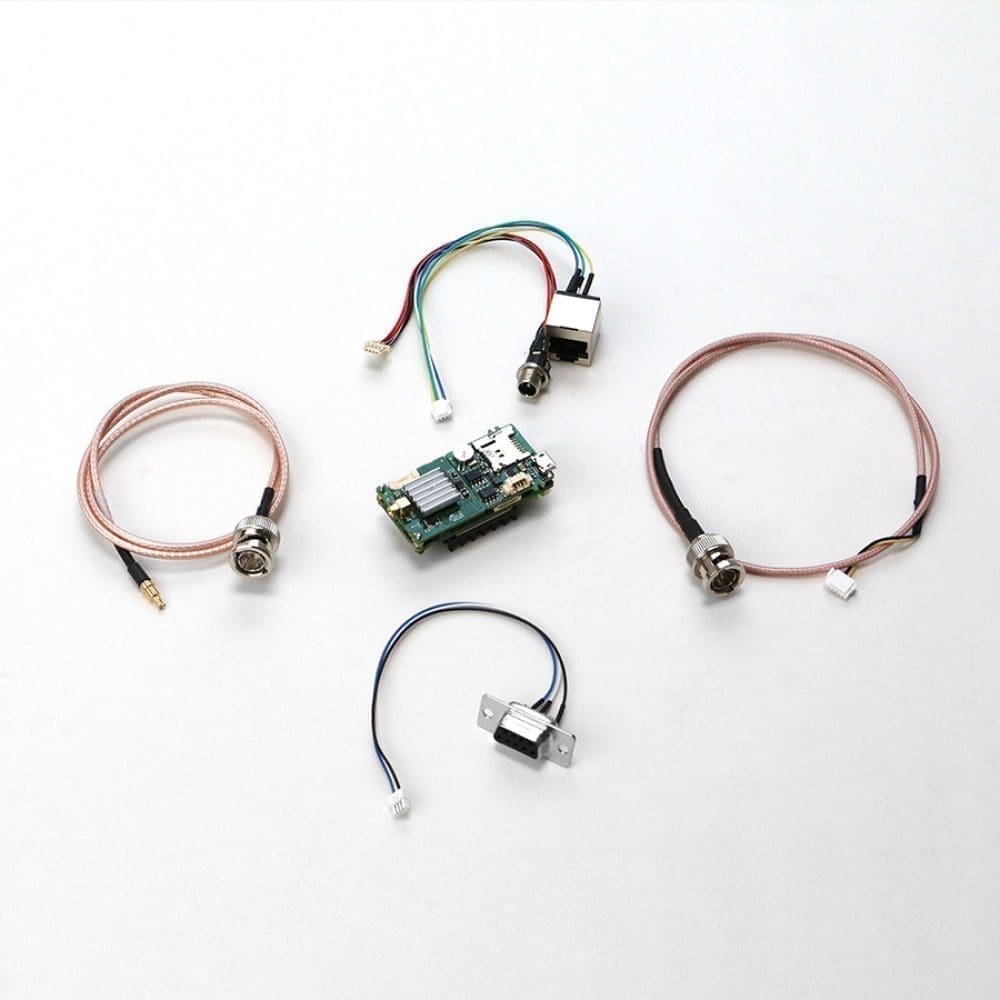

In the Box | Contents | PCB & Optional Leads |
Power Cable/adapter | N/A |
A few of the applications are:
- Encoding video in UAV / Robotic
- Unmanned vehicles / submarine
This product is not limited to the markets and applications described.
Please download or full application catalogue here.
Additional Information
Encoder | Yes |
---|---|
Decoder | No |
H.265 | No |
H.264 | Yes |
ONVIF | No |
Max Resolution | 1920 x 1080 |
Frame Rate | 30 |
RTSP | Yes |
RTMP | No |
MPEG-TS | Yes |
HDMI | Yes |
DVI-D using HDMI to DVI Cable | No |
HD-SDI | Yes |
Component via VGA Dongle | No |
Composite PAL NTSC | Yes |
Independent Video Channels | 2 |
Streams | 4 |
Two Way Audio | No |
SD or USB Local Recording | Yes |
RS232 | Yes |
RS485 | No |
PoE | No |
Hardware to Hardware Latency mS | 100 |
