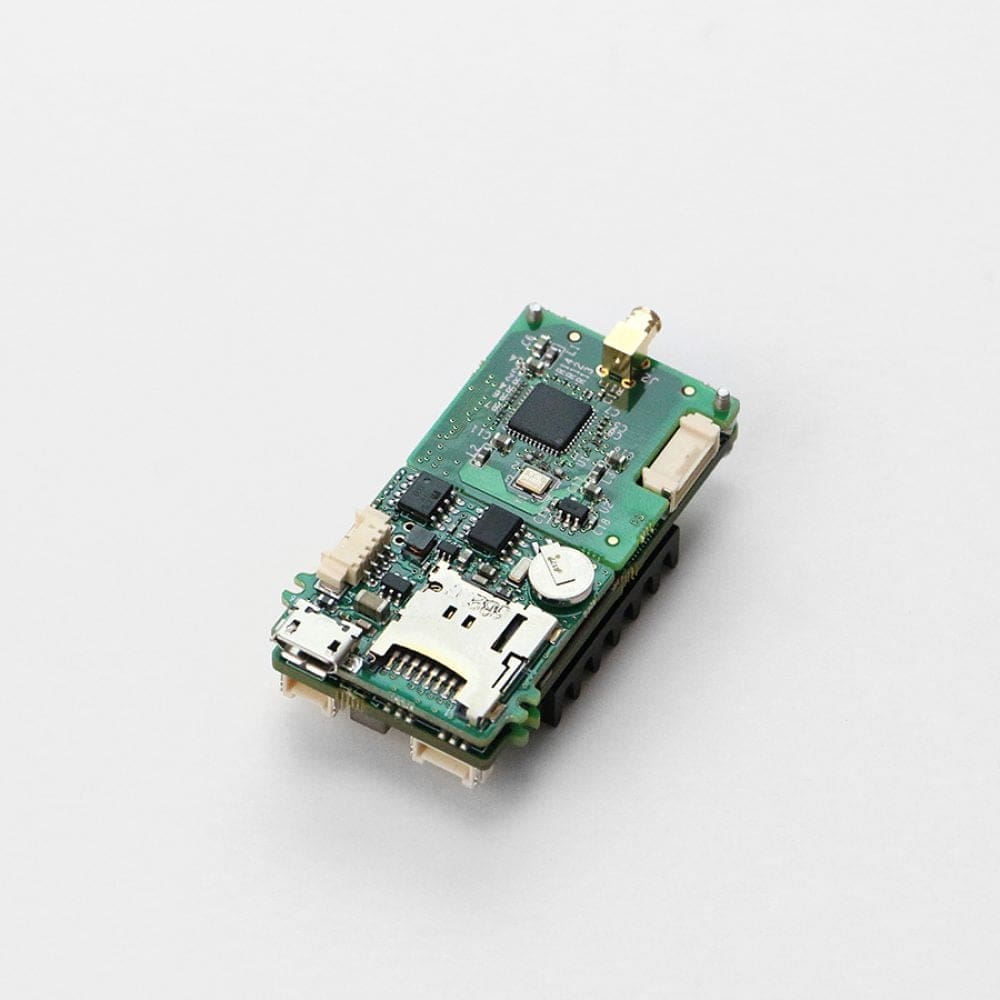

ANT-1774 ULTRA Nano UAV Drone Dual HD / SD Low Latency H.265 H.264 Video Encoder
Key Features (Provisional Release )
- Inputs 2 x HD-SDI or 2 x HDMI, 2x CVBS analogue or any 2 combinations ,other options to follow
- 2x 1080P60 HD interfaces with onboard SD card recording .

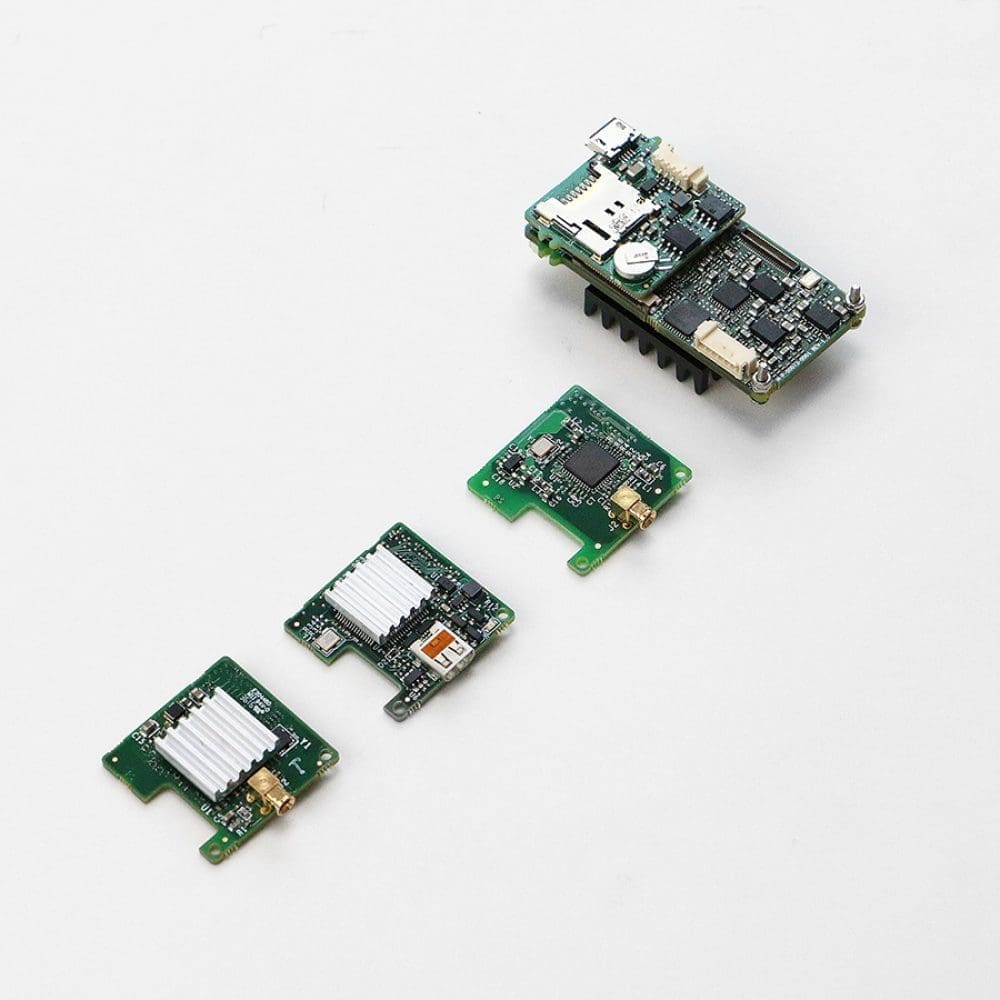

- Dual pluggable option boards for HD or SD Video interfaces gives flexibility for video inputs
- H.265 support for low bit rate and H.264 backward compatible
- Low Latency 100ms with Neptune Player application
- Unicast, Multicast Broadcast, RTP Uni/Multicast and RTSP via UDP Streams Supported
Product Overview
ANT-1774 ULTRA Nano UAV, 3G HD-SDI /HDMI, Low Latency H.265 H.264 HD Video Encoder . Capable of 2 x HD channels at 1080P60 or any combination of 3G HD-SDI , HDMI or composite video using an IP LAN ethernet connection. This module could possibly be the worlds smallest video encoder of its type and specification. Future Video interfaces will be added such as Analogue HD, Component video and more.

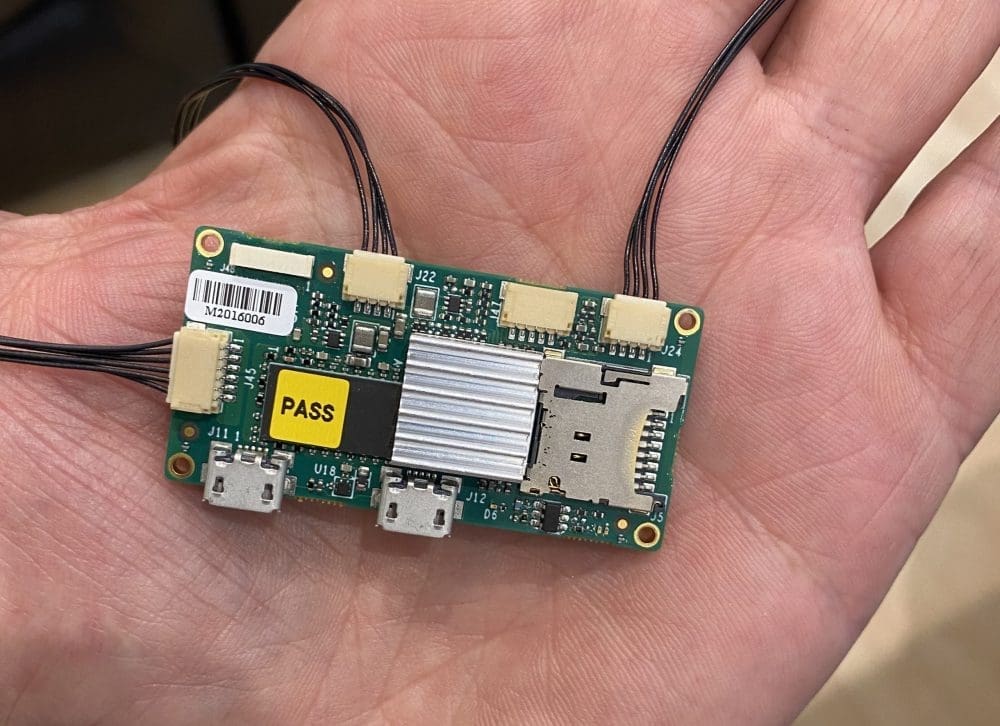

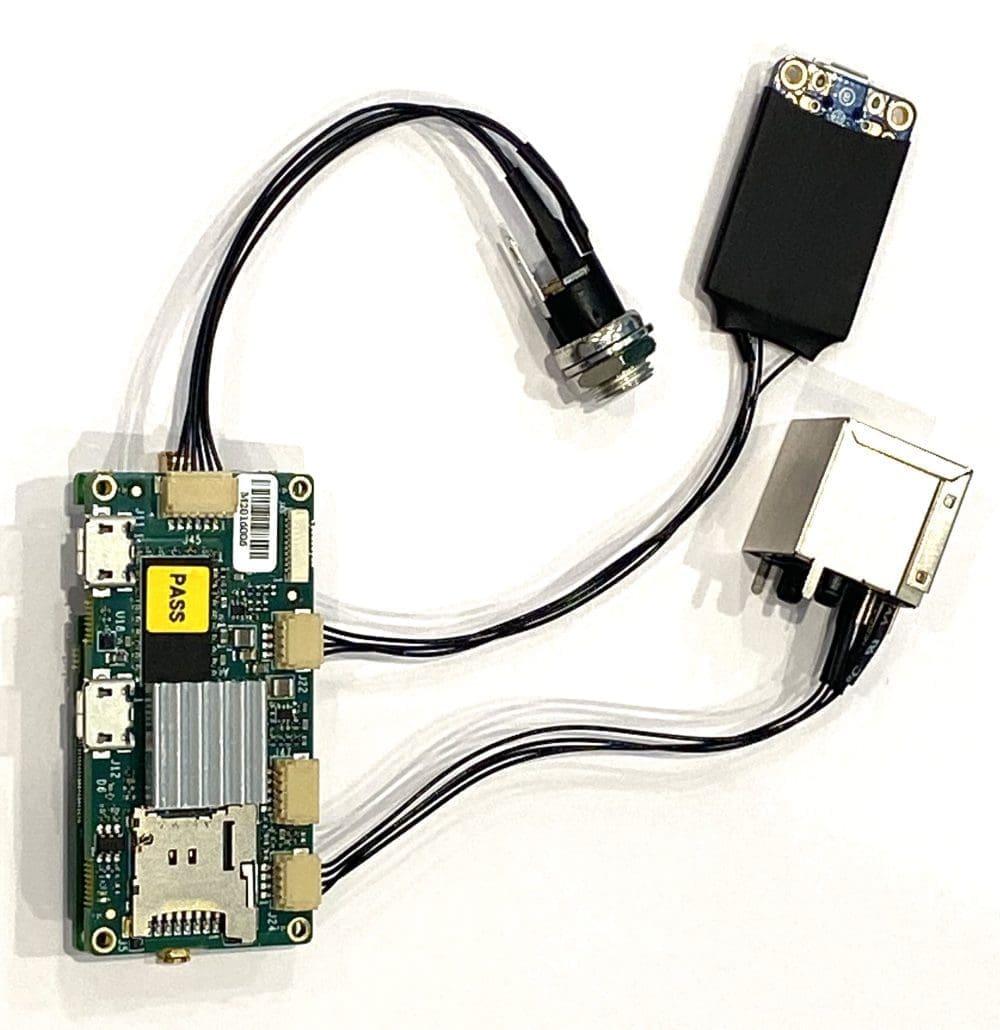

Streaming in both RTSP and RTP (Unicast/Multicast) formats over an Ethernet connection to the Drones / unmanned vehicle Radio link. Using a low latency player/ decoder video latency of 100mS is achieved in this small low weight module. SD card recording is on the main motherboard and HD video modules are identical to those used on the ANT-1773. The UAV ULTRA Nano also supports video plus audio streaming and multi HD Video input support at 1080P60.

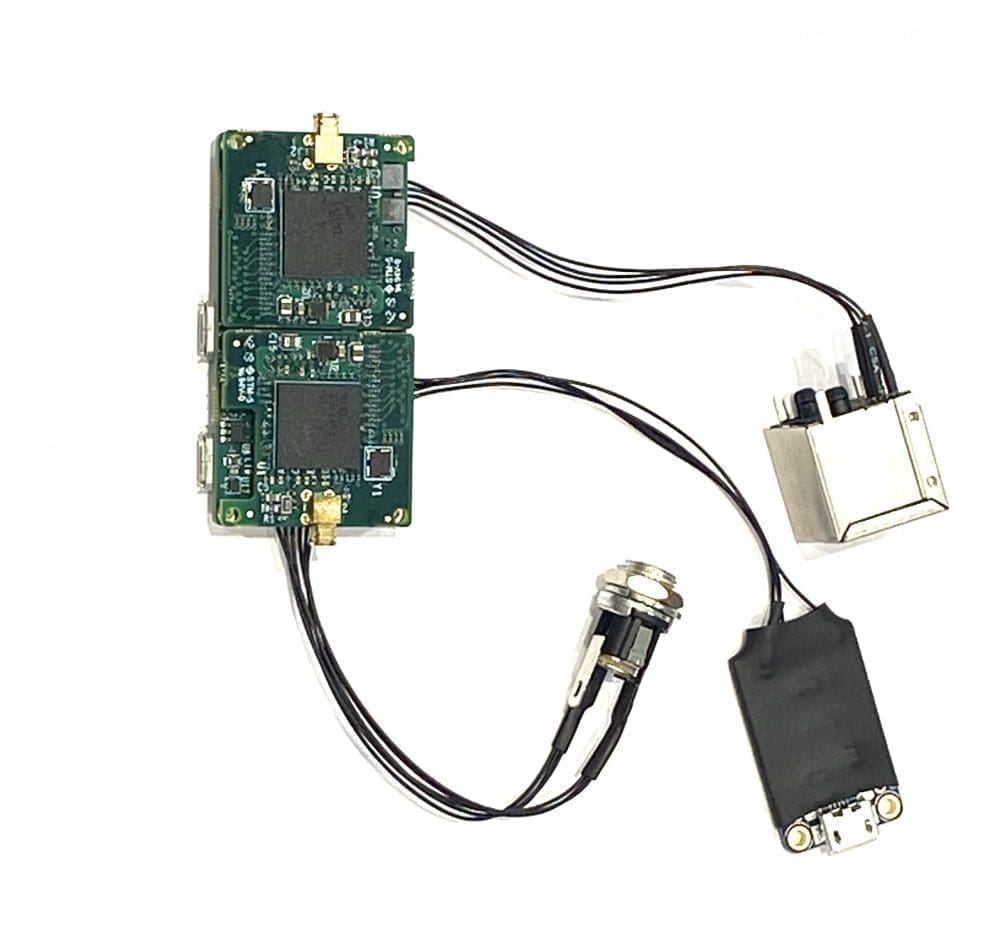

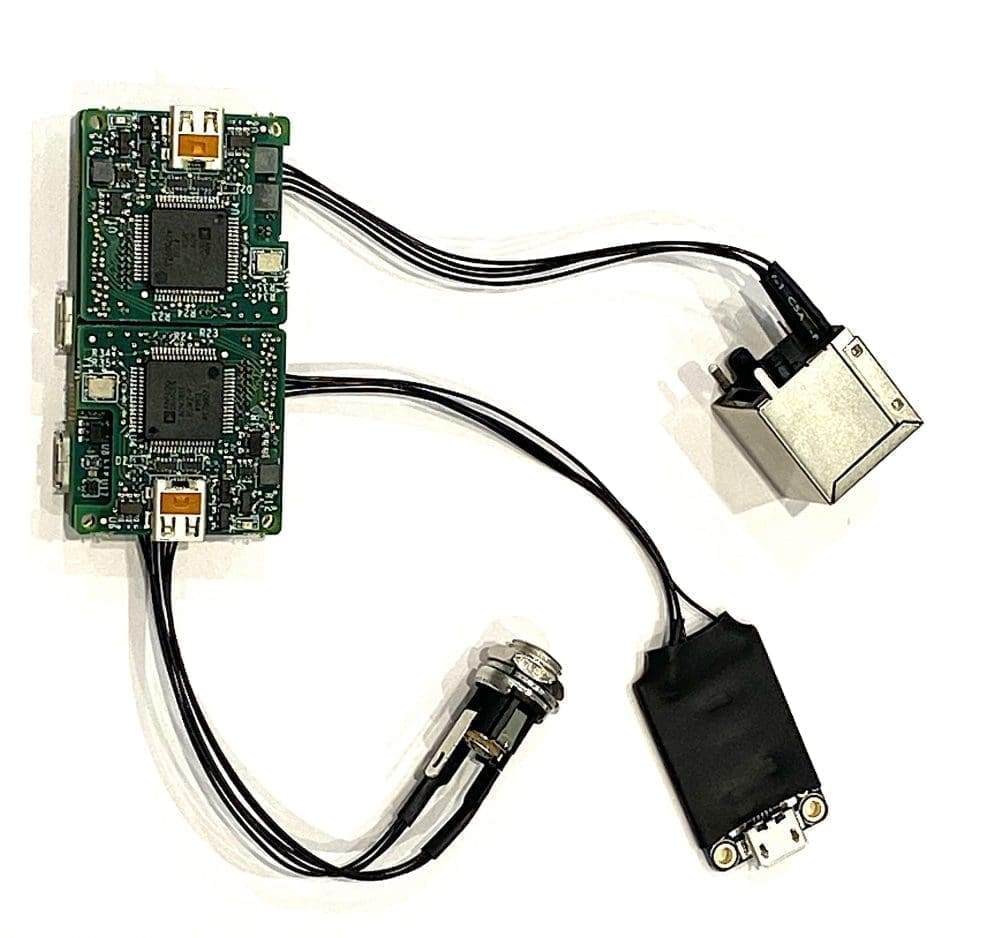

HDMI + HDMI , HD-SDI + HD-SDI, CVBS+CVBS or mixtures and in future other video formats makes this an easily upgradable future proof platform
Multiple streaming formats are supported such as Unicast, Multicast and RTSP/RTP.
The ANT-1774 is powered by 5v +-0/.1 v DC only and power consumption of 3.75w typical (One HDSDI 1080P60 stream example).
NOTE! USB ports are designed for connecting to memory in future firmware releases. Connecting these to a PC will cause irreparable damage to the encoder .
Audio support : 1x onboard MEMS or external microphone and 1x line output
2 way UDP to serial support
Size: 25.4 x 50.8 x 15 mm.
Weight: 16g.(with 2 modules attached )
Operating temperature range is – 40c to +85 c.
- 1920 x 1080P60 Max Resolution
- HDSDI HDMI video inputs
- H.265 H264 Encoder
- SD card onboard recording
- Two way RS232
- Simplex Stereo Audio
| System | Mode | Encoder |
| System | Standards | RTSP, RTP |
| System | Latency | 100mS (system dependant) |
| Video | Compression | H.264 and H.265 |
| Video | Profile | Baseline |
| Video | Frame Rate | 1-60fps |
| Video | Bit Rate | 100kbs – 20mbps |
| Video | Mode | GOP |
| Video | Bit Rate Control | CBR, VBR |
| Video | Min Resolution | 720 x 480 |
| Video | Max Resolution | 1920 x 1080P60 |
| Video | Number of Streams | 4 x Primary H.265/2644 |
| Video | Inputs | 2 x HD-DSI or 2 x HDMI 2x Composite or combinations of any two formats |
| Video | Input Combinations | 2 x 1080i50/60 or 1080P60 |
| Video | Outputs | |
| Video | Output Combinations | |
| Video | On Screen Display | English |
| Audio | Mode | Simplex Stereo |
| Audio | Compression | |
| Audio | Sample Rate | |
| Audio | Bit Rate | |
| Audio | Streaming | |
| Audio | Inputs | Microphone |
| Audio | Outputs | |
| Network | Interface | 10-100 Ethernet RJ45 |
| Network | Protocols | IPv4, TCP, UDP, IGMP(Multicast),RTSP,DNS |
| Network | Security | N/A |
| Network | Configuration | SDK, Application via UDP/Serial |
| Data | Type | Serial 2 Way |
| Data | Interface | Serial general |
| Data | Protocol | Clear |
| Data | Alarm | |
| Data | Sensor | |
| Event | Sources | N/A |
| Event | Actions | N/A |
| Power | Supply | 5.0V DC +- 0.1 volt |
| Power | Adapter input volts | N/A |
| Power | Adapter Output Voltage | N/A |
| Power | Consumption | 3.75w |
| Recording | Edge Storage | SD Card |
| Temperature | Operating Range | – 40c to +85 c |
| Physical | Dimensions | 25.4 x 50.8 x 15 mm |
| Physical | Weight | 16g |
| Physical | Housing | PCB Only |
| General | Certifications | RoHS |
| General | Software | Neptune Player & IP Finder |
| General | Warranty | 12 Months |
| General | Remote | N/A |
| General | Reset | Serial or UDP Ethernet via App |
| Control & Set Up | Set Up | Application interface API Document |
| Control | API | |
| Upgrade | Firmware Upgrade via App | |

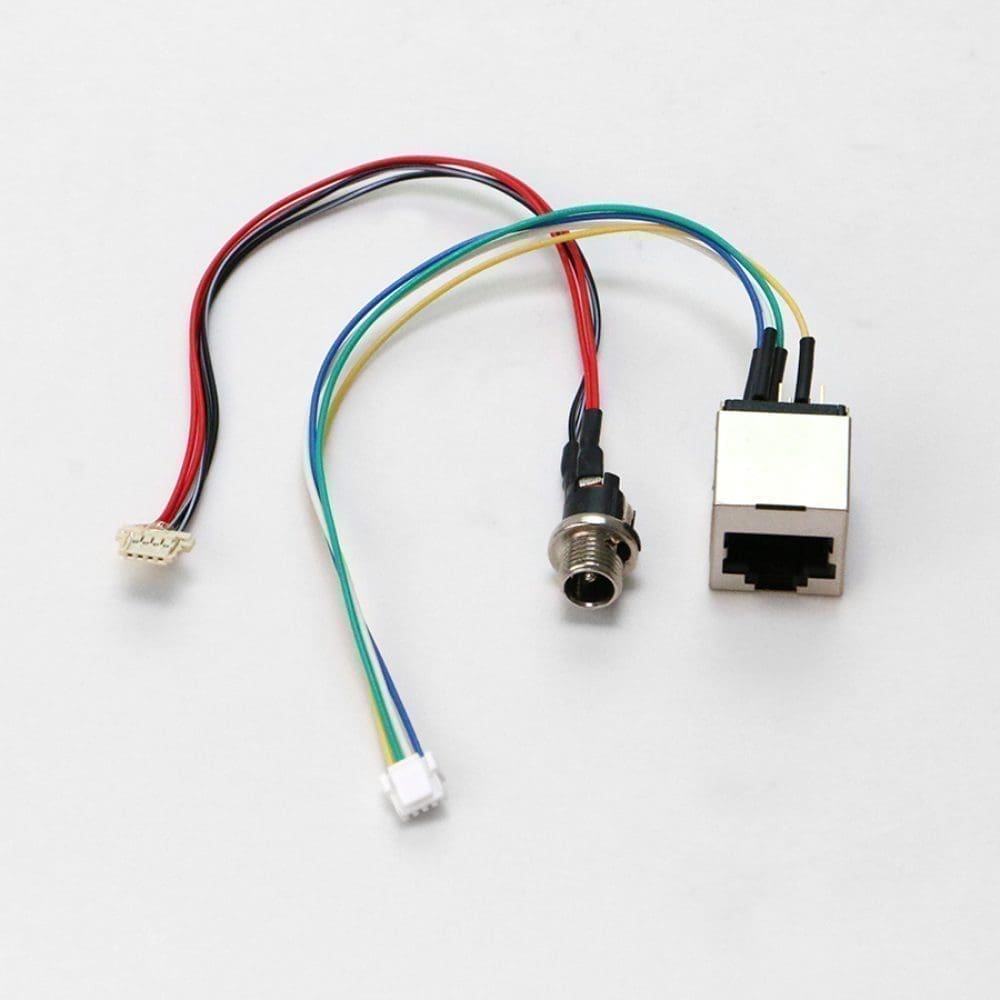

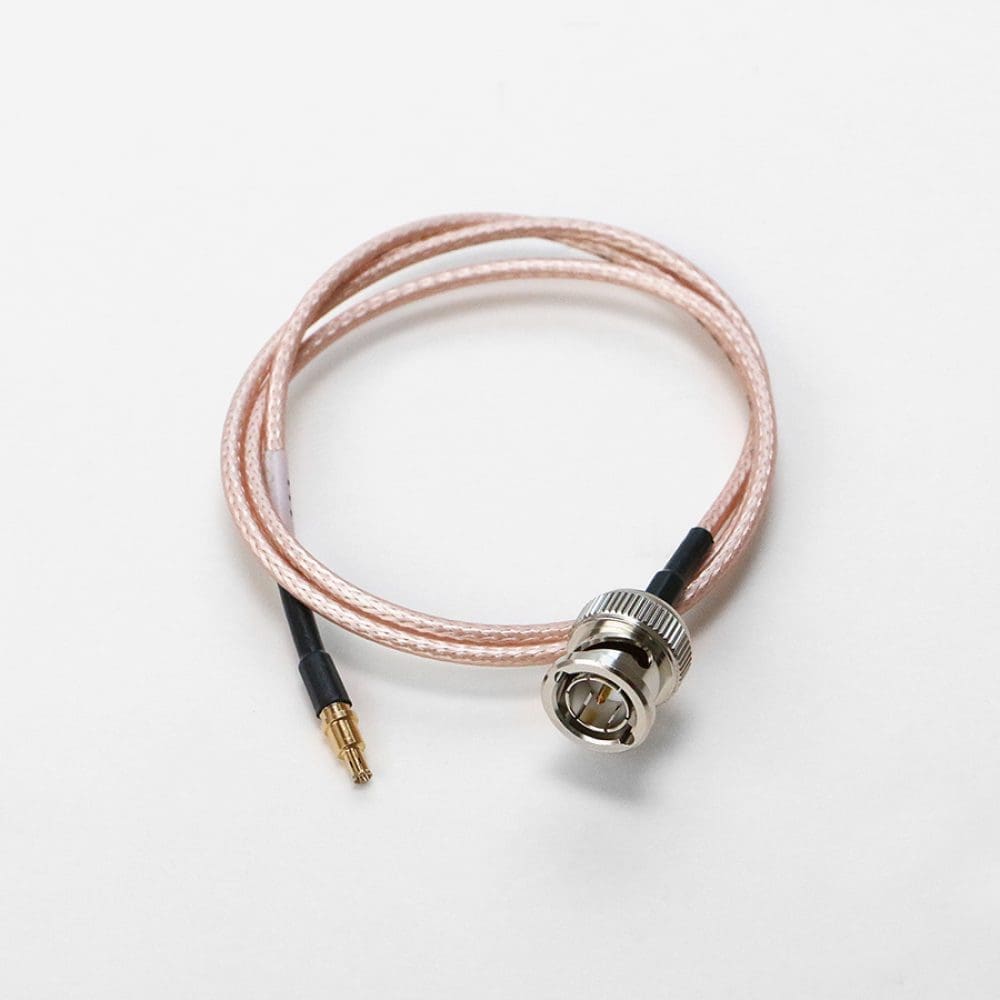

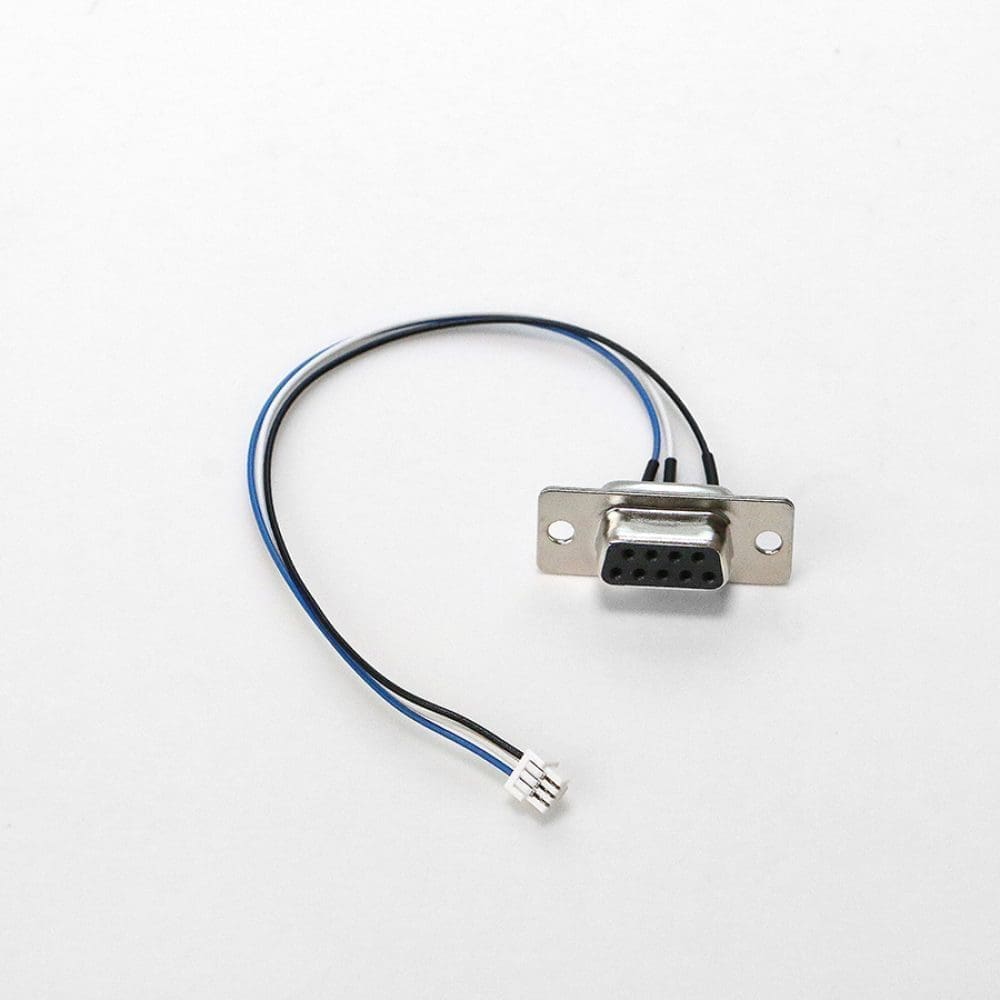

| In the Box | Contents | PCB & Optional Leads |
| Power Cable/adapter | N/A |
A few of the applications are:
- Encoding video in UAV / Robotic
- Unmanned vehicles / submarine
This product is not limited to the markets and applications described.
Please download or full application catalogue here.
Additional Information
| Encoder | Yes |
|---|---|
| H.265 | Yes |
| H.264 | Yes |
| ONVIF | No |
| Max Resolution | 1920 x 1080 |
| Frame Rate | 60 |
| RTSP | Yes |
| RTMP | No |
| HDMI | Yes |
| DVI-D using HDMI to DVI Cable | Y |
| HD-SDI | Yes |
| Component via VGA Dongle | No |
| Composite PAL NTSC | Yes |
| Independent Video Channels | 2 |
| Streams | 4 |
| Two Way Audio | No |
| SD or USB Local Recording | Yes |
| RS232 | No |
| RS485 | No |
| PoE | No |
| Hardware to Hardware Latency mS | 100 |
