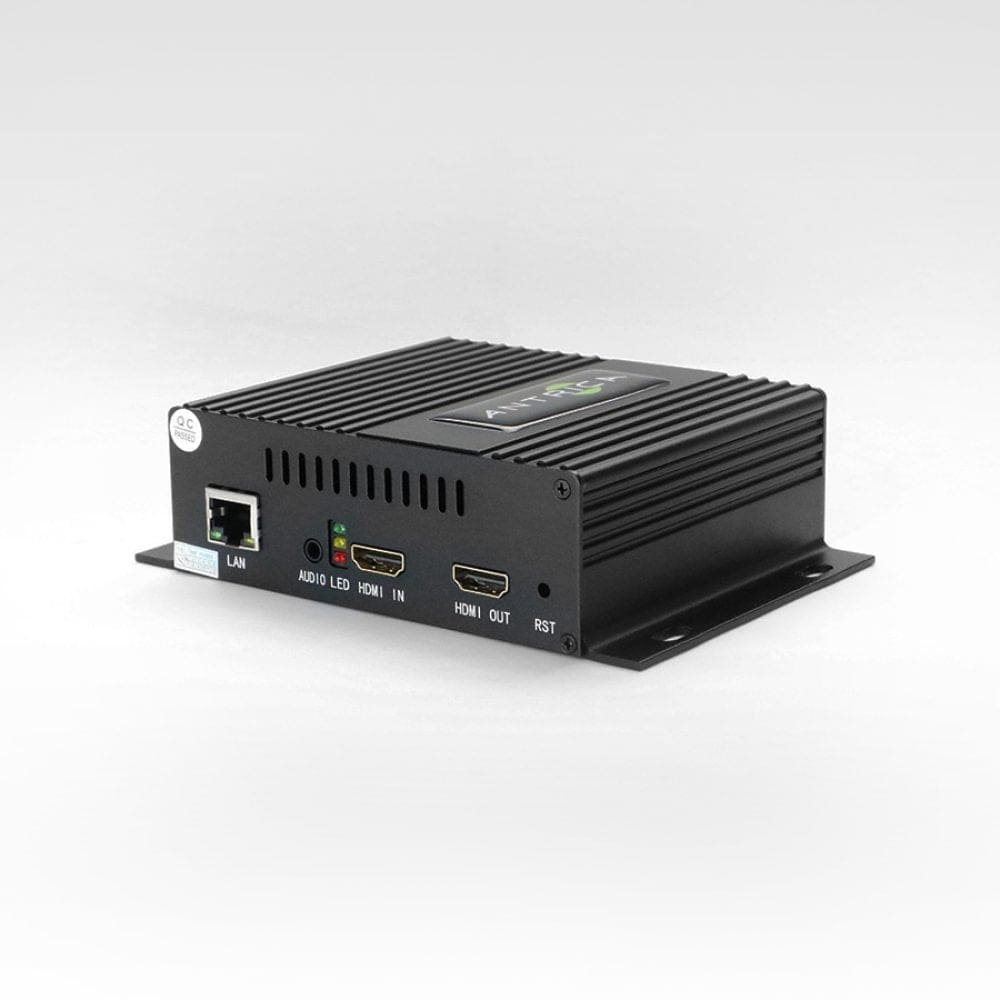

ANT-2010 HDMI & DVI Input H.264 HD 1080P60 Set Top Box Video Encoder

0 out of 5 based on 0 customer ratings
Product Code: ANT-2010.

** Please note this product has been replaced by the ANT-2200, click HERE to view this product**

Key Features

  • 1920 x 1800 P60 Max Resolution
  • H.264 Simple Encoder
  • HDMI  Inputs & Outputs
  • HTTP, RTSP, RTMP and MPEG-TS over UDP Streaming Supported
  • Unicast and Multicast MPEG-TS

Product Overview

ANT-2010 dual Stream HDMI & DVI Input H.264 HD 1080P60 Video Encoder, capable of up to a maximum 1920 x 1080 at 60 frames per sec encode with dual  streaming using an IP LAN ethernet connection. Ideal for encoding the output of a set top box for streaming to other locations or recording.

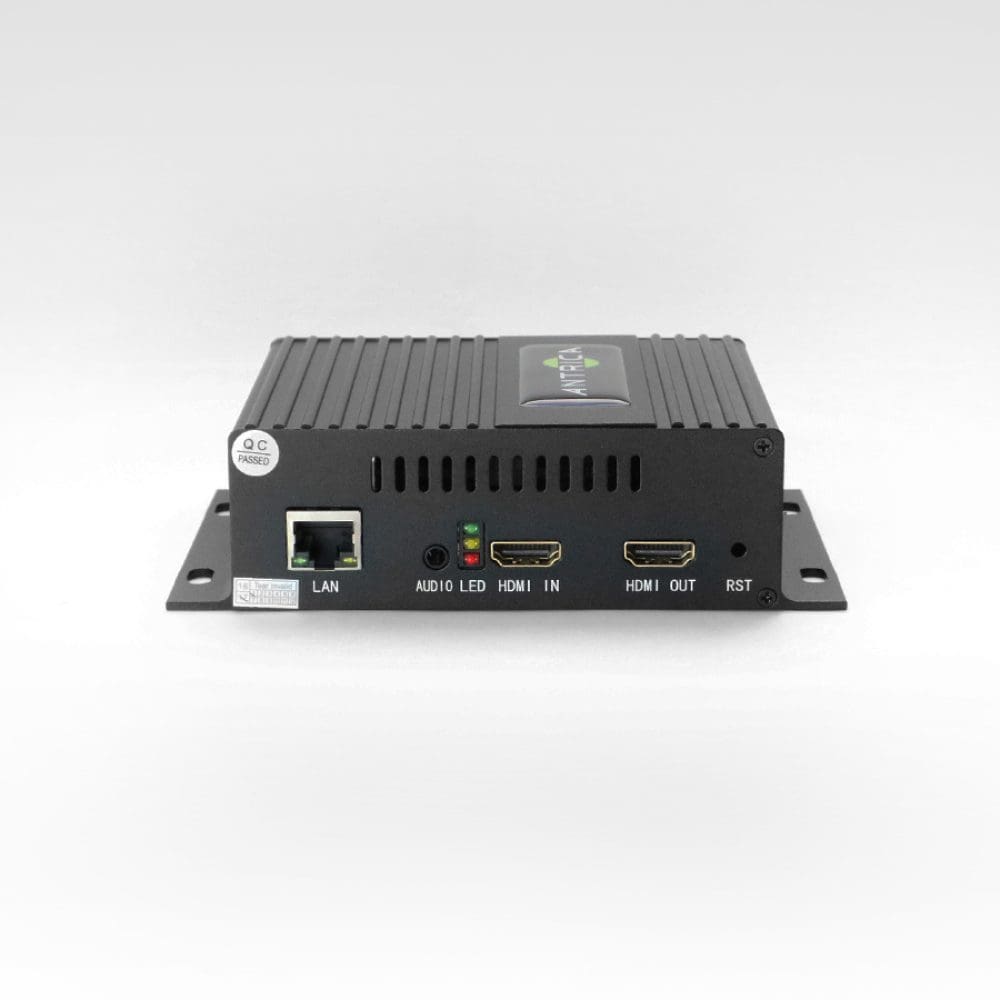

The inputs are HDMI & DVI. Inputs and outputs are provided to allow for signal bypassing or looping.

Multiple streaming formats are supported such as HTTP, RTSP, RTMP and MPEG-TS over UDP.

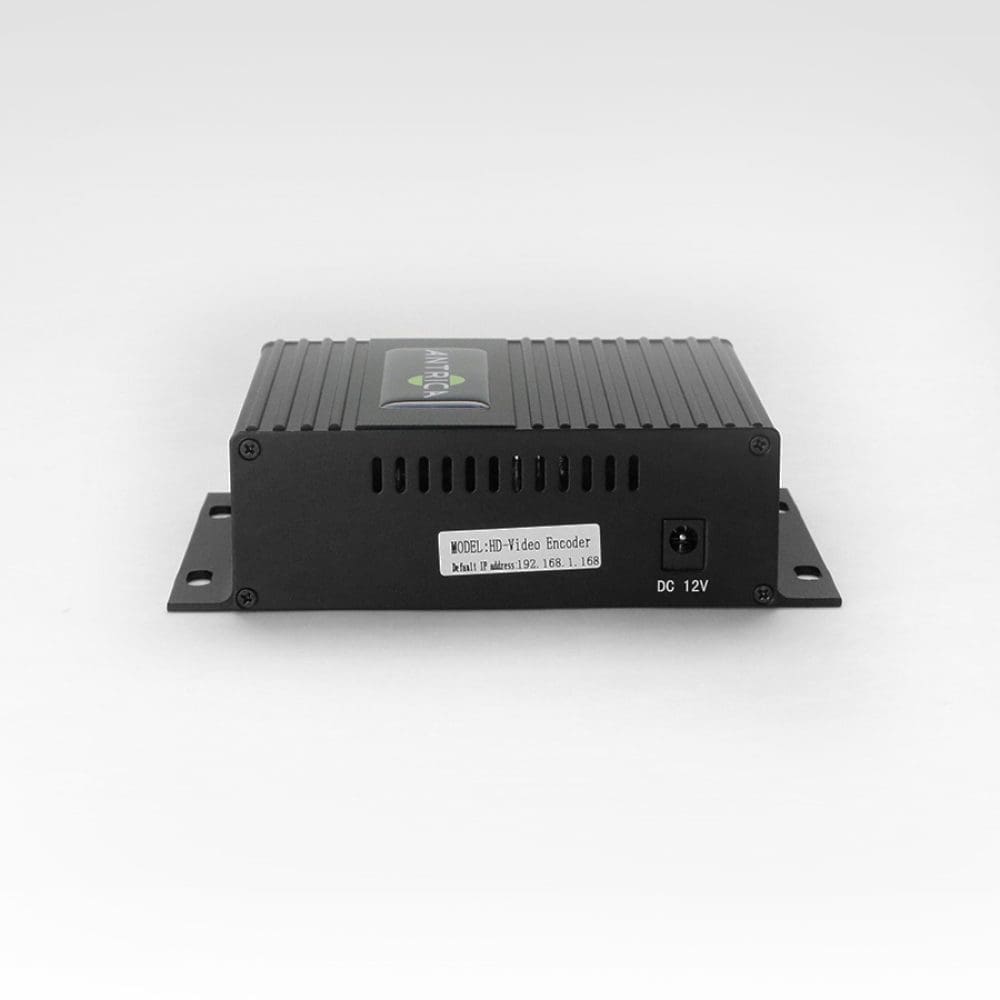

The encoder is powered via 12V.

AAC and MP3 audio is supported with embedded audio in HDMI.

There is no RS232/485/422 2 way serial data communication, motion detection , sensor and alarm I/O, please see the ANT-35000A or ANT-35000H for this feature.

This encoder is NOT fully ONVIF compliant though does offer ONVIF discovery of profiles only

  • 1 x HDMI or DVI with dongle
  • H.264 HD Video Encoder
  • Up to 1920 x 1080 at 60 frames per sec encode
  • Dual streaming using an IP LAN ethernet connection.
  • HDMI inputs and outputs allow for signal bypassing or looping.
  • HTTP, RTSP, RTMP and MPEG-TS over UDP.
  • Powered via 12V.
  • AAC G711 and MP3 audio
  • Embedded audio in HDMI.
System Mode Encoder
System Standards ONVIF Discovery, RTSP, RTMP,HTTP, MPEG-TS
System Latency >150mS (system dependant)
Video Compression H.264
Video Profile Base, Main or High
Video Frame Rate 1-60 fps
Video Bit Rate 16-12 mbps
Video Mode GOP
Video Bit Rate Control CBR, VBR
Video Min Resolution 320 x 180
Video Max Resolution 1920 x 1080
Video Number of Streams Primary 1 x H.264 / Secondary 1 x H.264
Video Inputs 1 x HDMI (DVI)
Video Input Combinations Any 1 Input
Video Outputs 1 x HDMI (DVI)
Video Output Combinations Any 1 Output
Video On Screen Display English
Audio Mode Simplex Stereo
Audio Compression G.711 + AAC + MP3
Audio Sample Rate G711 = 8Khz , AAC= 32/44.1kHz MP3 = 32/44.1kHz
Audio Bit Rate G711=64kbps, AAC= 24-256kb/s MP3 = 24-256kb/s
Audio Streaming 1 Way Stereo
Audio Inputs Analogue Stereo Jack (1vpp) or Embedded Audio
Audio Outputs Embedded Audio
Network Interface 10-100 Ethernet RJ45
Network Protocols IPv4, TCP, UDP, IGMP(Multicast), DHCP,HTTP, RTP,RTSP, DNS
Network Security Password Protection
Network Configuration SDK, WEB
Data Type N/A
Data Interface N/A
Data Protocol N/A
Data Alarm N/A
Data Sensor N/A
Event Sources N/A
Event Actions N/A
Power Supply 12v
Power Adapter input volts AC 110-240v
Power Adapter Output Voltage 12v DC
Power Consumption 9.6w
Recording Edge Storage N/A
Temperature Operating Range 0 + 50C
Physical Dimensions 147 x 100 x 40mm
Physical Weight 295g
Physical Housing Black Aluminum
General Certifications CE , FCC, RoHS
General Software N/A
General Warranty 12 Months
General Remote N/A
General Reset Web or external
Control & Set Up Set Up Web Interface API Document
Control API
Upgrade Firmware Upgrade
In the Box Contents Encoder , 12v Power Supply & Lead, HDMI, & Fixing Kit
Power Cable/adapter 1 of either UK/US/EU/China/Aus

A few of the applications are:

  • Encode a PC screen and send to a VMS for monitoring, recording and litigation purposes.
  • Encode video from a piece of medical equipment and send to remote consultant to oversee the procedure.
  • Encode the output of a set top box for viewing remotely elsewhere

This product is not limited to the markets and applications described.
