ANT-36000A HDMI,3G HD-SDI & Composite Output Decoder- 100 Channel & Quad view ONVIF H.264 HD 1080P60 IP Video Decoder
Please note this product (ANT-36000 and ANT-36000A) is now EOL (end of life) with extremely limited stock due to the current global component supply issues being faced. We are in the process of developing a replacement product which at this time is estimated to be September / October 2022.
For any questions please email sales@antrica.com as we have alternative decoders available which may suit your requirements.
We do apologise for any inconvenience. Antrica
****************************************************************************************************************************
Key Features
- 1920 x 1080 P60 Max Resolution Single Stream Decode
- Can discover & display most IP streams and conformant to the most widely used CCTV standards
- Up to 100 programmable Streams, HDMI, 3G HD-SDI & Composite Outputs
- TCP/IP, Multicast, UDP, HTTP, DHCP, DNS, Dynamic DNS, RTP, RTSP, ONVIF, MPEG-TS Streams Supported
Product Overview

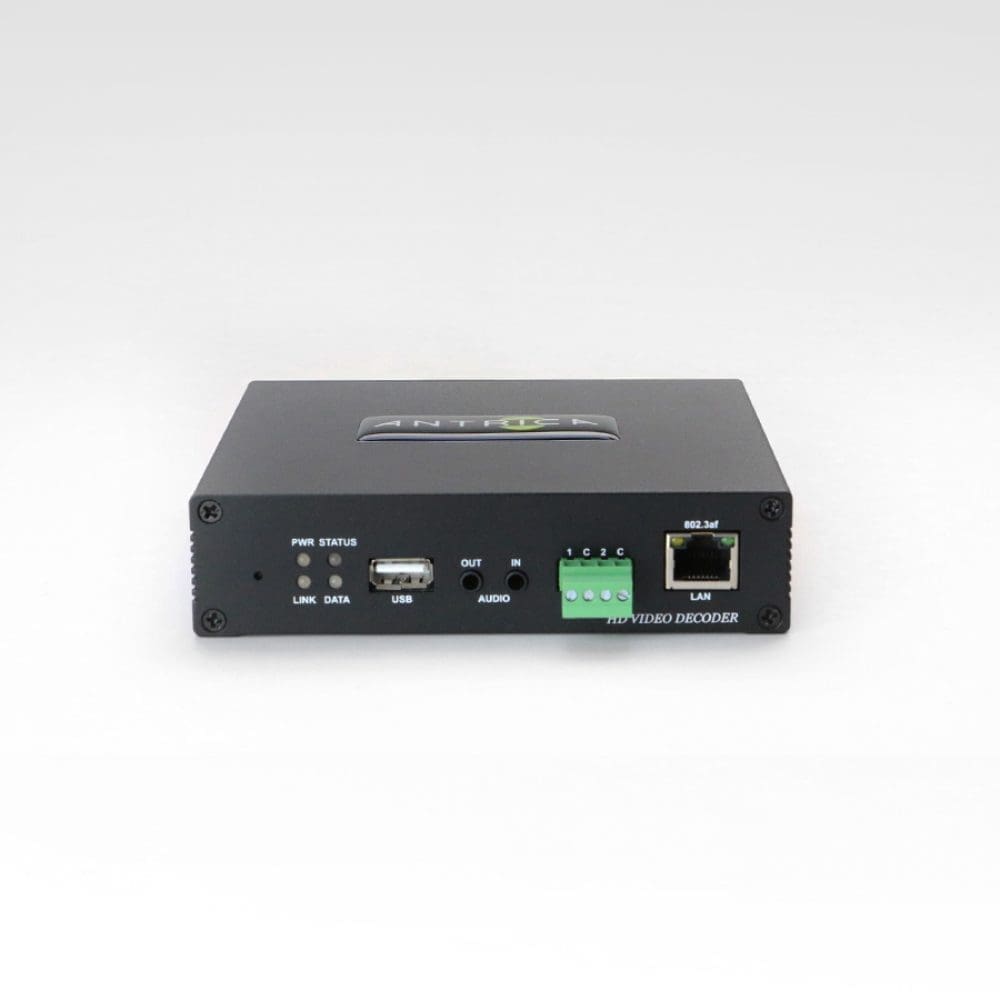

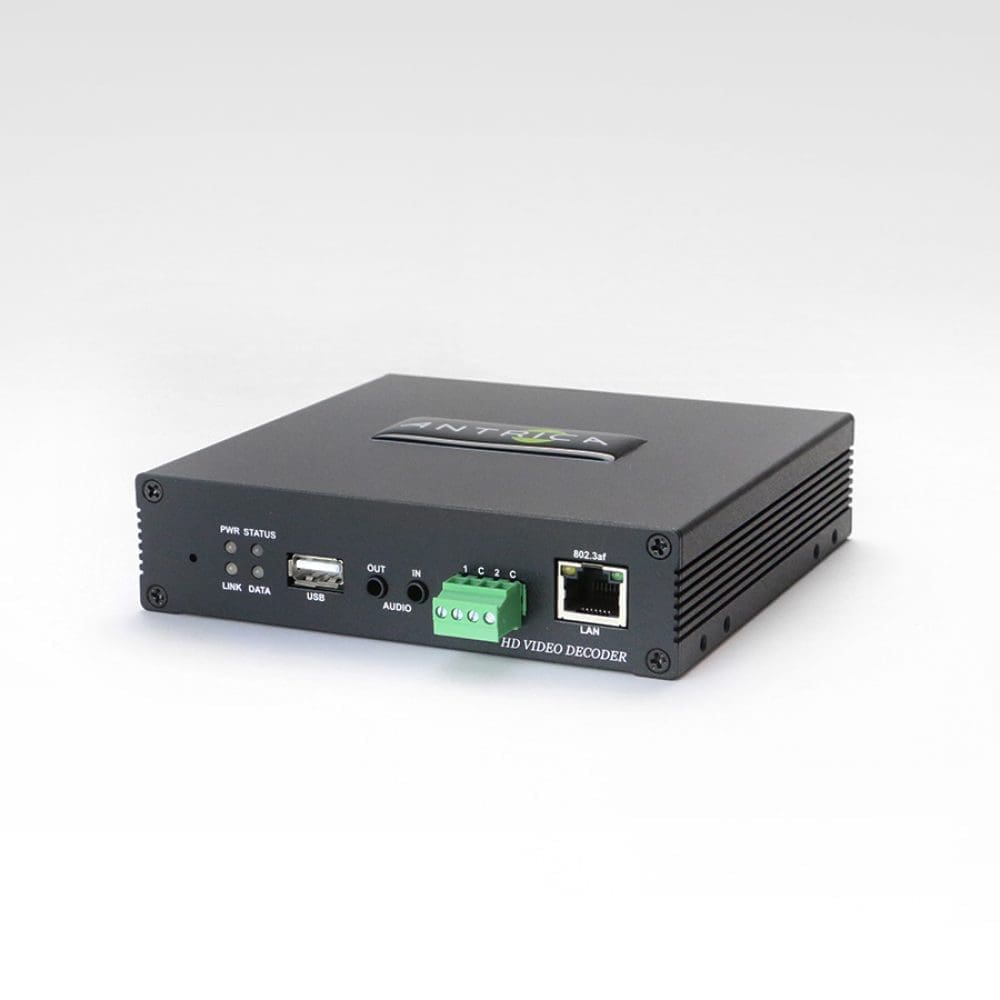

ANT-36000A HDMI,3G HD-SDI & Composite Output H.264 HD 1080P60 Video Decoder, capable of up to a maximum 1920 x 1200 at 60 frames per sec decode using an IP LAN ethernet connection. Can discover & display most IP streams and conformant to the most widely used CCTV standards.
Up to 100 IP programmable stream decode using an IOS / Android app to control. The ANT-36000A can display in single or quad view. Quad view decodes four 1080P streams and scales these to fit a 1080P display output (Quad View)
The inputs are 3G HD-SDI, HDMI DVI and Composite with full discovery & display most IP streams and conformant to the most widely used CCTV standards discovery/control, meaning PTZ cameras can be controlled through this decoder when connected to a joystick. The inputs and outputs are provided to allow for signal bypassing or looping.
Multiple streaming formats are supported such as TCP/IP, Multicast, UDP, HTTP, SMTP, FTP, DHCP, DNS, Dynamic DNS, RTP, RTSP, MPEG-TS, SNMP.
The decoder can be powered via 12V or PoE.
AAC and G711 two way audio is supported with embedded audio in HD-SDI & HDMI or analogue audio jack.
RS232/485/422 2 way serial data communication, motion detection, sensor and alarm I/O.
Rack mountable with 1U rack mount kit available supporting up to 3 encoders.
If you are interested in the ANT-36000A and reside in the USA, please visit our US page.
- HDMI, 3G HD-SDI & Composite Output
- ONVIF RTSP MPEG-TS H.264 HD Video Decoder
- Up to 1920 x 1080 at 60 frames per sec encode
- Streaming/decode using an IP LAN ethernet connection
- ONVIF profile S control for integration with PTZ Cameras
- The inputs and outputs allow for signal bypassing or looping
- UDP, HTTP, SMTP, FTP, DHCP, DNS, Dynamic DNS, RTP, RTSP, MPEG-TS, SNMP
- Powered via 12V or PoE
- AAC and G711 two way audio
- Embedded audio in 3G HD-SDI & HDMI or analogue audio
- RS232/485/422 2 way serial data communication
- Motion detection, Sensor and alarm I/O
- Rack mountable 3 per 1U rack kit.
System | Mode | Decoder |
System | Standards | ONVIF Profile S, RTSP, RTP, RTMP, MPEG-TS |
System | Latency | >150mS (system dependant) |
Video | Compression | H.264 |
Video | Profile | Baseline & High |
Video | Frame Rate | 1-60 fps |
Video | Bit Rate | 32-16 mbps |
Video | Mode | GOP |
Video | Bit Rate Control | CBR, VBR |
Video | Min Resolution | 352 x 240 |
Video | Max Resolution | 1920 x 1080 |
Video | Number of Streams | Up to 100 Single View Decode or 4 x 1080p30 Quad Mode |
Video | Inputs | N/A |
Video | Input Combinations | N/A |
Video | Outputs | 1 x HDMI (DVI) , 1 x 3G-SDI , 1 x Composite |
Video | Output Combinations | All 3 Available Simultaneously |
Video | On Screen Display | Multi-Lingual |
Audio | Mode | Full Duplex Stereo |
Audio | Compression | G.711 + AAC |
Audio | Sample Rate | G711 = 8Khz , AAC= 32/44.1/48kHz |
Audio | Bit Rate | G711=64kbps, AAC= 64/128kb/s |
Audio | Streaming | 2 Way Stereo |
Audio | Inputs | Analogue Stereo Jack (1vpp) or Embedded Audio |
Audio | Outputs | Analogue Stereo Jack (1vpp) or Embedded Audio |
Network | Interface | 10-100 Ethernet RJ45 |
Network | Protocols | IPv4/v6, TCP, UDP, IGMP(Multicast), ICMP, DHCP,HTTP, HTTPS, RTP,RTSP MPEG-TS, FTP, SNMP, SMTP,DNS |
Network | Security | Password Protection, Ip Address Filtering, HTTPS |
Network | Configuration | SDK, ONVIF, WEB |
Data | Type | Serial 2 Way |
Data | Interface | RS232, RS422, RS485 |
Data | Protocol | Pelco D + others |
Data | Alarm | 2 Output + Buzzer |
Data | Sensor | 2 Input |
Event | Sources | Motion, Sensor Input, Client Disconnection |
Event | Actions | Email, FTP, PTZ Preset , Alarm Control |
Power | Supply | PoE or 12v |
Power | Adapter input volts | AC 110-240v |
Power | Adapter Output Voltage | 12v DC |
Power | Consumption | 9.6w |
Recording | Edge Storage | N/A |
Temperature | Operating Range | -10 + 50C |
Physical | Dimensions | 133 x 125 x 32mm |
Physical | Weight | 470g |
Physical | Housing | Black Aluminum |
General | Certifications | CE , FCC, RoHS |
General | Software | IP Finder |
General | Warranty | 12 Months |
General | Remote | N/A |
General | Reset | Web or external |
Control & Set Up | Set Up | Web Interface API Document |
Control | API | |
Upgrade | Firmware Upgrade | |
In the Box | Contents | Decoder , 12v Power Supply & Lead & Fixing Kit |
Power Cable/adapter | 1 of either UK/US/EU/China/Aus |

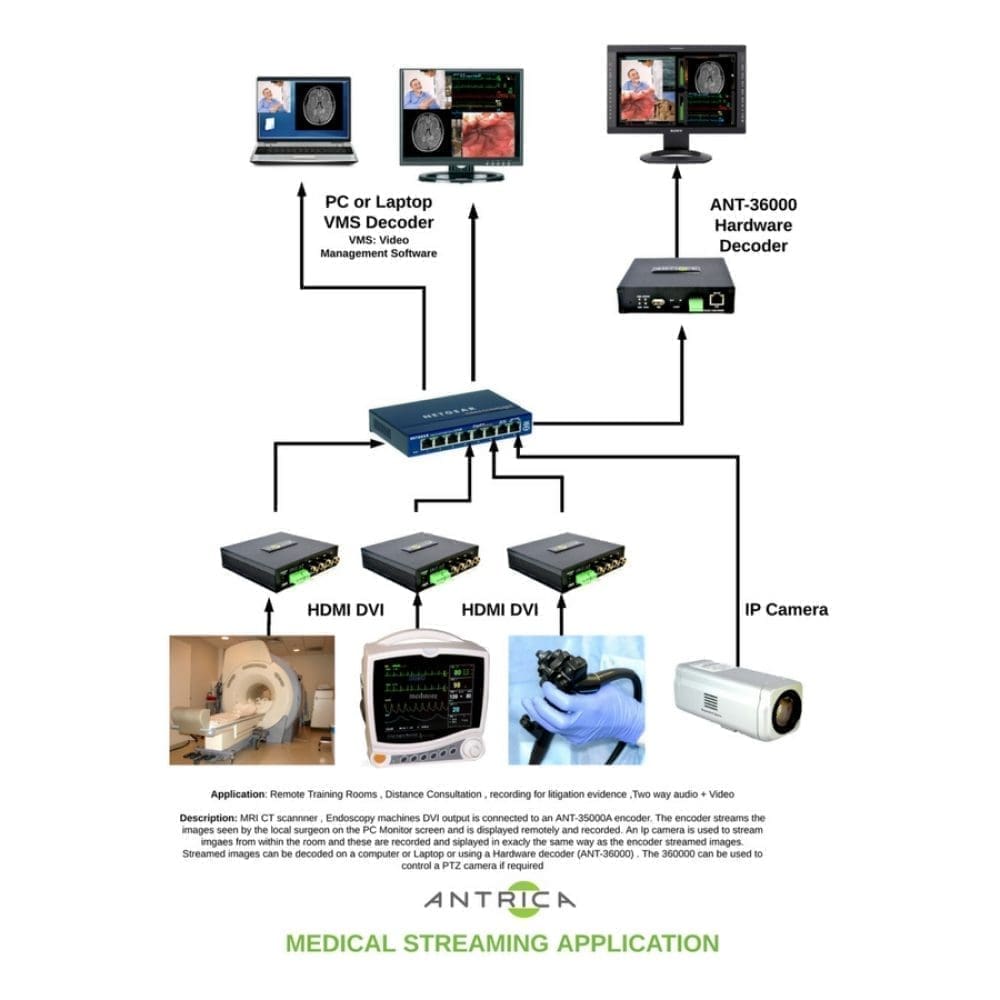

A few of the applications are:
- Decode an ONVIF PTZ camera and control remotely
- Decode upto 100 IP cameras and switch/view/control using an IOS or Android app
- Simple quad view or single view of up to 4 cameras
This product is not limited to the markets and applications described.
Please download or full application catalogue here.
