- HDMI,3G HD-SDI, DVI Inputs.
- ONVIF H.264 4K UHD HD Video Encoder
- Up to 4096 x 2160 at 24 fps or 3840 x 2160 at 30 fps
- Quad streaming using an IP LAN ethernet connection
- Inputs are 3G HD-SDI, HDMI DVI
- ONVIF profile S control for integration with VMS software, such as Milestone / Exac etc
- The inputs and outputs allow for signal bypassing or looping
- MPEG-TS, UDP, HTTP, SMTP, FTP, DHCP, DNS, dDNS, RTP, RTSP & SNMP Streams Supported
- On board recording via USB
- Powered via 12V or PoE
- AAC and G711 two way audio
- Embedded audio in HD-SDI & HDMI or analogue
- RS232/485/422 2 way serial data communication
- Motion detection, Sensor and alarm I/O
- Rack mountable

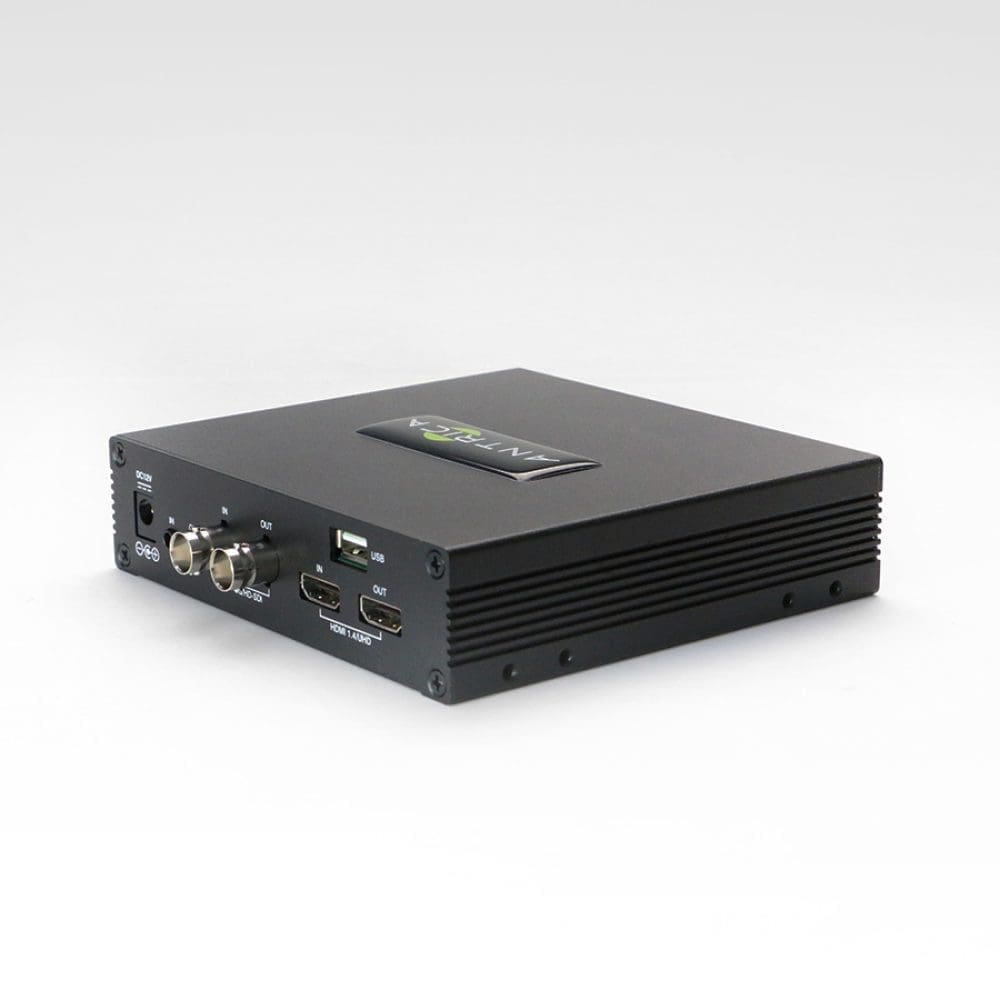

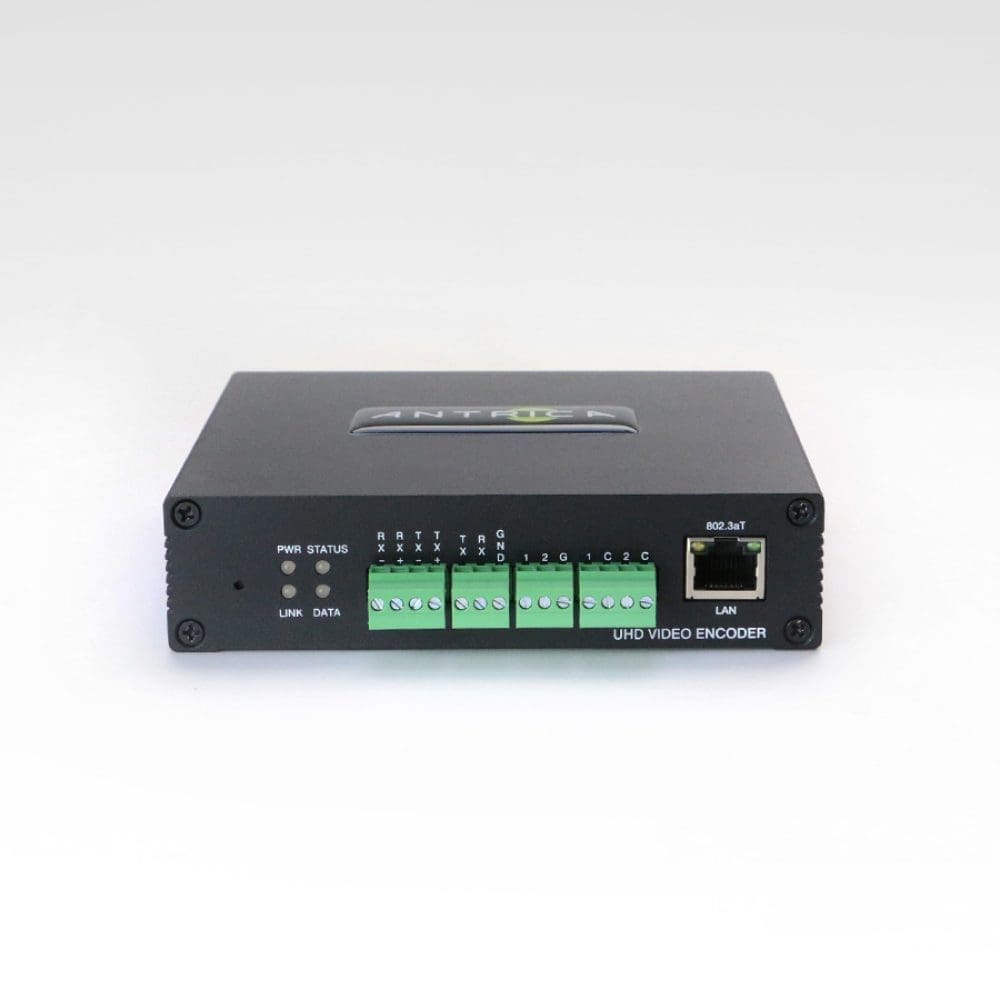

ANT-38000 4K UHD HDMI, 3G HD-SDI ONVIF H.264 4KP30 Video Encoder
Key Features
- 4096 x 2160 P24 or 3840 x 2160 P30 Resolution
- ONVIF VMS – Profile S H.264 Encoder
- HDMI & 3G HD-SDI Inputs & Outputs (UHD 4K via HDMI only)
- MPEG-TS, UDP, HTTP, SMTP, FTP, DHCP, DNS, dDNS, RTP, RTSP & SNMP Streams Supported
Product Overview
ANT-38000 4K UHD HDMI,HD-SDI & Composite Input ONVIF H.264 4KP30 Video Encoder, capable of up to a maximum 4096 x 2160 at 24 fps (frames per second) or 3840 x 2160 at 30 fps (frames per second) encode with quad streaming using an IP LAN ethernet connection.
The inputs are 3G HD-SDI, HDMI DVI and Composite with full ONVIF profile S control for integration with VMS software, such as Milestone / Exac etc. The inputs and outputs are provided to allow for signal bypassing or looping.
Multiple streaming formats are supported such as MPEG-TS, UDP, HTTP, SMTP, FTP, DHCP, DNS, dDNS, RTP, RTSP & SNMP.
The encoder has on board recording via USB for monitoring and litigation purposes and can be powered via 12V or PoE.
AAC and G711 two way audio is supported with embedded audio in HD-SDI & HDMI or analogue.
RS232/485/422 2 way serial data communication, motion detection , sensor and alarm I/O.
Rack mountable with 1U rack mount kit available supporting up to 3 encoders.
| System | Mode | Encoder |
| System | Standards | ONVIF Profile S, RTSP, RTP, RTMP, MPEG-TS |
| System | Latency | >150mS (system dependant) |
| Video | Compression | H.264 (MJPEG) |
| Video | Profile | Baseline & High |
| Video | Frame Rate | 1- 60fps (60fps @ 1080P Res) |
| Video | Bit Rate | 32-25 mbps |
| Video | Mode | GOP |
| Video | Bit Rate Control | CBR, VBR |
| Video | Min Resolution | 352 x 240 |
| Video | Max Resolution | 4096 x 2160 P24 (HDMI) or 3840 x 2160 P30 (HDMI) |
| Video | Number of Streams | Primary 1 x H.264 / Secondary 3 x H.264 or MJPEG |
| Video | Inputs | 1 x HDMI (DVI) , 1 x 3G-SDI |
| Video | Input Combinations | Any 1 Input |
| Video | Outputs | 1 x HDMI (DVI) , 1 x 3G-SDI Bypass |
| Video | Output Combinations | Any 1 Output |
| Video | On Screen Display | Multi-Lingual |
| Audio | Mode | Full Duplex Stereo |
| Audio | Compression | G.711 + AAC |
| Audio | Sample Rate | G711 = 8Khz , AAC= 32/44.1/48kHz |
| Audio | Bit Rate | G711=64kbps, AAC= 64/128kb/s |
| Audio | Streaming | 2 Way Stereo |
| Audio | Inputs | Analogue Stereo Jack (1vpp) or Embedded Audio |
| Audio | Outputs | Analogue Stereo Jack (1vpp) or Embedded Audio |
| Network | Interface | 10-100 Ethernet RJ45 |
| Network | Protocols | IPv4/v6, TCP, UDP, IGMP(Multicast), ICMP, DHCP,HTTP, HTTPS, RTP,RTSP, FTP, SNMP, SMTP,DNS |
| Network | Security | Password Protection, Ip Address Filtering, HTTPS |
| Network | Configuration | SDK, ONVIF, WEB |
| Data | Type | Serial 2 Way |
| Data | Interface | RS232, RS422, RS485 |
| Data | Protocol | Pelco D + others |
| Data | Alarm | 2 Output + Buzzer |
| Data | Sensor | 2 Input |
| Event | Sources | Motion, Sensor Input, Client Disconnection |
| Event | Actions | Email, FTP, PTZ Preset , Alarm Control, Recording |
| Power | Supply | PoE or 12v |
| Power | Adapter input volts | AC 110-240v |
| Power | Adapter Output Voltage | 12v DC |
| Power | Consumption | 12w |
| Recording | Edge Storage | USB |
| Temperature | Operating Range | -10 + 50C |
| Physical | Dimensions | 133 x 125 x 32mm |
| Physical | Weight | 620g |
| Physical | Housing | Black Aluminum |
| General | Certifications | CE , FCC, RoHS |
| General | Software | IP Finder + VMS |
| General | Warranty | 12 Months |
| General | Remote | N/A |
| General | Reset | Web or external |
| Control & Set Up | Set Up | Web Interface API Document |
| Control | API | |
| Upgrade | Firmware Upgrade | |
| In the Box | Contents | Encoder , 12v Power Supply & Lead & Fixing Kit |
| Power Cable/adapter | 1 of either UK/US/EU/China/Aus |
A few of the applications are:
- Encode a 4K UHD PC screen and send to a VMS for monitoring, recording and litigation purposes
- Encode 4K UHD video from a piece of medical equipment and send to remote consultant to oversee the procedure
- Encode the screen of a NVR or DVR for viewing remotely elsewhere
This product is not limited to the markets and applications described.
