ANT-3B200SE 3G HDSDI Box IP Camera ONVIF Profile S Sport Indoor Camera HD
Please note – we are no longer actively selling a dedicated range of IP cameras, we may have a few models available in our warehouse – please feel free to email us sales@antrica.com with your requirement, currently the only ‘active’ product we are selling as a camera is our ANT-ZB1200 zoom block camera with integrated encoder.
Key Features
- 1920 x 1080P60 Max Resolution
- ONVIF VMS – Profile S Compatible Camera
- 3G HD-SDI Output
- Lens Dependant Optical Zoom C/CS supplied
Product Overview

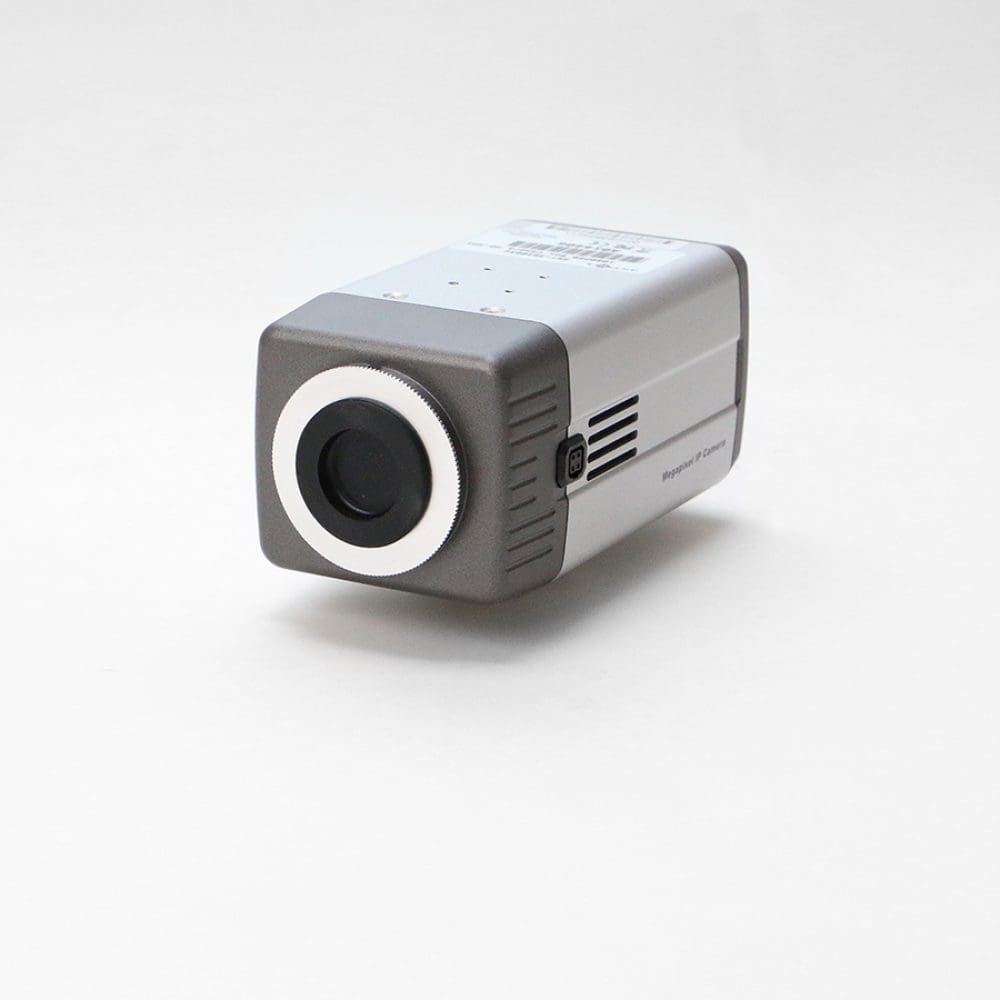

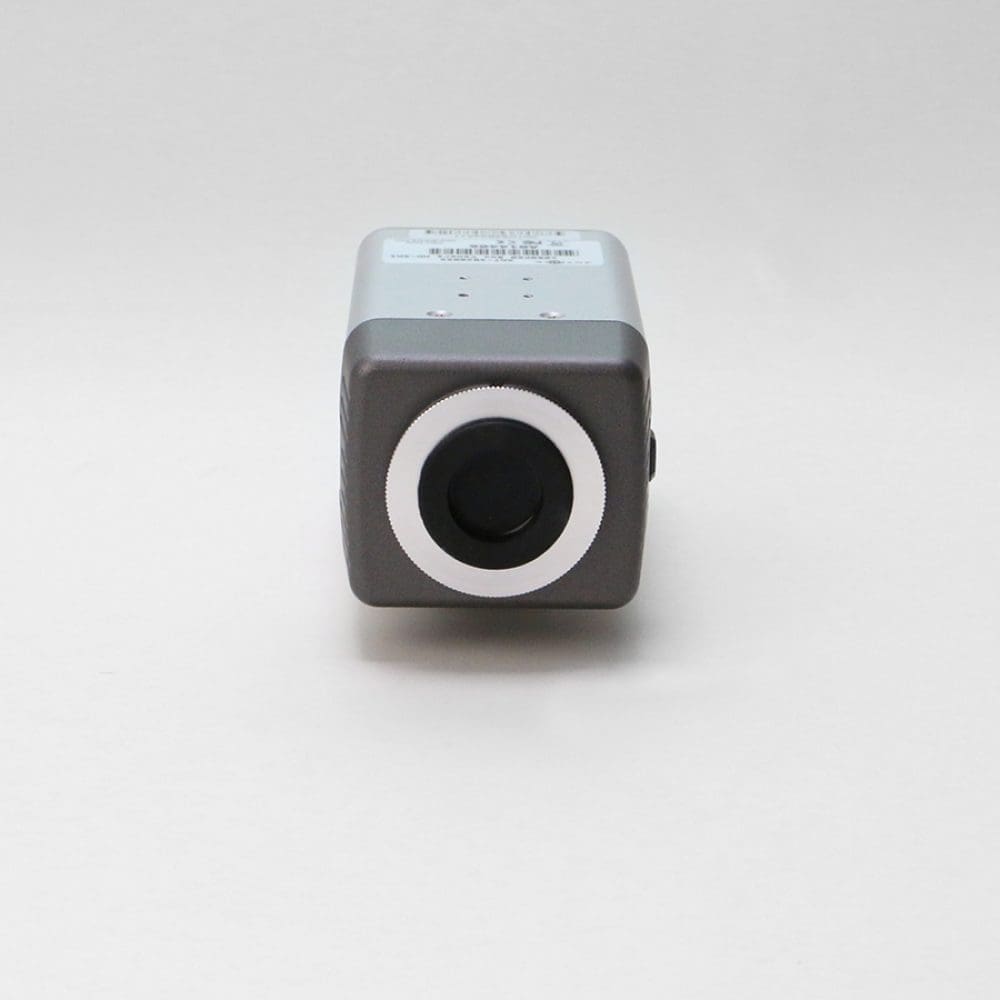

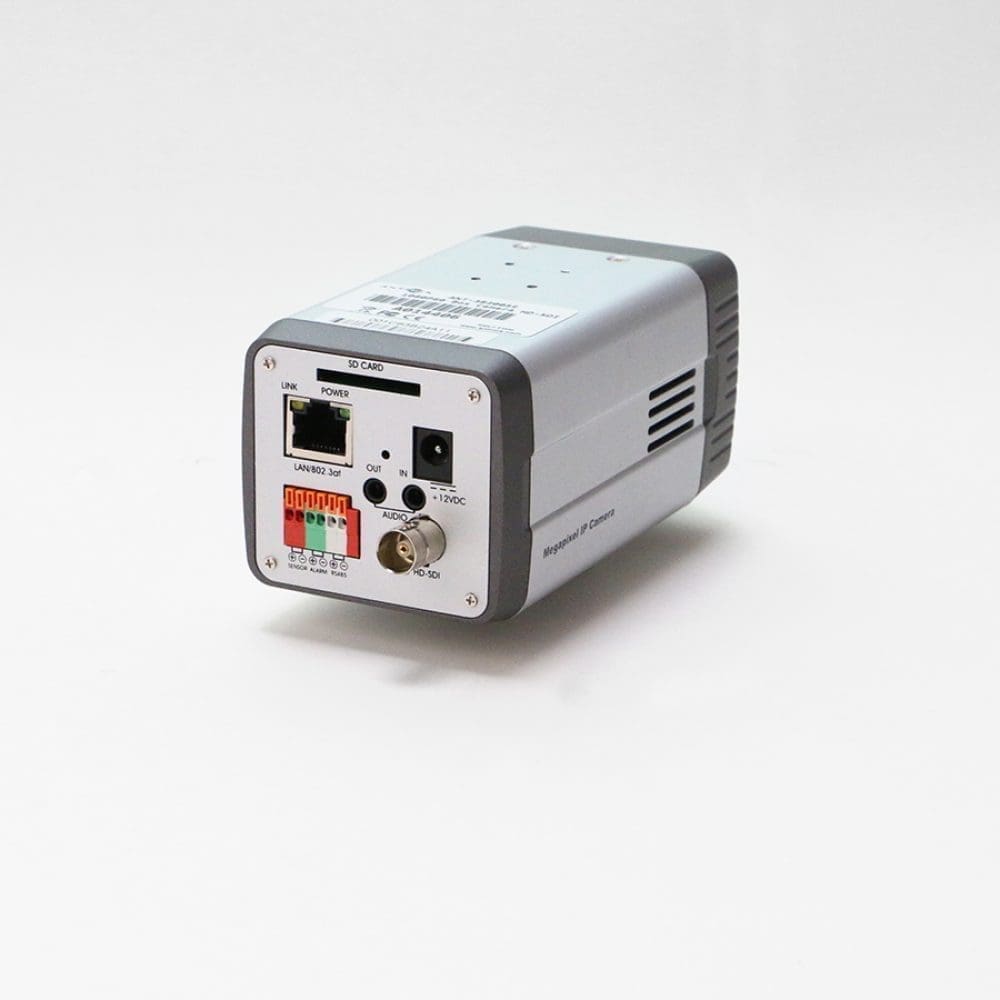

ANT-3B200SE 3G HDSDI Box IP Camera ONVIF Profile S Sport Indoor Camera is the latest generation 1080P60 box camera offering 60 Frames Per Second performance at 1920 x 1080 plus 3G HD-SDI video output. It is suitable for indoor use as conferencing or sports camera.
The output is 3G HD-SDI for low latency and t has full ONVIF profile S streaming for integration with VMS software, such as Milestone / Exac etc.
Compression is H.264 (MJPEG or RTSP) , profile Baseline & High with output streams over LAN / WAN.
The camera has on board recording via edge storage USB for monitoring and litigation purposes & can be powered via 12V or PoE. RTSP MPEG-TS streaming also supported Lu’s RTMP for YouTube integration.
AAC and G711 two way audio is supported with embedded audio in HD-SDI.
RS232/484 2 way serial data communication for PTZ Control also with motion detection , sensor and alarm I/O.
Dimensions: 66 x 67 x 127
Weight: 376g
Housing: Aluminum
- 3G HD-SDI Output
- ONVIF H.264 HD Video Indoor Camera
- Up to 1920 x 1200 at 60 frames per sec encode
- Streaming using an IP LAN ethernet connection.
- Lens Dependant Optical Zoom C/CS mount
- ONVIF profile S control for integration with VMS software, such as Milestone / Exac etc.
- MJPEG or RTSP Streaming plus MPEG-TS RTMP
- On board edge recording via SD card
- Powered via 12V or PoE.
- AAC and G711 two way audio
- Embedded audio in 3G HD-SDI.
- RS232/484 2 way serial data communication
- Motion detection, Sensor and alarm I/O.
| System | Mode | Encoder Camera |
| System | Standards | ONVIF Profile S, rtsp rtmp mpeg-ts |
| System | Latency | End to End >150mS (system dependant) |
| Camera | Image Sensor | 1 / 2.8″ CMOS |
| Camera | Lens Type | Auto DC Iris |
| Camera | Lens Mount | C/CS Mount |
| Camera | Optical Zoom | Lens Dependant |
| Camera | Digital Zoom | Lens Dependant |
| Camera | Focal Length | Lens Dependant |
| Camera | Appature Ratio | Lens Dependant |
| Camera | Min Illumination | 0.07 LUX (Colour) |
| Camera | Shutter Speed | 1/60 to 1/50000s |
| Camera | Privacy Masking | 8 Reigons |
| Camera | Flip Mode | H + V |
| Camera | Image Enhancement | AE,AWB,AGC,TDN,DNR,BLC,ACCE,WDR,DSS,EIS,DEFOG |
| Camera | IR LED’s | N/A |
| Camera | Angle of View | Lens Dependant |
| Video | Compression | H.264 (MJPEG) |
| Video | Profile | Baseline & High |
| Video | Frame Rate | 1-60 fps |
| Video | Bit Rate | 32kbits/sec to 16MB/s |
| Video | Mode | GOP VBR & CBR |
| Video | Min Resolution | 352 x 240 |
| Video | Max Resolution | 1920 x 1080 |
| Video | Number of Streams | 4 x h.264 (+MJPEG) |
| Video | Inputs | N/A |
| Video | Input Combinations | N/A |
| Video | Outputs | 3G HD-SDI |
| Video | Output Combinations | N/A |
| Audio | Mode | full duplex stereo |
| Audio | Compression | G711 + AAC |
| Audio | Sample Rate | G711=32Khz , AAC= 32kHz |
| Audio | Bit Rate | G711=32/64kb/s, AAC= 64-256kb/s |
| Audio | Streaming | 2 way stereo |
| Audio | Inputs | analogue jack |
| Audio | Outputs | analogue jack |
| Network | Interface | 10-100 Ethernet |
| Protocols | IP v4/v6 , TCP, UDP, IGMP, DHCP, HTTP, HTTPS, RTP, RTSP, FTP, SNMP, SMTP, UPnP,WS-Discovery, 0 CONFIG, DDNS | |
| Security | Password Protection | |
| Configuration | SDK, ONVIF, WEB | |
| Data | Type | Serial 2 Way |
| Interface | RS232, RS485 | |
| Protocol | Pelco D + others | |
| Alarm | 1 Output | |
| Sensor | 1 Input | |
| Power | Supply | PoE or 12v DC |
| Adapter input volts | AC 110-240v | |
| Output Voltage | 12v DC | |
| Consumption | 9w | |
| Recording | Edge Storage | SD Card |
| Temperature | Operating Range | -10 + 50C |
| Physical | Dimensions | 66 x 67 x 127 |
| Weight | 376g | |
| Housing | Aluminum plastic mix | |
| General | Certifications | CE , FCC, RoHS |
| Software | IP Finder + VMS | |
| Warranty | 12 Months | |
| Remote | N/A | |
| Reset | Web or external | |
| Control & Set Up | Set Up | Web Interface API Document |
| Control | Web or ONVIF | |
| Upgrade | Firmware Upgrade | |
| In the Box | Contents | Camera , 12v Power Supply |
| Power Cable/adapter | UK/US/EU/China/Aus |
A few of the applications are:
- Send CCTV video to VMS for recording / litigation purposes while with PTZ enabling full control
- Send video of sport to training / analysis software.
- Send video from conferencing for overview / analysis
This product is not limited to the markets and applications described.
