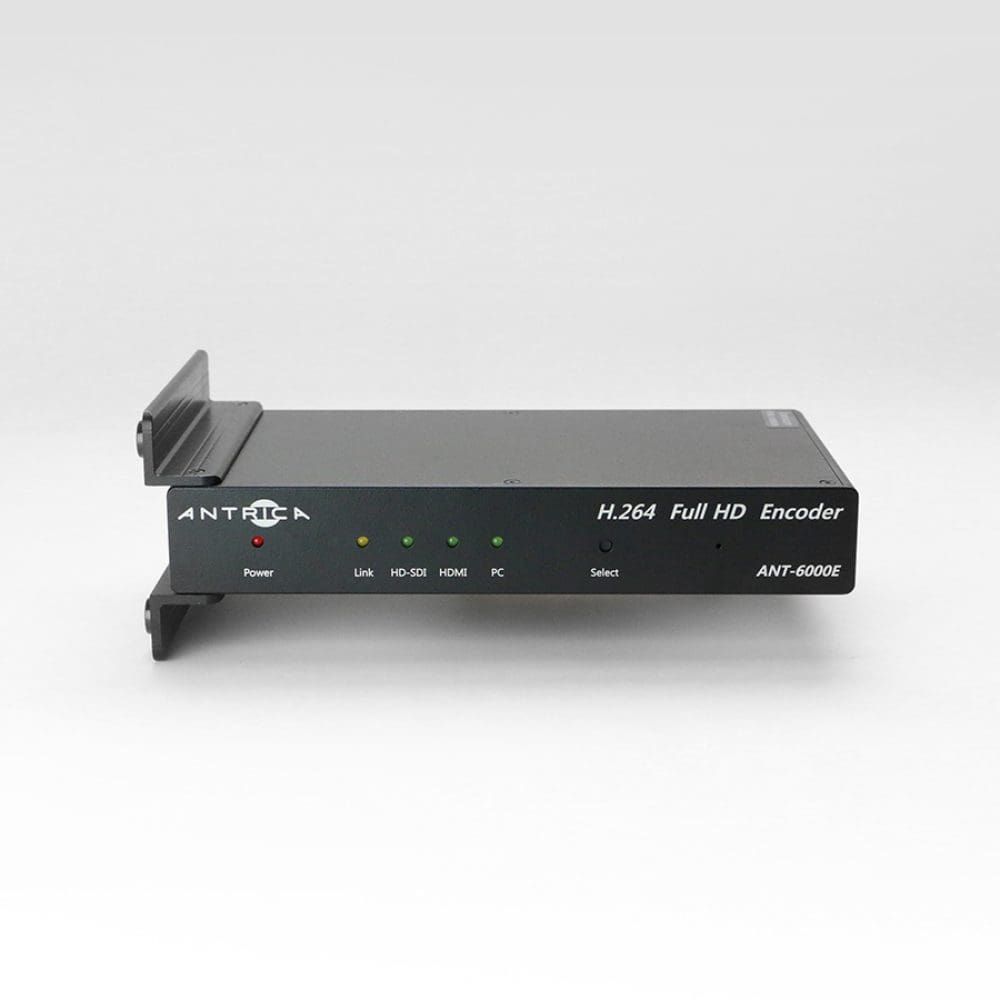

ANT-6000E HDMI,HD-SDI, DVI & VGA Input H.264 HD 1080P60 Low Latency Video Encoder
Key Features
- 1920 x 1080 P60 Max Resolution, Low Latency
- H.264 Video Encoder (Plus Low Latency with decoder)
- HDMI, HD-SDI, DVI & VGA Input
- TCP/IP, UDP, Multicast, DHCP, HTTP, RTSP, one to one proprietary (low latency) and MPEG-TS
Product Overview
ANT-6000E HDMI, 3G HD-SDI, DVI & VGA Input H.264 HD 1080P60 Low Latency Video Encoder, capable of up to a maximum 1920 x 1080 @ 60fps (frames per second) encode with single stream streaming using an IP LAN ethernet connection.
The inputs are HDMI, HD-SDI, DVI & VGA Output with low latency of 100ms when used together with the ANT-6000D video decoder. The inputs and outputs are provided to allow for signal bypassing or looping.
Multiple streaming formats are supported such as TCP/IP, UDP, Multicast, DHCP, HTTP, RTSP, one to one proprietary (low latency) and MPEG-TS
The encoder can be powered via 12V or PoE.
Two way audio is supported with embedded audio in HD-SDI & HDMI or analogue.
RS232 TTL 2 way serial data communication.
- HDMI, HD-SDI, DVI & VGA Output
- H.264 Low Latency HD Video Encoder & Decoder Set
- Up to 1920 x 1080 fps at 60 fps
- Single stream streaming using an IP LAN ethernet connection.
- Inputs are 3G HD-SDI, HDMI DVI and VGA
- Low Latency – 100ms glass to glass for minimal lag or latency (assumes zero monitor delay)
- The inputs and outputs allow for signal bypassing or looping.
- TCP/IP, UDP, Multicast, DHCP, HTTP, RTSP, one to one proprietary (low latency) and MPEG-TS Streams Supported
- Powered via 12V or PoE
- Two way audio
- Embedded audio in HD-SDI & HDMI or analogue
- RS232 TTL 2 way serial data communication
System | Mode | Encoder |
System | Standards | RTSP, MPEG-TS , Low Latency Proprietry |
System | Latency | 100mS (system dependant) |
Video | Compression | H.264 |
Video | Profile | Baseline |
Video | Frame Rate | 1- 60fps |
Video | Bit Rate | 32-40 mbps |
Video | Mode | GOP , Rand & Contra Refresh |
Video | Bit Rate Control | CBR, VBR |
Video | Min Resolution | 720 x 480 |
Video | Max Resolution | 1920 x 1080 |
Video | Number of Streams | Primary 1 x H.264 |

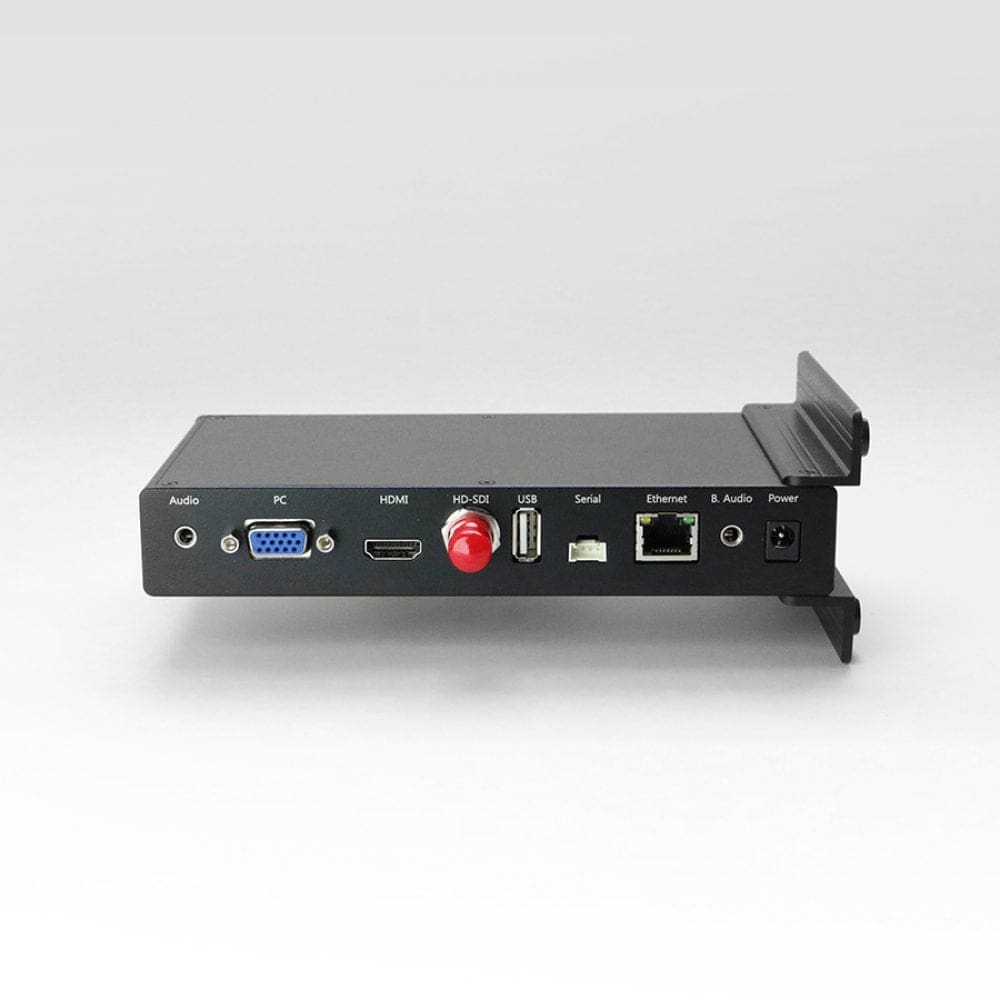

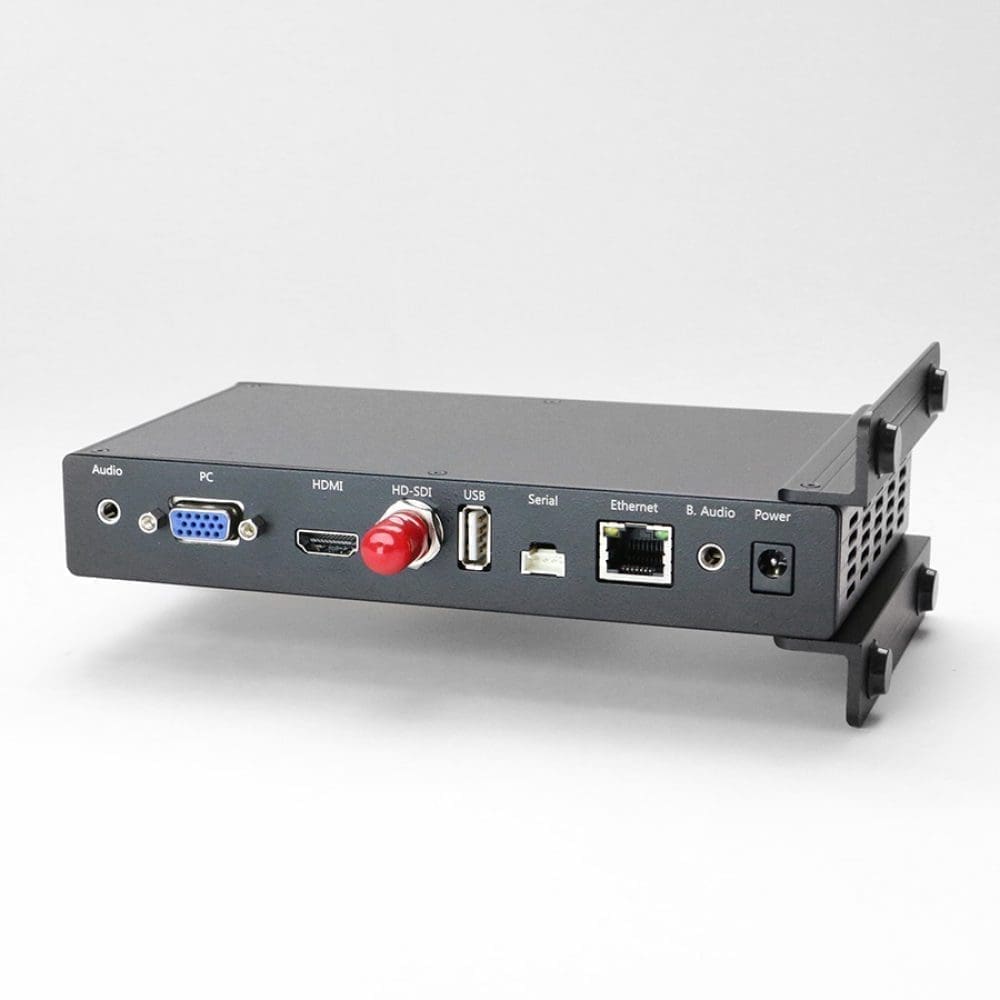

Video | Inputs | 1 x HDMI (DVI) , 1 x 3G HD-SDI, 1 x VGA |
Video | Input Combinations | Any 1 Input |
Video | Outputs | Any ! Output |
Video | Output Combinations | N/A |
Video | On Screen Display | English |
Audio | Mode | Duplex Stereo Audio |
Audio | Compression | 2 Channel PCM, DTS 5.1, AC3 5.1 |
Audio | Sample Rate | 44.1/48kHz |
Audio | Bit Rate | 16bit ADC |
Audio | Streaming | 1 Way Stereo |
Audio | Inputs | Analogue Stereo Jack (1vpp) or Embedded HDMI Audio |
Audio | Outputs | Analogue Stereo Jack (1vpp) |
Network | Interface | 10-100 Ethernet RJ45 |
Network | Protocols | IPv4, TCP, UDP, IGMP(Multicast), DHCP,HTTP,RTSP, DNS |
Network | Security | Password Protection, Ip Address Filtering |
Network | Configuration | SDK, WEB |
Data | Type | Serial 2 Way |
Data | Interface | 3.3v TTL (only if used with ANT-6000D) |
Data | Protocol | N/A |
Data | Alarm | N/A |
Data | Sensor | N/A |
Event | Sources | N/A |
Event | Actions | N/A |
Power | Supply | 12v or PoE |
Power | Adapter input volts | AC 110-240v |
Power | Adapter Output Voltage | 12v DC |
Power | Consumption | 13w |
Recording | Edge Storage | N/A |
Temperature | Operating Range | 0c – 40c |
Physical | Dimensions | 30 x 102 x 190mm |
Physical | Weight | 422g |
Physical | Housing | Black Aluminum |
General | Certifications | CE , FCC, RoHS |
General | Software | N/A |
General | Warranty | 12 Months |
General | Remote | N/A |
General | Reset | Web or external |
Control & Set Up | Set Up | Web Interface API Document |
Control | API | |
Upgrade | Firmware Upgrade | |
In the Box | Contents | Encoder , 12v Power Supply & Lead & Fixing Kit |
Power Cable/adapter | 1 of either UK/US/EU/China/Aus |
A few of the applications are:
- Encode a broadcast camera for low latency decoding on screen
- Encode a live event – where latency need to be low to avoid audio delay and lag
- Digital Signage
This product is not limited to the markets and applications described.
