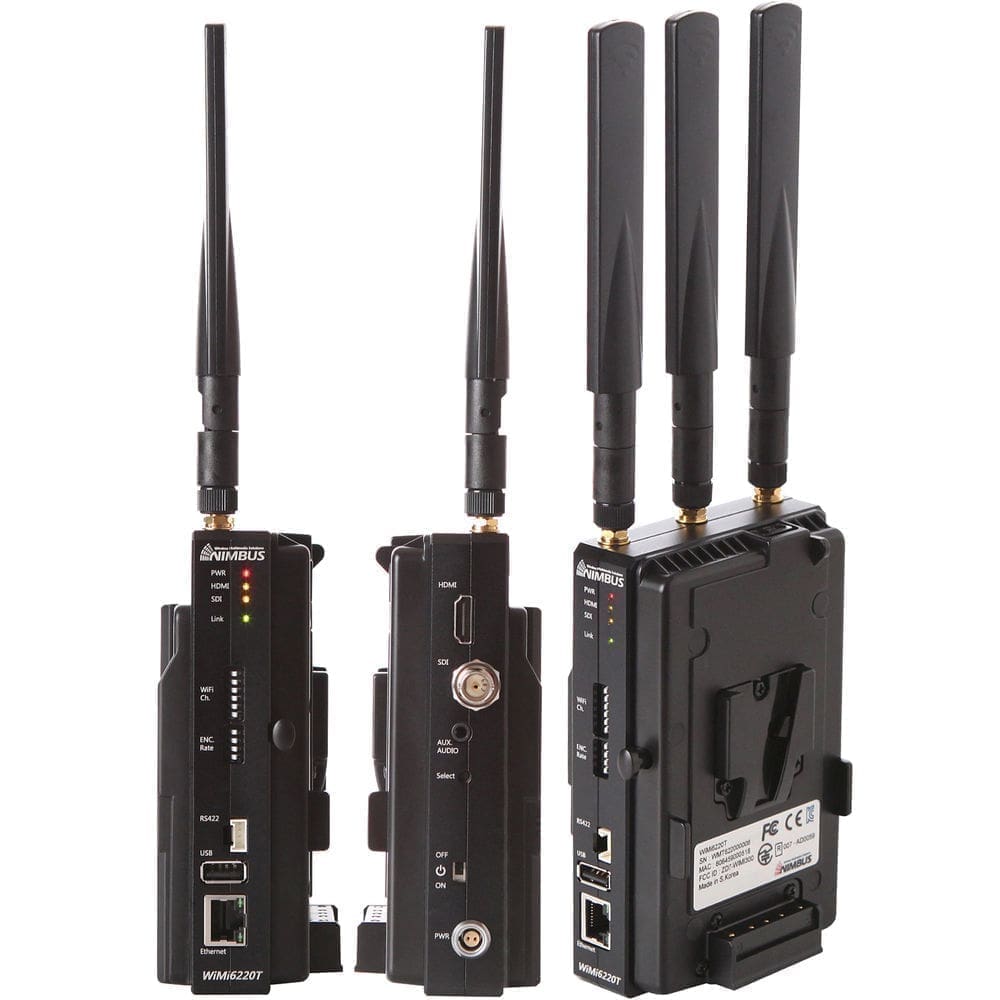

ANT-6220TR Wireless Low Latency HD 1080P60 H.264 Video Encoder & Decoder, Transmitter & Receiver Pair

0 out of 5 based on 0 customer ratings

Key Features

  • 1920 x 1080 P60 Max Resolution,
  • Wireless Encoder + Decoder
  • Low Latency 80-100ms
  • SD/HD/3G-SDI video in/out with embedded audio
  • Embedded wireless Intercom, 2-way talk-back

Product Overview

Full HD sender (Wireless or Ethernet)

– H.264 (MPEG-4 Parts10: AVC)
– Baseline-Profile with level 4.2
– Low latency of encoding/decoding: 80~100ms
– Transport 1080p60 full HD over wireless/Ethernet
– SD/HD/3G-SDI video in/out with embedded audio
– HDMI video in/out with embedded audio
– Selection of encoding rate & Wi-Fi frequencies
– Embedded wireless Intercom, 2-way talk-back
– 480i59.94, 576i/50, 720p60/59.94/50/30/29.97/25/24/23.98, – 1080i60/59.94/50, 1080p60/59.94/50/30/29.97/25/24/23.98

and PsF format

Live streaming from broadcast/DSLR camera over wireless/Internet

– Full HD live streaming server on transmitter & receiver
– RTSP streaming server (RTP/UDP)
– MPEG2TS streaming (UDP)
– Relay streaming server (RTSP/MPEG2TS) on the receiver

Save bandwidth cost with multicasting

– Maximum 2/4 receivers in wireless multicasting

Comfortable & wide coverage over wireless /Internet

– Wireless: up to maximum 1,500m (5,000 ft) @ line of sight – Wide Wi-Fi radio channel: 12 Ch @ 40MHz, 23 Ch @20MHz – Small form factor (Enclosure): 144 x 91 x 26 (mm)
– DC input range & Power: 6.8V ~ 16V, 11W (TX), 10W (RX)

page1image65130816 page1image65134848 page1image65139840

Applications

– Wireless Camera
– Live Broadcasting
– Medical Imaging
– Board Solutions for OEM

– Low-cost Full HD Encoder – Full HD Live Streaming
– RTSP/MPEG-2TS Server


  • HDMI Input/ Output
  • H.264 Low Latency 30m/s HD Video Encoder & Decoder Set
  • Up to 1920 x 1080 fps at 60 fps
  • Single stream streaming using an IP LAN ethernet connection.
  • Inputs are HDMI & DVI with adapter (not included)
  • Low Latency – 30ms glass to glass for minimal lag or latency (assumes zero monitor delay)
  • The inputs and outputs allow for signal bypassing or looping.
  • IP/ RTSP, one to one proprietary (low latency) Streams Supported
  • Powered via 12V or PoE
  • Two way audio
  • Embedded audio in  HDMI or analogue
  • RS232 2 way serial data communication
ANT-7000 Tech Specs ANT-7000E ANT-7000D
System Mode Encoder Decoder
System Standards RAPID264/RTP/RTSP/UDP/IP RAPID264/RTP/RTSP/UDP/IP
System Latency 30mS typical End to End 30mS typical End to End
Video Compression H.264 H.264
Video Profile Baseline Level 4.2 Baseline L 4.2
Video Frame Rate 1- 60fps 1- 60fps
Video Bit Rate 32kbps-40 mbps 32kbps-40 mbps
Video Mode GOP , Rand & Contra Refresh GOP , Rand & Contra Refresh
Video Bit Rate Control CBR, VBR CBR, VBR
Video Min Resolution 720 x 480 720 x 480
Video Max Resolution 1920 x 1080 plus VESA and DTV resolutions 1920 x 1080 plus VESA and DTV resolutions
Video Number of Streams Primary 1 x H.264 Primary 1 x H.264
Video Inputs 1 x HDMI V1.3 (DVI) USB x4
Video Input Combinations HDMI only N/A
Video Outputs HDMI V1.3 Output (Bypass) HDMI V 1.3 + USB control
Video Output Combinations HDMI only HDMI out
Video On Screen Display English English
Audio Mode Duplex Stereo Audio Duplex Stereo Audio
Audio Compression 2 Channel embedded Linear PCM 2 Channel embedded Linear PCM
Audio Sample Rate 48 / 44.1 kHz 48 / 44.1 kHz
Audio Bit Rate 3mb/s (uncompressed) 3mb/s (uncompressed)
Audio Streaming 1 way stereo 1 Way Stereo
Audio Inputs Embedded HDMI Audio N/A
Audio Outputs N/A Embedded HDMI Audio
Network Interface 10-100 Ethernet RJ45 10-100 Ethernet RJ45
Network Protocols IPv4, TCP, UDP, RTP HTTP IP IPv4, TCP, UDP, RTP HTTP IP
Network Security Password Protection Password Protection
Network Configuration SDK, WEB SDK, WEB
Data Type Serial 2 Way RS232 Serial 2 Way
Data Interface RS232 RS233
Data Protocol Proprietry Proprietry
Data Alarm N/A N/A
Data Sensor N/A N/A
Event Sources N/A N/A
Event Actions N/A N/A
Power Supply 12v or PoE 12v or PoE
Power Adapter input volts AC 110-240v AC 110-240v
Power Adapter Output Voltage 12v DC 12v DC
Power Consumption 6W 5W
Recording Edge Storage N/A N/A
Temperature Operating Range 0c – 40c 0c – 40c
Physical Dimensions 30 x 160 x 105 mm 30 x 160 x 106 mm
Physical Weight 320 g 321 g
Physical Housing Black Aluminum Black Aluminum
General Certifications CE , FCC, RoHS CE , FCC, RoHS
General Software N/A N/A
General Warranty 12 Months 12 Months
General Remote N/A N/A
General Reset Web or external Web or external
Control & Set Up Set Up Web Interface API Document Web Interface API Document
Control API API
Upgrade Firmware Upgrade Firmware Upgrade
In the Box Contents Encoder , 12v Power Supply & Lead Encoder , 12v Power Supply & Lead
Power Cable/adapter 1 of either UK/US/EU/China/Aus 1 of either UK/US/EU/China/Aus

A few of the applications are:

  • KVM Function -Decoder + Keyboard Mouse controls PC connected to Encoder
  • Encode a broadcast camera for low latency 30ms decoding on screen
  • Encode a live event – where latency need to be low to avoid audio delay and lag
  • Digital Signage
