ANT-7000 KVM + Ultra Low Latency (30mS) HD 1080P60 H.264 Video Encoder & Decoder, Transmitter & Receiver Pair

0 out of 5 based on 0 customer ratings
(0 customer reviews)

Key Features

  • 1920 x 1080 P60 Max Resolution,
  • Ultra Low Latency (30ms) glass to glass
  • KVM Function -Decoder + Keyboard Mouse controls PC connected to Encoder
  • H.264 Video Encoder & Decoder Pair (Transmitter & Receiver)
  • HDMI Loop + USB Output(Encoder) & HDMI Video Out + 4 x USB Hosts (Decoder) for KVM control
  • RTP/UDP/IP

Product Overview

The ANT-7000 is an Encoder + Decoder pair for streaming ultra low latency 1080P60 HDMI video in typically 30mS at typically 12MBits/sec over IP. The products can be used as general purpose Ultra Low Latency HDMI encoders and Decoders to send HDMI over any 10/100/1000 Ethernet LAN in 30mS .

Alternatively the units also feature USB inputs and Outputs which can send Keyboard and Mouse signals from the decoder to the encoder and on to the remote PC. This allows the decoder to effectively control the remote PCs Keyboard and Mouse (see diagram).

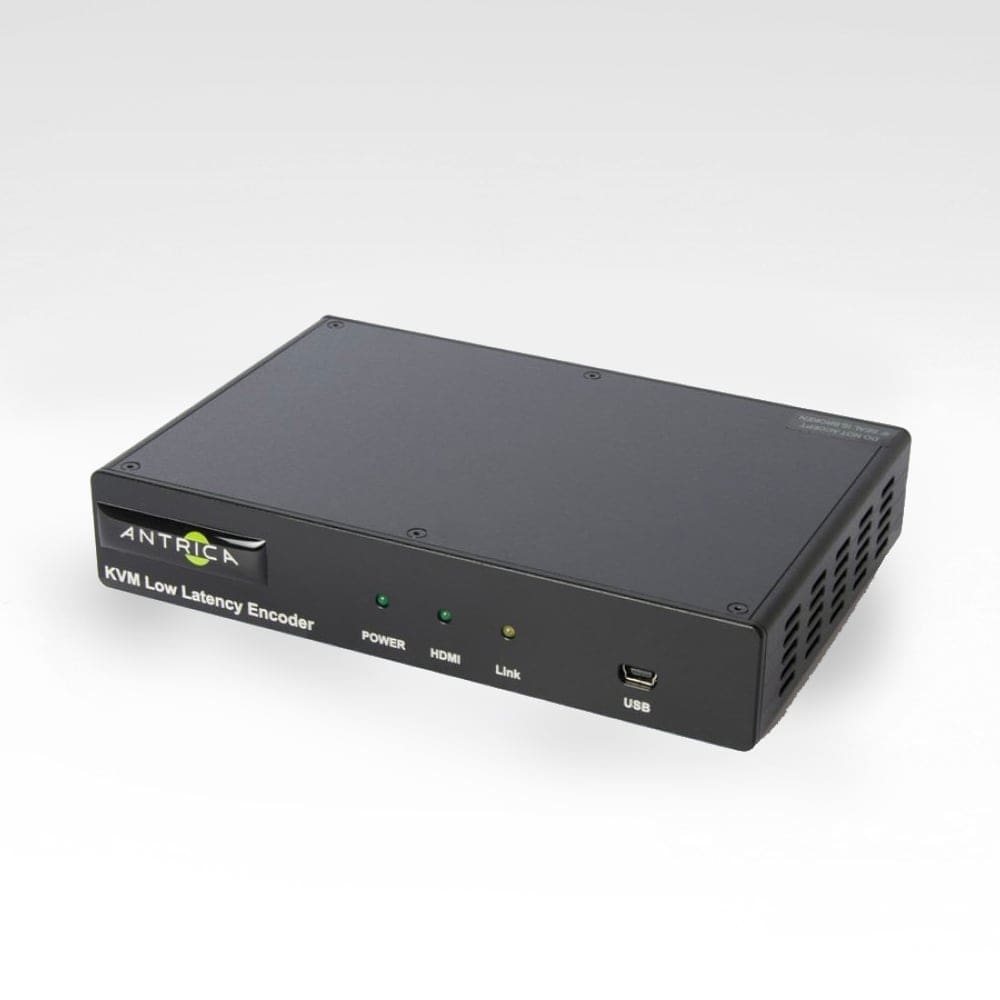

The Encoder supports HDMI input / output connections allowing the remotely located PCs monitor to be looped through the encoder. A USB port connects to the remotely located PC and mimics a keyboard and mouse.

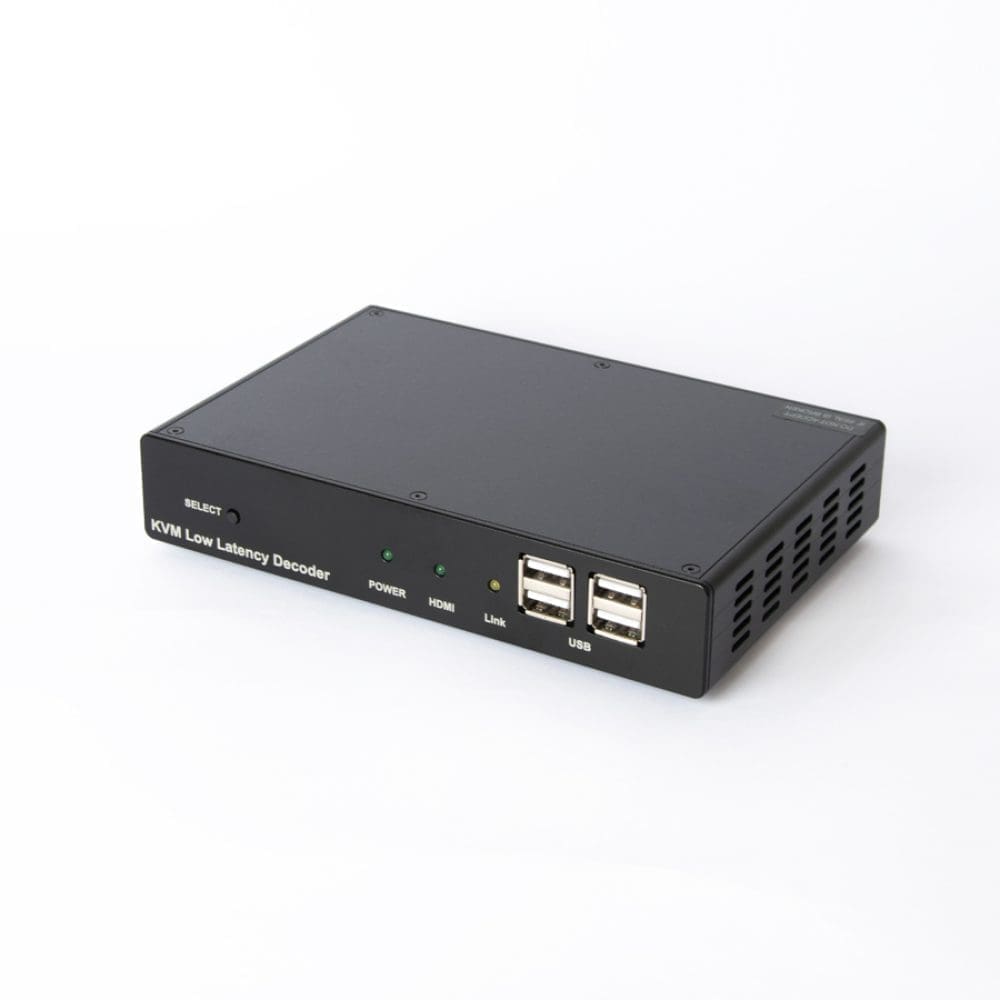

The Decoder outputs HDMI video which is connected to a monitor and displayed. Locally 4 x USB 2.0 ports allow connection to a keyboard and Mouse. Two-way RS232 ports are supported for other remote control applications

Streaming formats supported are RTP/UDP/IP and http web interface for setup.

The encoder & decoder can be powered via 12V DC or PoE and consume typically 5W each

Audio is supported with embedded audio via HDMI.

Supports DTV, VESA & 3D video resolution standards

Key applications for this product include remote KVM requirements and Low latency video over IP e.g

Remote server room KVM control & Live Video Broadcast to Big Screens (Live Events).

Please note to achieve the low latency and KVM features these products are designed to be used as a pair. For separate encoder and decoder enquiries please contact sales@antrica.com


  • HDMI Input/ Output
  • H.264 Low Latency 30m/s HD Video Encoder & Decoder Set
  • Up to 1920 x 1080 fps at 60 fps
  • Single stream streaming using an IP LAN ethernet connection.
  • Inputs are HDMI & DVI with adapter (not included)
  • Low Latency – 30ms glass to glass for minimal lag or latency (assumes zero monitor delay)
  • The inputs and outputs allow for signal bypassing or looping.
  • IP/ RTSP, one to one proprietary (low latency) Streams Supported
  • Powered via 12V or PoE
  • Two way audio
  • Embedded audio in  HDMI or analogue
  • RS232 2 way serial data communication
ANT-7000 Tech Specs ANT-7000E ANT-7000D
System Mode Encoder Decoder
System Standards RAPID264/RTP/RTSP/UDP/IP RAPID264/RTP/RTSP/UDP/IP
System Latency 30mS typical End to End 30mS typical End to End
Video Compression H.264 H.264
Video Profile Baseline Level 4.2 Baseline L 4.2
Video Frame Rate 1- 60fps 1- 60fps
Video Bit Rate 32kbps-40 mbps 32kbps-40 mbps
Video Mode GOP , Rand & Contra Refresh GOP , Rand & Contra Refresh
Video Bit Rate Control CBR, VBR CBR, VBR
Video Min Resolution 720 x 480 720 x 480
Video Max Resolution 1920 x 1080 plus VESA and DTV resolutions 1920 x 1080 plus VESA and DTV resolutions
Video Number of Streams Primary 1 x H.264 Primary 1 x H.264
Video Inputs 1 x HDMI V1.3 (DVI) USB x4
Video Input Combinations HDMI only N/A
Video Outputs HDMI V1.3 Output (Bypass) HDMI V 1.3 + USB control
Video Output Combinations HDMI only HDMI out
Video On Screen Display English English
Audio Mode Duplex Stereo Audio Duplex Stereo Audio
Audio Compression 2 Channel embedded Linear PCM 2 Channel embedded Linear PCM
Audio Sample Rate 48 / 44.1 kHz 48 / 44.1 kHz
Audio Bit Rate 3mb/s (uncompressed) 3mb/s (uncompressed)
Audio Streaming 1 way stereo 1 Way Stereo
Audio Inputs Embedded HDMI Audio N/A
Audio Outputs N/A Embedded HDMI Audio
Network Interface 10-100 Ethernet RJ45 10-100 Ethernet RJ45
Network Protocols IPv4, TCP, UDP, RTP HTTP IP IPv4, TCP, UDP, RTP HTTP IP
Network Security Password Protection Password Protection
Network Configuration SDK, WEB SDK, WEB
Data Type Serial 2 Way RS232 Serial 2 Way
Data Interface RS232 RS233
Data Protocol Proprietry Proprietry
Data Alarm N/A N/A
Data Sensor N/A N/A
Event Sources N/A N/A
Event Actions N/A N/A
Power Supply 12v or PoE 12v or PoE
Power Adapter input volts AC 110-240v AC 110-240v
Power Adapter Output Voltage 12v DC 12v DC
Power Consumption 6W 5W
Recording Edge Storage N/A N/A
Temperature Operating Range 0c – 40c 0c – 40c
Physical Dimensions 30 x 160 x 105 mm 30 x 160 x 106 mm
Physical Weight 320 g 321 g
Physical Housing Black Aluminum Black Aluminum
General Certifications CE , FCC, RoHS CE , FCC, RoHS
General Software N/A N/A
General Warranty 12 Months 12 Months
General Remote N/A N/A
General Reset Web or external Web or external
Control & Set Up Set Up Web Interface API Document Web Interface API Document
Control API API
Upgrade Firmware Upgrade Firmware Upgrade
In the Box Contents Encoder , 12v Power Supply & Lead Encoder , 12v Power Supply & Lead
Power Cable/adapter 1 of either UK/US/EU/China/Aus 1 of either UK/US/EU/China/Aus

A few of the applications are:

  • KVM Function -Decoder + Keyboard Mouse controls PC connected to Encoder
  • Encode a broadcast camera for low latency 30ms decoding on screen
  • Encode a live event – where latency need to be low to avoid audio delay and lag
  • Digital Signage

This product is not limited to the markets and applications described.
