ANT-SB1080P60X30 3G HDSDI 30X Zoom IP Camera ONVIF Profile S Sport Indoor Camera HD
Please note – we are no longer actively selling a dedicated range of IP cameras, we may have a few models available in our warehouse – please feel free to email us sales@antrica.com with your requirement, currently the only ‘active’ products we are selling are the ANT-ZB1200 zoom block camera with integrated encoder and ANT-SP1080P60X20 Indoor Conference Camera.
Key Features
- 1920 x 1080P60 Max Resolution
- ONVIF VMS – Profile S Compatible Camera
- 3G HD-SDI Output low latency raw video
- Optical X30 Zoom
Product Overview

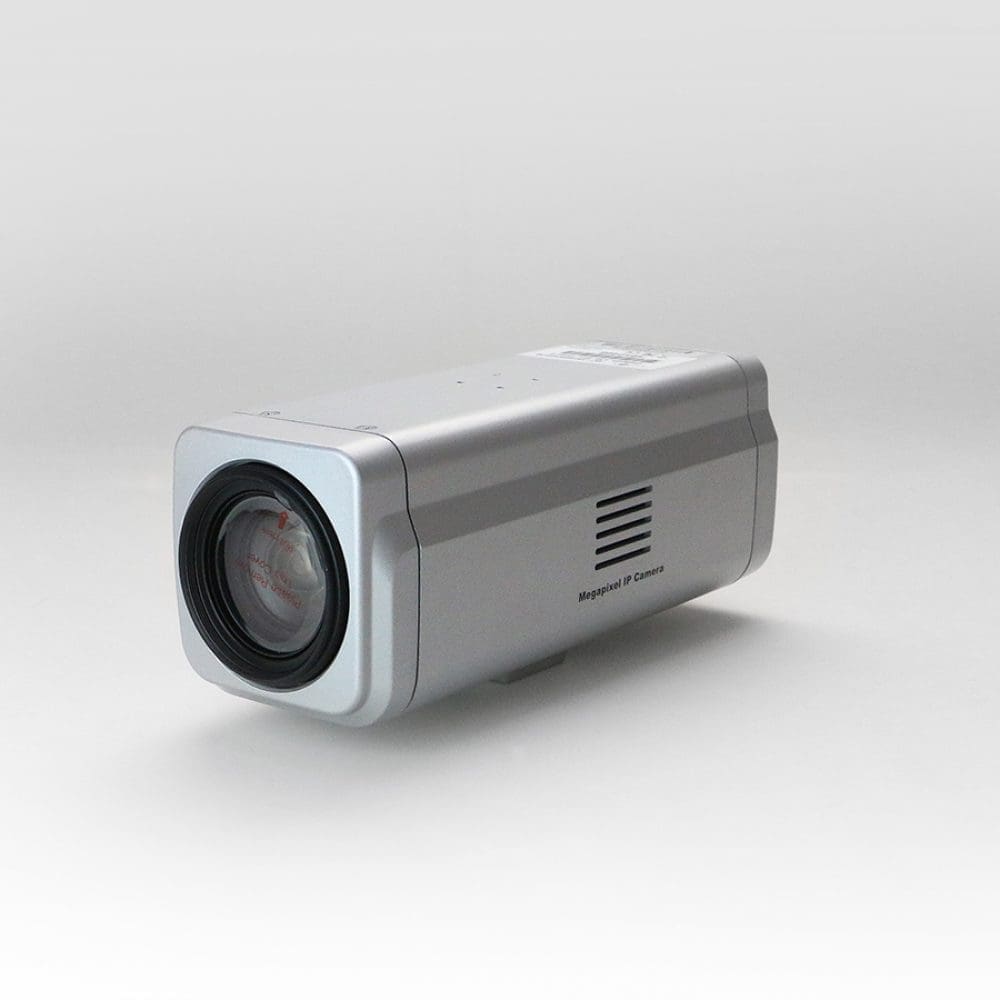

ANT-SB1080P60X30 3G HDSDI Box IP Camera ONVIF Profile S Sport Indoor Camera is the latest generation 1080P60 box camera offering 60 Frames Per Second performance at 1920 x 1080 plus 3G HD-SDI video output. Offering an analogue zoom of 30X this camera is ideal for Sports like cricket where a single fixed view is required but the ability to pan in and out without loss of quality. It is suitable for indoor use or integration into a weather proof housing.
The output is 3G HD-SDI with full ONVIF profile S control for integration with VMS software, such as Milestone / Exac etc.
Compression is H.264 (MJPEG or RTSP) , profile Baseline & High in GOP with streams over LAN / WAN.

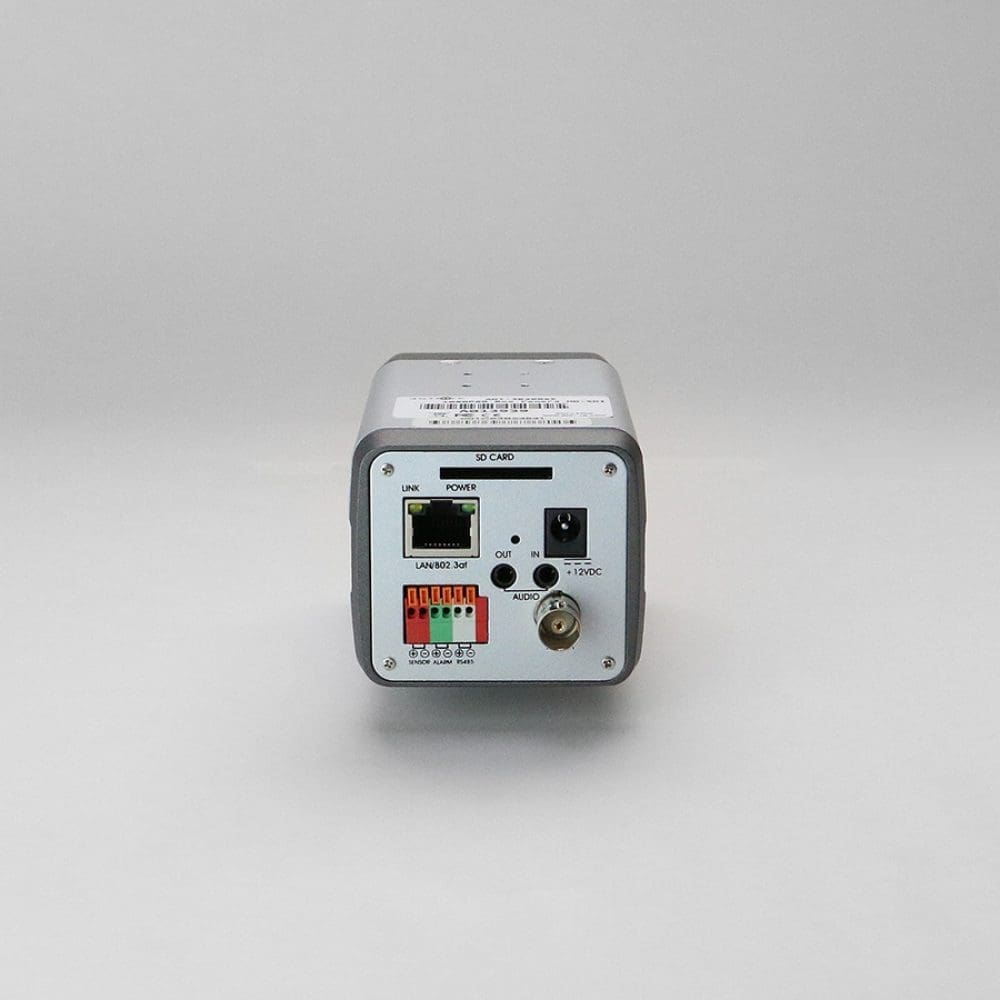

The camera has on board recording via edge storage SD card for monitoring and litigation purposes & can be powered via 12V or PoE.
AAC and G711 two way audio is supported with embedded audio in 3G HD-SDI .
RS232/484 2 way serial data communication for Zoom Control also with motion detection , sensor and alarm I/O.
Zoom can be controlled via an ONVIF VMS.
Dimensions: 74 x 73 x 188
Weight: 920g
Housing: Aluminum
- 3G HD-SDI Output
- ONVIF H.264 HD Video Indoor Camera
- Up to 1920 x 1080 at 60 frames per sec encode
- Optical X30 Zoom
- ONVIF profile S control for integration with VMS software, such as Milestone / Exac etc.
- The inputs and outputs allow for signal bypassing or looping.
- MJPEG or RTSP Streaming
- On board edge recording via SD card
- Powered via 12V or PoE.
- AAC and G711 two way audio
- RS232/484 2 way serial data communication
- Motion detection, Sensor and alarm I/O.
| System | Mode | Encoder Camera |
| System | Standards | ONVIF Profile S, rtsp rtmp mpeg-ts |
| System | Latency | End to End >150mS (system dependant) |
| Camera | Image Sensor | 1 / 2.8″ Exmore SMOS |
| Camera | Lens Type | AF, Auto IRIS Zoom Module |
| Camera | Lens Mount | PTZ Box |
| Camera | Optical Zoom | X30 |
| Camera | Digital Zoom | X12 |
| Camera | Focal Length | f = 4.6 – 129mm |
| Camera | Appature Ratio | F1.6 – F4.7 |
| Camera | Min Illumination | 0.5 LUX (Colour) |
| Camera | Shutter Speed | 1/1 to 1/10000s |
| Camera | Privacy Masking | 4 Reigons |
| Camera | Flip Mode | H + V |
| Camera | Image Enhancement | AE,AWB,AGC,TDN,DNR,BLC,ACCE,WDR,DSS,EIS,DEFOG |
| Camera | IR LED’s | N/A |
| Camera | Angle of View | 65 degrees to 3.2 degrees |
| Video | Compression | H.264 (MJPEG) |
| Video | Profile | Baseline & High |
| Video | Frame Rate | 1-60 fps |
| Video | Bit Rate | 100kbits/sec to 20MB/s |
| Video | Mode | GOP VBR & CBR |
| Video | Min Resolution | 640 x480 |
| Video | Max Resolution | 1920 x 1080 |
| Video | Number of Streams | 4 h.264 (+MJPEG) |
| Video | Inputs | N/A |
| Video | Input Combinations | N/A |
| Video | Outputs | 3G HD-SDI |
| Video | Output Combinations | N/A |
| Audio | Mode | full duplex stereo |
| Audio | Compression | G711 + AAC |
| Audio | Sample Rate | G711=32Khz , AAC= 32kHz |
| Audio | Bit Rate | G711=32/64kb/s, AAC= 64-256kb/s |
| Audio | Streaming | 2 way stereo |
| Audio | Inputs | analogue jack |
| Audio | Outputs | analogue jack |
| Network | Interface | 10-100 Ethernet |
| Protocols | IP v4/v6 , TCP, UDP, IGMP, DHCP, HTTP, HTTPS, RTP, RTSP, FTP, SNMP, SMTP, UPnP,WS-Discovery, 0 CONFIG, DDNS | |
| Security | Password Protection | |
| Configuration | SDK, ONVIF, WEB | |
| Data | Type | Serial 2 Way |
| Interface | RS232, RS485 | |
| Protocol | Pelco D + others | |
| Alarm | 2 Output | |
| Sensor | 2 Input | |
| Power | Supply | PoE or 12v |
| Adapter input volts | AC 110-240v | |
| Output Voltage | 12v DC | |
| Consumption | 20w | |
| Recording | Edge Storage | SD Slot |
| Temperature | Operating Range | -10 + 50C |
| Physical | Dimensions | 74 x 73 x 188 |
| Weight | 920g | |
| Housing | Aluminum | |
| General | Certifications | CE , FCC, RoHS |
| Software | IP Finder + VMS | |
| Warranty | 12 Months | |
| Remote | N/A | |
| Reset | Web or external | |
| Control & Set Up | Set Up | Web Interface API Document |
| Control | Web or ONVIF | |
| Upgrade | Firmware Upgrade | |
| In the Box | Contents | Camera , 12v Power Supply |
| Power Cable/adapter | UK/US/EU/China/Aus |
A few of the applications are:
- Send CCTV video to VMS for recording / litigation purposes while with PTZ enabling full control
- Send video of sport to training / analysis software – with full PTZ control over network
This product is not limited to the markets and applications described.
